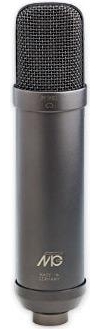

The M 990 vacuum tube condenser microphone is well-suited for difficult radio play productions as well as a supporting microphone for orchestra recordings.
The M 990 is renowned for its high sensitivity and excellent signal-to-noise ratio. It combines modern large diaphragm capsule technology with the typical full-bodied sound of tube microphones that are preferred by vocalists and soloists.
The new pressure gradient transducer of the M 990 uses a large diameter gold-plated plastic diaphragm. The vacuum tube preamplifier is equipped with a pentode working as a triode selected for its sonic characteristics.
The N 920.1 power supply provides the operating voltage for the vacuum tube condenser microphone. It can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz.
For cable lengths over 50 meters it is recommended to have your service provider set the heater voltage of the power supply to 5.8 volts. The N 920.1 is equipped with an on/off-switch, a 7-pin Tuchel connector that powers the microphone and a 3-pin XLR connector with integrated line voltage selector.
The M 990 is packed in a wooden case and comes with power supply , connection cable C 92.1 and elastic suspension EA 92.
The microphone is available in a dark bronze finish.
High sensitivityExcellent signal-to-noise ratioModern M930 capsuleLarge diameter gold-plated plastic membraneTube preamplifier with EF86
Polar pattern: cardioid
Acoustical operating principle: Pressure gradient transducer
Frequency range: 40 ... 18000 Hz
Sensitivity at 1 kHz: 28 mV / Pa
Rated impedance: 200
Equivalent loudness level due to inherent noise:
CCIR 468-4 (qps): 24 dBDIN EN 60651: 13 dB - A
Signal-to-noise ratio (re 1 Pa at 1 kHz):
CCIR-weighted: 70 dBA-weighted: 81 dB
Max. SPL for THD 0,5 %: 119 dB
Total dynamic range of the microphone amplifier: 106 dB
DC power supply: 120 V
Anode current: 1 mA
Heater voltage: 5,8 V
Heater current: 200 mA
Tube: EF 86
Output connector: 7- pin Tuchel C 70 / A
Weight: 400 g
Dimensions (L x Ø ): 185 x 43 mm
Manufacturer Part Number : 211179
