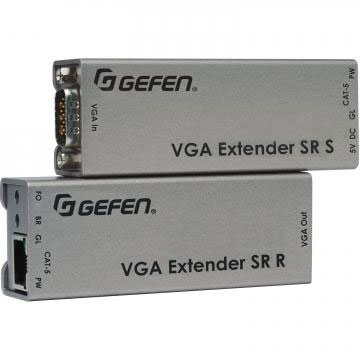

Gefen EXT-VGA-141SRN

The EXT-VGA-141SRN Extends any VGA Monitor up to 150 feet using a single CAT-5 Cable

his product allows users to extend video signals far beyond the A/V rack, up to 150 feet or 45 meters. Industry-standard CAT-5e cable is used for the extension.
Features
  • Extends any VGA or high definition component display up to 150 feet (45 meters)
  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • Specifications
  • Video Amplifier Bandwidth: 350 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input Sync Signal: 5 volts p-p (TTL)
  • Horizontal Frequency Range: 15-70 KHz
  • Vertical Frequency Range: 30 - 170 Hz

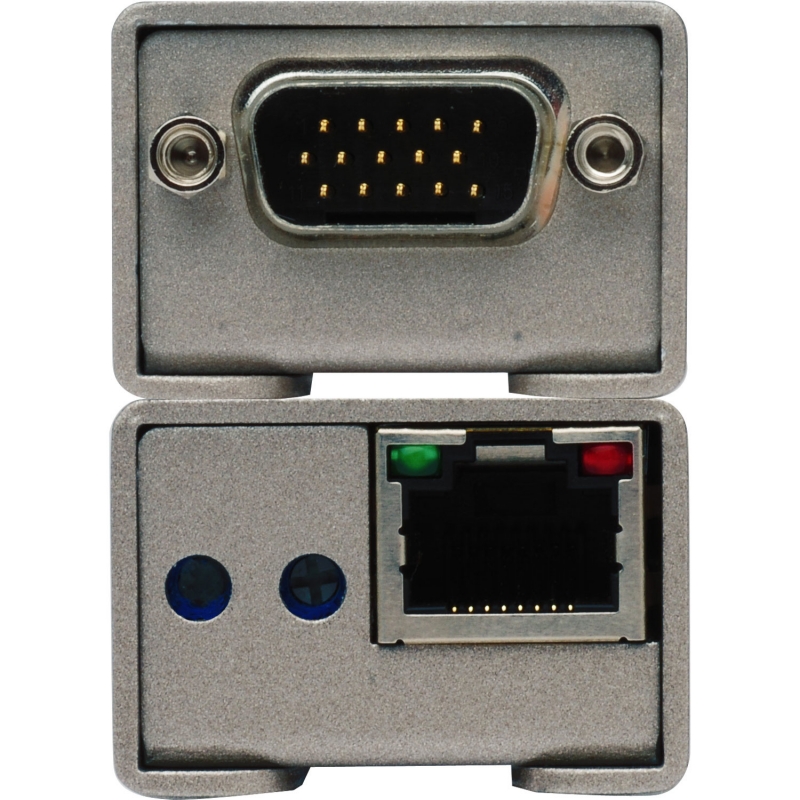

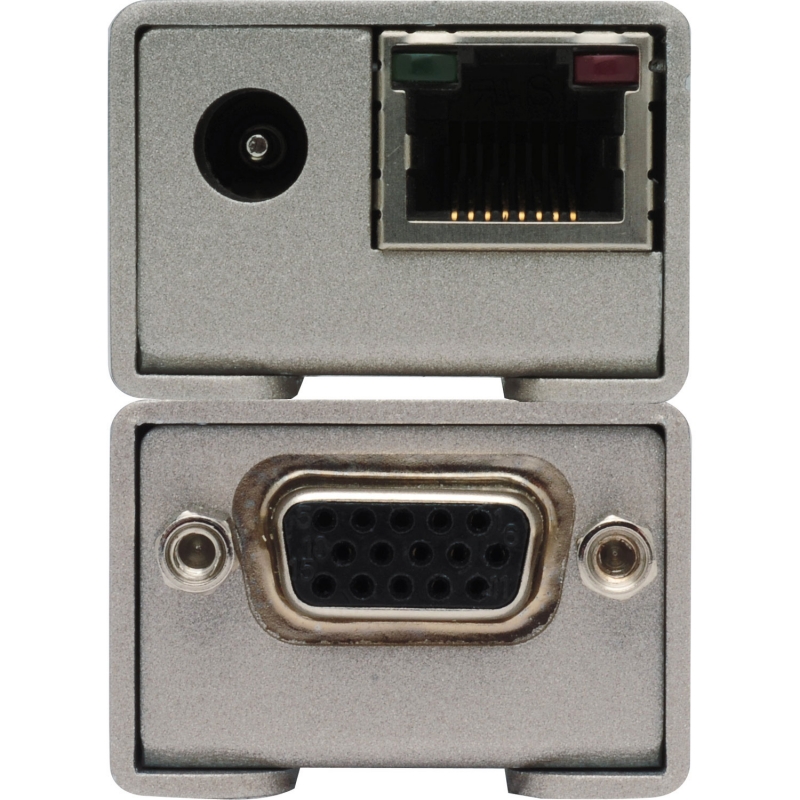

  • Video In: HD-15 male
  • Video out:HD-15 female
  • Link Connector:RJ-45 Shielded
  • Power Supply:5V DC
  • Power Consumption: 5 Watts (max.) per power supply
  • Dimensions: 3.7" W x 1.8" H x 1.4" D each module
  • Shipping Weight: 2 lbs.
  • Reviews
    Price
    $274.00
    $262.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the EXT-VGA-141SRN, please visit the website of Gefen
