4x4 Matrix for HDMI 4Kx2K. Route 4 Ultra Hi-Def sources to 4 Ultra HD dsiplays with FST, 3DTV and 4K X 2K Ultra Hi-Def support

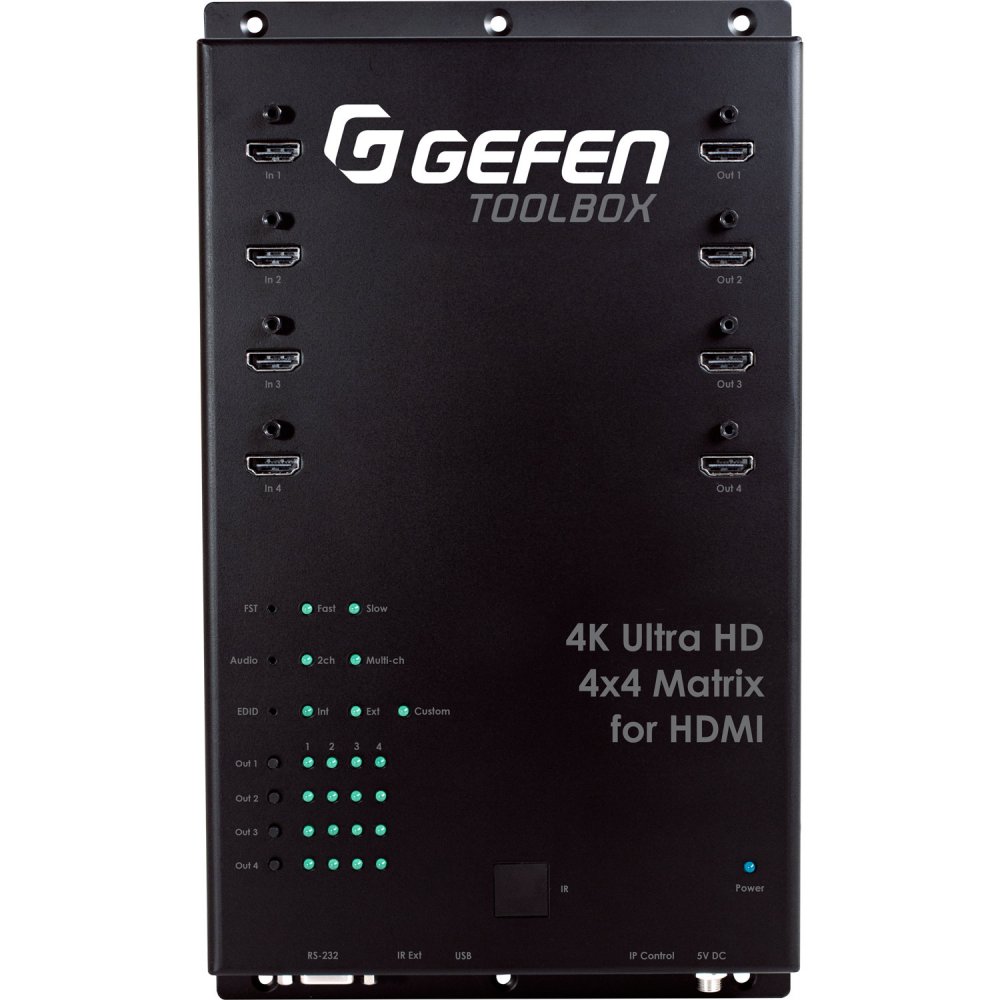

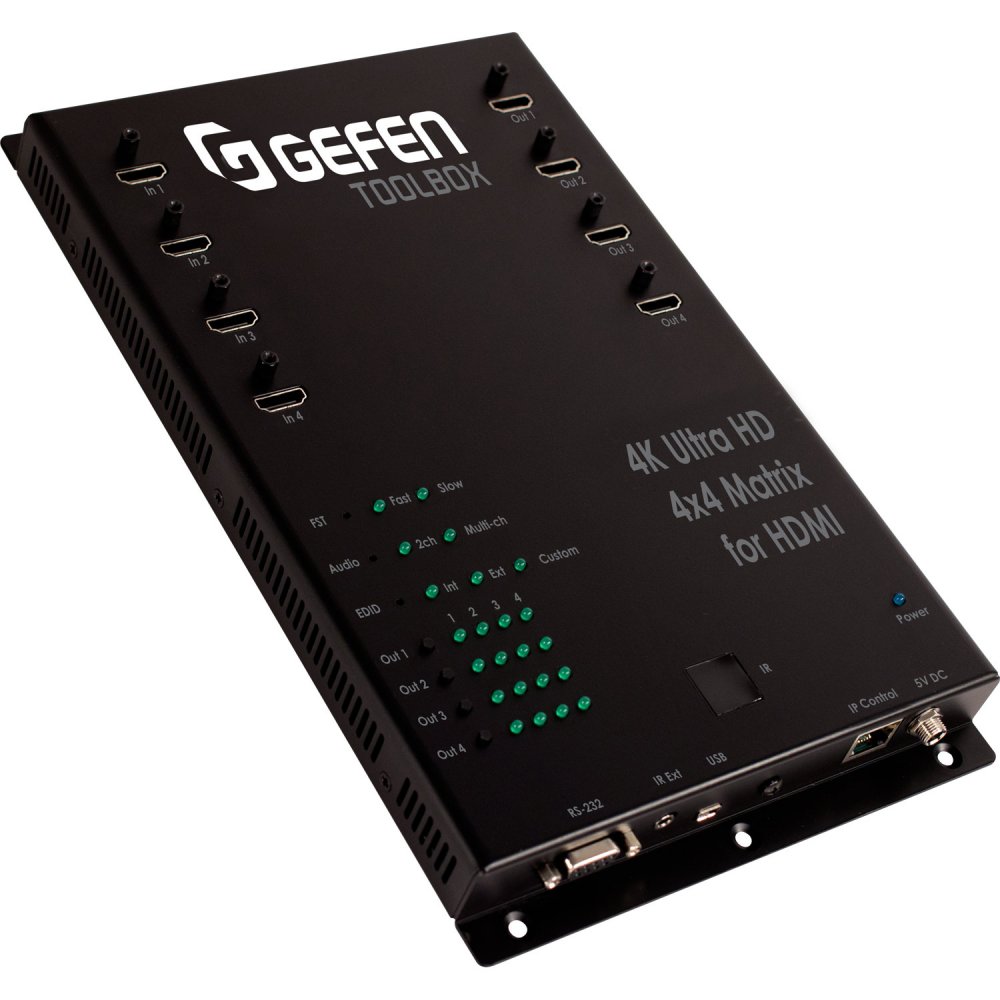

The Gefen GTB-HD4K2K-444-BLK ToolBox 4-4 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K or 1080p Full HD sources to be routed to up to four Ultra HD displays. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.
Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920-1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.
multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.
Maximum Pixel Clock: 300 MHzHDMI Input Connectors: (4) Type A 19-pin female, lockingHDMI Output Connectors: (4) Type A 19-pin female, lockingUSB Port: (1) Mini-BRS-232 serial port: (1) DB-9, femaleEthernet (IP Control) Port: (1) RJ-45FST Selector: (1) tact-type, recessed push-buttonAudio Selector: (1) tact-type, recessed push-buttonEDID Selector: (1) tact-type, recessed push-buttonRouting Selectors: (2) tact-type push-buttonsPower Indicator: (1) LED, blueFST Indicators: (2) LED, greenAudio Indicators: (2) LED, greenEDID Indicators: (3) LED, greenRouting Indicators: (8) LED, greenIR Sensor: (1), on front panelIR Extender Port: (1) 3.5mm mini-stereo jackDC Power Connector: (1) Locking typePower Supply: 5V DCPower Consumption: 13 Watts (max.)Operating Temperature: +32 to 104 °F (0 to +40 °C)Dimensions (W x H x D): 6.9? x 11.9? x 1.0? (175mm x 302mm x 26mm)Shipping Weight: 6 lbs. (2.7 kg)
Length: 14.5 (Inches)
Width: 12 (Inches)
Height: 4.85 (Inches)
Weight: 3.6 (Lbs)
In The Box
4-4 Matrix for HDMI 4Kx2K (GTB-HD4K2K-444-BLK)(1)DB-9 Cable (CAB-DB9-6MF)(1)IR Remote (RMT-16IRN)(1)5V DC Power Supply (EXT-PS54AULPN-6)(1)AC Power Cord (CAB-POWERCORD-XX)(1)Quick-Start Guide (QSG-GTB-HD4K2K-444)(1)
