4K Ultra HD 8x8 Matrix for HDMI. Route 8 4K Ultra HD sources to 8 diplays with HDCP, 3DTV and 7.1 channel LPCM and HBR support

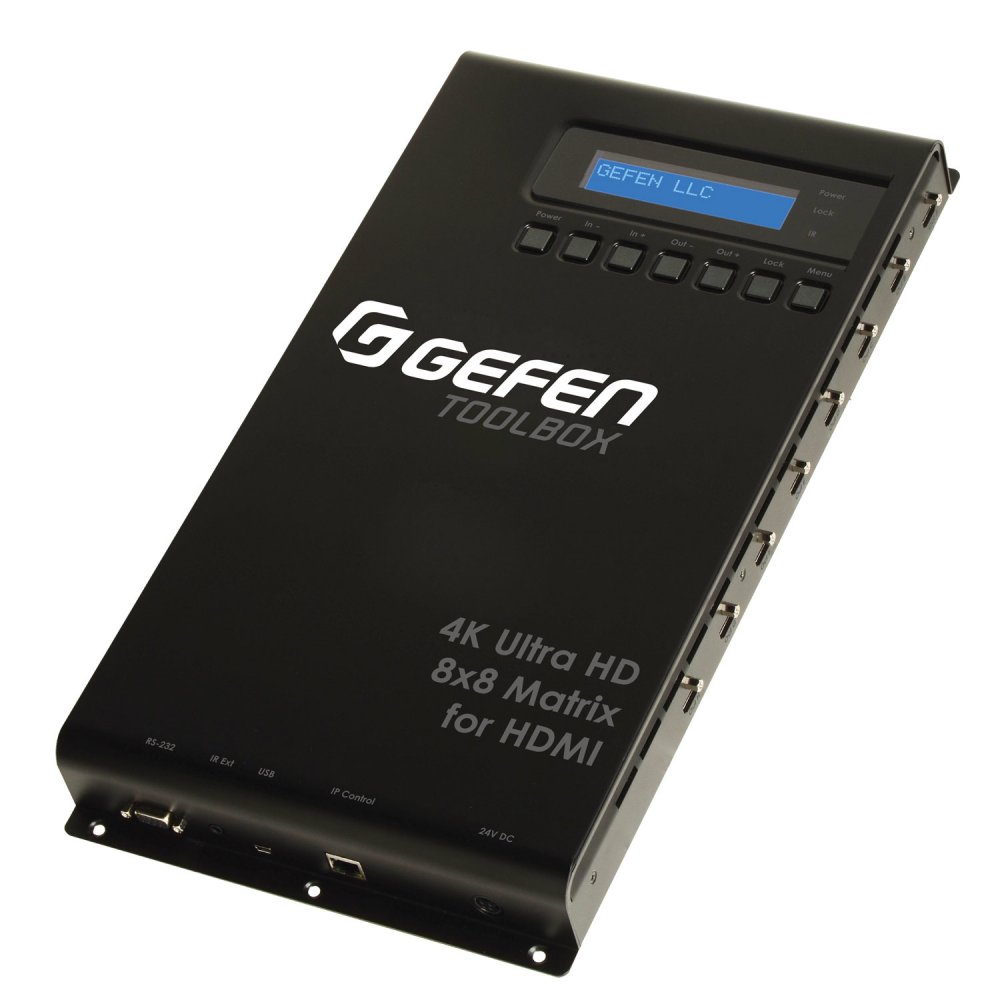

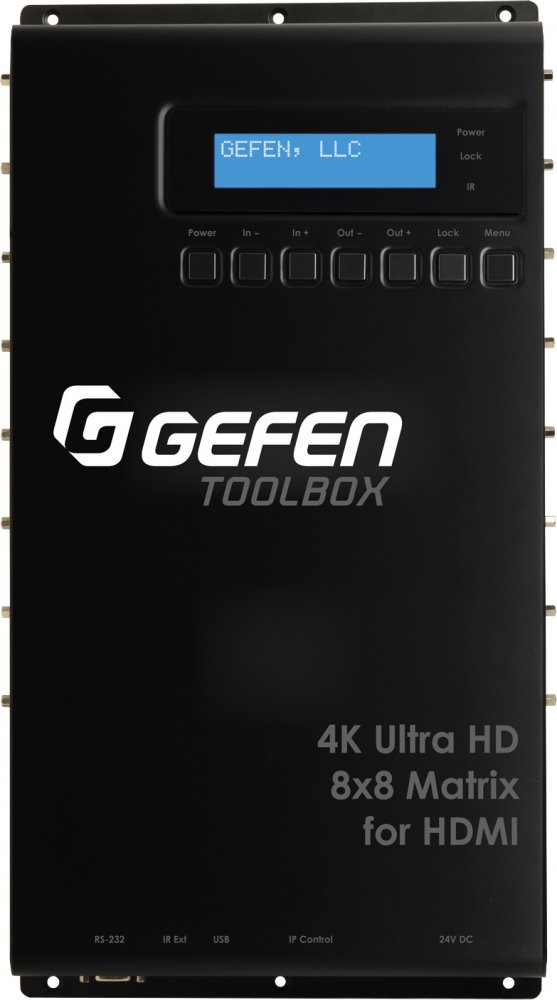

The Gefen GTB-HD4K2K-8482-BLK ToolBox 8-8 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. This HDCP 1.4 compliant matrix routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. The Gefen Syner-G software?s Discovery and Show-Me features simplify initial IP configuration of this matrix. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and the Gefen intuitive and easy-to-use web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings.
Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920-1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.
multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.
Maximum Pixel Clock: 300 MHzHDMI Input Connectors: (6) Type A 19-pin female, lockingHDMI Output Connectors: (2) Type A 19-pin female, lockingDigital Audio Outputs: (2) TOSLINKUSB Port: (1) Mini-BRS-232 serial port: (1) DB-9, femaleEthernet (IP Control) Port: (1) RJ-45 jackFST Selector: (1) tact-type, recessed push-buttonAudio Selector: (1) tact-type, recessed push-buttonEDID Selector: (1) tact-type, recessed push-buttonRouting Selectors: (2) tact-type push-buttonsPower Indicator: (1) LED, blueFST Indicators: (2) LED, greenAudio Indicators: (2) LED, greenEDID Indicators: (3) LED, greenRouting Indicators: (12) LED, greenIR Sensor: (1), on front panelR Extender Port (Receiver): (1) 3.5mm mini-stereo jackDC Power Connector: (1) Locking typePower Supply: 5V DCPower Consumption: 20 Watts (max.)
