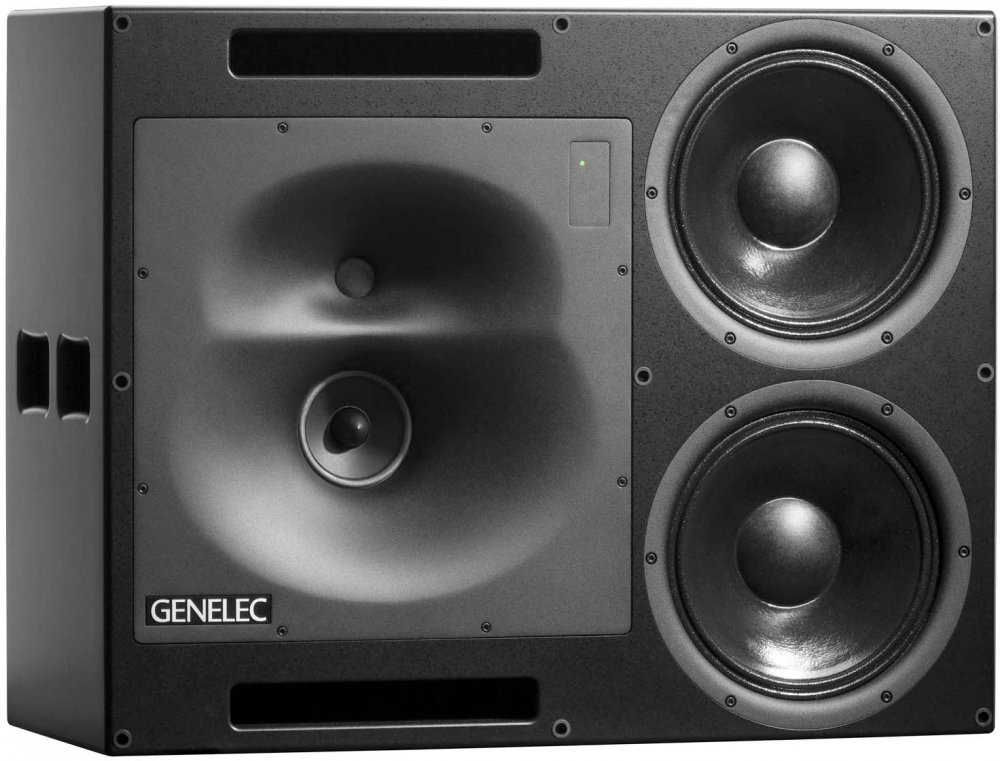

The 1234A SAM studio monitor is a high performance tri-amplified main monitoring system featuring AutoCal and GLM technologies.
Designed to achieve accurate and powerful sound reproduction in demanding recording and mixing environments, the Genelec 1234A SAM system and its Remote Amplifier Module RAM XL represents the most modern technology in high performance monitoring. Typically flush mounted, the 1234A SAM studio monitor features a large Directivity Control Waveguide (DCW) which provides very precise on- and off-axis imaging and neutral sound reproduction. State-of-the art AutoCal and GLM technologies allows to automatically align every monitor in terms of level, timing, and equalisation of room response anomalies.
The 1234A is the main monitoring solution for music recording studios, film and video post-production facilities as well as mastering suites.
Configuration: 2 x 12" LF, 5" MF, 1" metal dome HF
Amplifier Power per Channel: 2 x 750W LF + 400W MF + 250W HF
Input Format: Analog, AES/EBU
Frequency Response: 34 - 20,000Hz (±2.0 dB)
Maximum SPL: @1 m >125 dB
Audio Connectors: Analog input: XLR, Digital input: AES/EBU single or dual wire, Digital thru: AES/EBU single or dual wire
RAM XL: 3U / 19 in.
Dimensions: 700 x 890 x 383 mm (27916 x 35 x 15 in.)
Weight: 84 kg (186 lb)
