Genelec 8330APM

Ideal for facilities that need power and adaptability in a compact package, the 8330A offers colour-free reproduction and the world's most advanced Smart monitoring solution

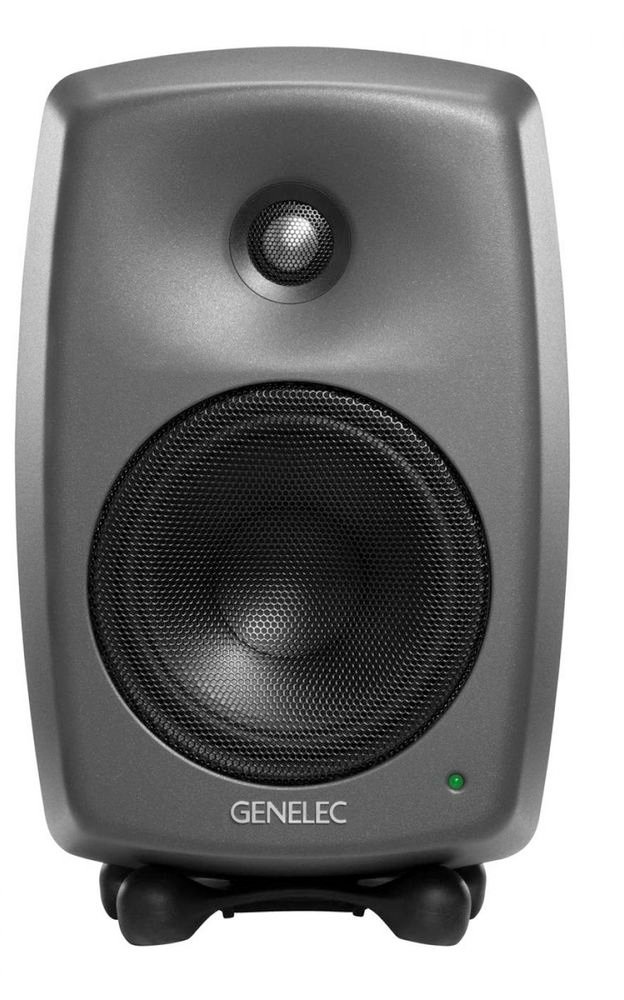

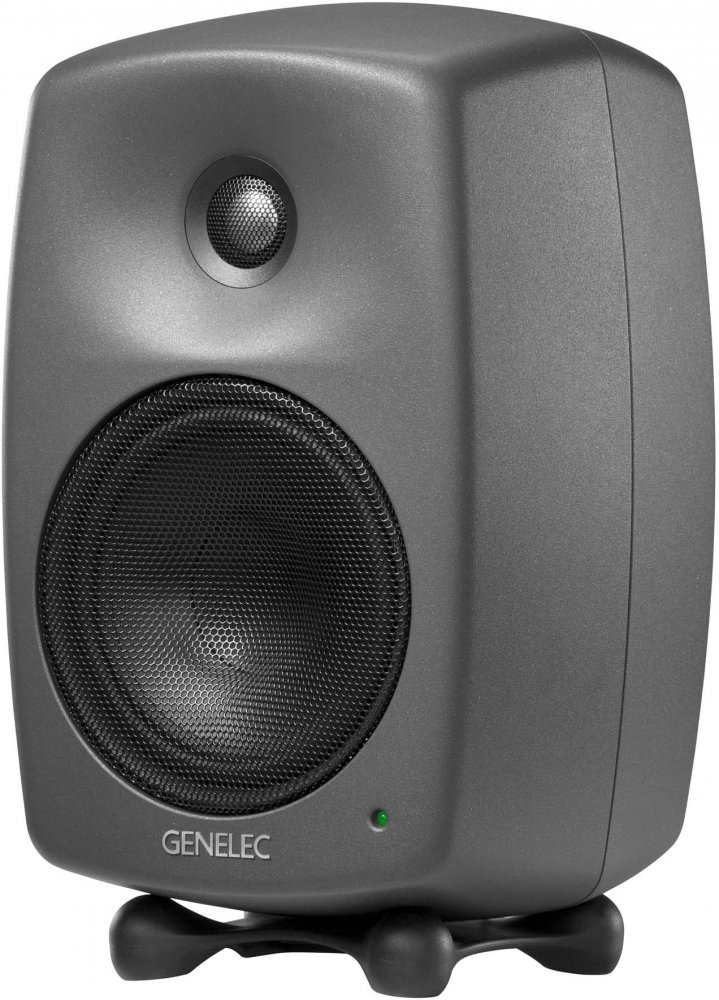

The choice of professionals for whom power and flexibility go hand-in-hand, the 8330A is as acoustically impressive as it is Smart, courtesy of Smart Active Monitoring (SAM) technology. Housing a 5 inch woofer and 3/4 inch tweeter, the Class D bi-amplified, two-way Smart monitor is compact enough to fit into studios where space is at a premium, yet still capable of exceeding even the most demanding client expectations.

Colour-free accuracy is delivered by the Minimum Diffraction Enclosure (MDE), while the Directivity Control Waveguide (DCW) ensures precise frequency reproduction both on- and off-axis. The 8330A is also built to adapt and assist. Genelec Loudspeaker Manager (GLM) 2.0 software delivers functions including AutoCal, ensuring your monitoring system is perfectly calibrated to your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. Finally, with GLM 2.0 you can manage up to 30 Smart monitors and subwoofers, easily creating fully recallable setups from stereo to immersive audio.
Features
  • Smart Active Monitor (SAM) Systems
  • Directivity Control Waveguide (DCW) Technology
  • Minimum Diffraction Enclosure (MDE) Technology
  • Reflex Port Design
  • Optimized Amplifiers
  • Active Crossovers
  • Protection Circuitry
  • Intelligent Signal Sensing (ISS) Technology
  • Iso-Pod Stand
  • Versatile Mountings
  • Specifications
    Frequency range -6 dB: 45 Hz - 23 kHz
    Accuracy of frequency response: ±1.5 dB (58 Hz - 20 kHz)
    Maximum short term sine wave acoustic output on axis in
    half space, averaged from 100 Hz to 3 kHz: > 104 dB SPL
    Maximum long term RMS acoustic output in same conditions
    with IEC weighted noise (limited by driver unit protection
    circuit): > 96 dB SPL
    Maximum peak acoustic output per pair, at 1 m distance with
    music material: > 110 dB
    Self generated noise level in free field on axis: < 5 dB (A-weighted)
    Harmonic distortion at 85 dB SPL on axis: 50...100 Hz < 2 %, >100 Hz < 0.5 %
    Drivers (Both drivers are magnetically shielded):
    Woofer: 130 mm (5 in) cone
    Tweeter: 19 mm (3/4 in) metal dome
    Weight: 5.5 kg (12.1 lb)
    Dimensions:
    Height including Iso-Pod table stand: 299 mm
    Height without Iso-Pod table stand: 285 mm
    Width: 189 mm
    Depth: 178 mm
    Reviews
    Price
    $1149.00
    $856.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the 8330APM, please visit the website of Genelec
