MPN #DARK88MKII

$2571.00

Financing available
Free shipping in Canada. Conditions

1u rack mount 8 input/output XLR breakout box with dual CAT5 and optical DANTE interface



The DARK88 MKII is a versatile break in/out box for sending/receiving analogue audio to/from a network utilising the Dante audio over IP (AoIP) protocol.

In total there are 8 channels of audio sent from the DARK88 MKII into the network. The DARK88 MKII has 8 of analogue electronically balanced audio inputs on Neutrik XLRs.

Simultaneously there are 8 channels of audio being received from the network by the DARK88 MKII and these incoming circuits are provided as outputs from the DARK88 MKII in analogue.

Network sample rates of up to 192KHz are accommodated seamlessly within the DARK88 MKII.

Being designed for resilient broadcast applications the DARK88 MKII features both redundant power supplies and redundant Dante network links. Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparent redundant link system which means that if the DARK88 MKII lost its primary link circuit the secondary link would automatically take over with no loss of audio.

The primary and secondary network interfaces are routed internally via a network switch. It is possible to set this switch to work as a traditional network switch instead of the default redundant mode. This means that there would be just one link to the Dante network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices, once set up, DARK88 MKII units can be directly connected with each other with no external network hardware.

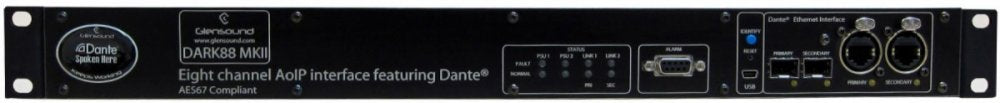

On the front panel, LEDs indicate the status of the 2 power supplies and the 2 network links. GPO status outputs are also provided for external indication of the power supply & network status.

Network connections are placed on the front panel of the DARK88 MKII in order that the network cables (or fibres) match those of a rack mounted professional network switch, making installation and tracing interconnecting cables easy. Fibre connections are via SFP slots, meaning that users can select their own preferred fibre type & connector style by installing their own fibre SFP modules (a selection of modules is available from Glensound if preferred).

The DARK88 MKII features the Brooklyn module from Audinate which is AES67 compliant.
  • 8 audio inputs and 8 audio outputs on XLR connections
  • Redundant CAT5 and fibre network connections
  • Up to 192kHz sampling
  • Connection to Dante network for control and configuration
  • Front Panel GPO status outputs
  • Connects to any Dante compatible unit from other manufacturers
  • AES67 Compliant
  • 12 VDC power option
  • Twin redundant power supply
  • AUDIO
    Maximum Input Level: +18dB
    Maximum Output Level: +18dBu
    Frequency Response: >-0.25dB 20Hz to 22kHz
    Input Impedance: >20k Ohms
    Output Impedance: <=50 Ohms
    Distortion: (REF +8dBu output)
    0.008% @ 100Hz
    0.007% @ 1kHz
    0.005% @ 10kHz
    Noise: -93dB@line up A weighted RMS
    Dynamic Range: 111dB
    Interchannel Crosstalk: >109dB
    Input And Output Type: Electronically balanced (can be wired unbalanced)
    Network Sample Rates: 32 - 192kHz

    POWER
    Power source: 2 x mains inputs filtered IEC, 100 to 240 VAC 47-63Hz
    Internal Mains Fuse: 20mm 1A anti surge
    AC Consumption: 16 watts@230VAC

    PHYSICAL

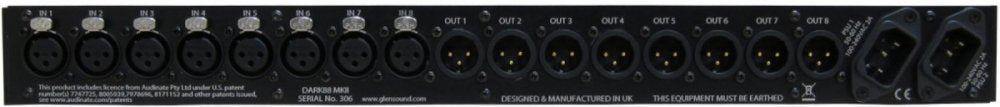

    Audio Connectors: 8 x XLRM and 8 x XLRF
    Dimensions: 442 x 303 x 44mm (wxdxh) 1U rack mounting
    Mechanics: All aluminium construction, anodised and laser etched front & rear panels
    Weight: 3kg
    Shipping Carton: Rugged Export quality cardboard carton 610 x 420 x 130mm LxDxH
    Shipping Weight: 4.5Kg

    ENVIRONMENTAL
    Operating Temperature: 0 to +50°C (32 to 122°F)
    Storage Temperature: -20 to +70°C (-4 to 158°F)
    Relative Humidity: 0 to 95% non-condensing
