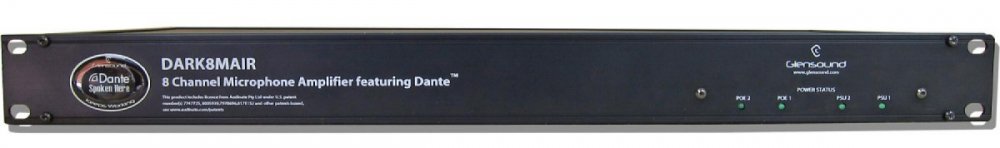

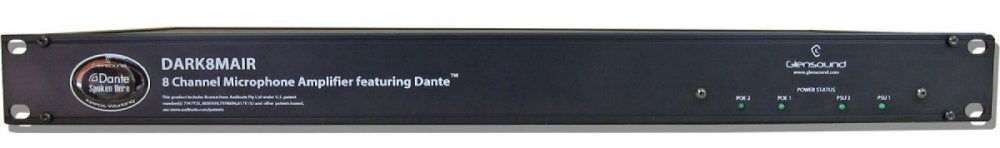

8 Channel Dante/AES67 Microphone Amplifier



The DARK8MAIR (Microphone Analogue Input Rackmount) is a very powerful Dante/AES67 network audio interface, in a robust stage box/ throw down style. It has a 8 of low noise mic/line inputs which are remotely controlled by a Windows 10 app. The outputs of the microphone amplifiers are transmitted on a fully redundant Dante/AES67 network interface.

Having 8 of low noise high quality microphone inputs makes the DARK8MAIR perfect for transporting audio circuits from a stage or a pitch side position to a mixer or other location within an audio network.

The rugged design, PoE/Mains powering & remote control facility of the unit means that it can easily be placed and left unattended wherever audio sources are required.
Eight Audio Inputs
The DARK8MAIR has 8 audio inputs. Each input is on its own Neutrik 3 pin XLR socket and each input can be set to accept line or mic level inputs. Clever internal circuitry even changes the input impedance to correctly match the input type.

Low Noise Mic Amps
The very best low noise & distortion microphone amplifiers chipsets by Profusion are used in our very carefully designed pre-amp. The design of the pre-amp took our Chief Design Engineer over 3 months to develop and tailor to provide crystal clear sound unaltered by unwanted characteristics.

Mic/Line/Phantom Power
Each of the eight inputs can be individually switched to accept either a mic or line level input. The mic input can also have 48 Volt phantom power turned on/ off. Input selection and phantom power settings are enabled on the Windows 10 app.

High Quality Analogue To Digital Converters
As well as the best microphone amplifiers the very best, widest range analogue to digital converters (ADC) currently available are used to make sure the digital audio on your network is as good as it possibly can be. The filter settings of the ADC can even be changed via the app.

Windows 10 App For Remote Control
The free windows 10 app provides full remote control of the DARK8MAIR. It allows switching of input types, gain control, level monitoring and more.

Network Interface
There are 4 network interfaces on the DARK8MAIR. There are 2 x Neutrik Ethercon (RJ45) connectors and there are also 2 x SFP slots for customers to fit their own preferred fibre interfaces.

Redundant Network Interface
When using the Dante protocol it is possible to set the DARK8MAIR to have a fully redundant network interface whereby a completely glitch free automatic redundant audio network link is provided across 2 of the network interfaces.

Power
DARK8MAIR can be powered from 4 independent sources to provide a redundant power option.
Each copper RJ45 network socket can accept PoE (this means that just 1 cable can carry power and audio data to/ from the unit).
For extra redundancy there are 2 inbuilt wide range switch mode power supplies each with their own IEC inlet.
LINE INPUTS
Frequency Response: +/-0.25dB 20Hz to 22kHz
Maximum Input Level: +18dB
Input Impedance: >20k Ohm
Distortion: 0.0013% @ 100Hz
0.0022% @ 1kHz
0.00094% @ 10kHz
All reference to +8dBu output
Noise: -93dB @ Line up A weighted RMS (22Hz to 22kHz)
Interchannel Crosstalk: >101dB @ 0dB with 1kHz Tone
Dynamic Range: >111dB
Input Type: Electronically balanced (can be wired unbalanced)

MIC INPUTS
Frequency Response: +/-0.25dB 40Hz to 22kHz
Input Range: -67 to -15dB (for -24dBFs line up)
-61 to -7dB (for -18dBFs line up)
Input Gain Resolution: 3dB Steps
Input Impedance: >2k4 Ohm
Equivalent Input Noise: 127dB (22Hz to 22kHz Terminated 300 Ohms)
Distortion: 0.013% @ 100Hz
0.002% @ 1kHz
0.003% @ 10kHz
All Reference to m+8dBu output
Phantom Power: +48 Volts

NETWORK INTERFACE
Physical: 2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots
Protocol: Dante & AES67
Audio Sample Rates: 32 - 192 kS/s
Full Scale: 0dBFS = +18dBu

POWER
PoE Inputs: 2 of standard 48V
One on each network RJ45
Mains Input Quantity: 2
Mains Input Type: Filtered IEC
Mains Input Range: 100 - 240 VAC
Mains Input Frequency: 50 - 60 Hz
Consumption: Total unit consumption <15Watts

PHYSICAL
Size: 19" 1RU 185mm deep
Weight: 1.9Kg
Mechanics: All aluminium construction, anodized panels and laser etched front & rear panels
Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 120mm (L x D x H)
Shipping Weight: 3Kg

ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)

Storage Temperature: -20 to +70°C (-4 to 158°F)

Relative Humidity: 0 to 95% non-condensing


INCLUDED ITEMS
Network Cable: 1 of 2 metre RJ45 Cable
Handbook: A5 paper handbook (download also available)

REMOTE CONTROL
General: Windows 10 application. Direct install on PC (not App store download)
