MPN #GS-HA011


Financing available
Free shipping in Canada. Conditions

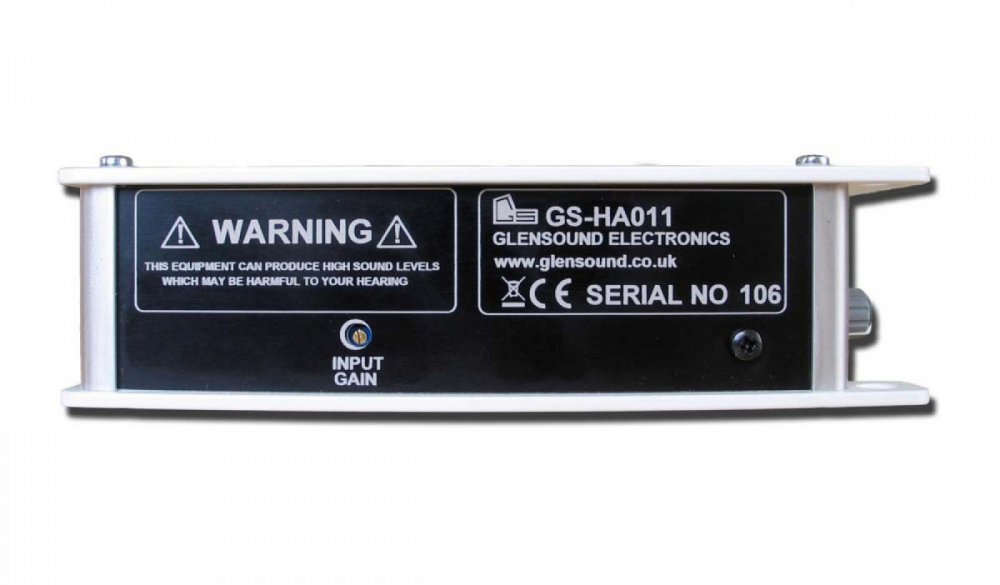

Portable, belt pack style single channel headphone amplifier, Battery(PP3) or DC power

Audio input is transformer balanced with recessed adjustable gain control. Input connection is via XLR with a loop through XLR output. Two headphone sockets are offered, 1 on 6.35mm and the other on 3.5mm. These are wired tip & sleeve to allow connection of regular stereo headphones (with audio on both ears) or a single ear piece. There is a volume control for adjusting level to 32-1000ohm impedance headphones.

Power is via a 9v PP3 battery (>18 hours use) or via external DC power. There is an on/off switch and a low power LED light.

Glensound belt pack cases are very rugged to withstand the rigours of portable use. There are loop anchor points on each of the front corners for shoulder straps or tying down, and there is a belt clip.
  • Portable single channel headphone amplifier
  • Transformer balanced inputs
  • Input gain control
  • Battery(PP3) or DC power
  • Adjustable headphone level control
  • 6.35mm and 3.5mm headphone sockets
  • Audio input on XLR with loop through
  • On/off switch
  • Low battery light
  • Belt clip
  • Input: Transformer balanced
    Input Impedance: >20k ohms
    Input Range: -20dBu to +8dBu
    Output Range: -20dBu to +10dBu
    Frequency response: < -1dBu 50Hz - 16KHz
    Noise: >-80dBu CCIR Un-waited Q Peak @ Line up
    Max O/P: +19dBu into 10K ohms
    Max O/P: +16dBu into 600 ohms
    Distortion: <0.25% 100Hz - 1kHz
    Distortion: <0.02% 1K - 10KHz
    DC supply: 12-20v <26mA
    Battery: 9v alkaline PP3
    Battery life: >18 hours (Alkaline battery in normal conditions)
    Low battery LED: at 6.0 volts
    Optimal Headphone Impedance: 32-1000 ohm
    Length: 153mm
    Width: 73mm
