The class-A circuit used in the EQ-73 is similar to the eq section in the classical 1073 module, without thehigh pass filter.
Additional frequencies have been added and the mid frequency band uses two inductors, the
higher value of the second one is used for the two lowest frequencies, 160 Hz and 240 Hz, to achieve a suitable response.
The sound character is warm, punchy, sweet and musical. These classic characteristics have been heard
on countless recordings through the years and it is a versatile sound that works very well on most sound
sources and in most genres. The essence of this sound is now available at a surprisingly low cost, making it
available to nearly everyone.

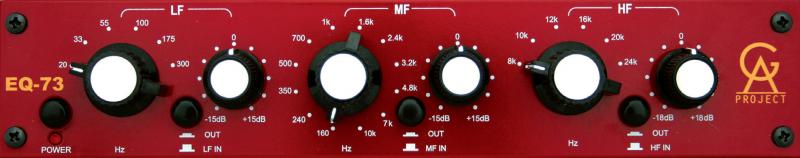

The EQ-73 has stepped frequency controls that offers a wide selection of frequencies from 20 Hz to 24 kHz.
The Low and High frequency bands are shelving and the mid frequency band is of the bell type.
The control range is +/-15 dB for the two lower bands and +/- 18dB for the high frequency band.
There are separate bypass switches for all three bands.
The EQ-73 cannot be used as a standalone EQ. It is made to be used together with one of our PRE-73 models that has an Insert jack.
Combining a PRE-73 and an EQ-73, and using a UNITE rack kit to mount them together, one will get a 19-inch 1073-style unit at a low cost and with a great sound!
Vintage Style electronics. No intergrated circuits in the signal path3-band with a dual inductor based mid frequency bandStepped frequency selectionA wide selection of frequencies from 20 Hz to 24 kHzControl range up to +/- 18 dBSeparate Bypass switches for each bandTantalum capacitors in the signal pathMade to be used together with one of our PRE-73 models with an Insert jackTRS jack for in-and output connection, the nominal working level is around 18 dBuSelectable ground lift switchExternal power supply to avoid interaction with the audio circuitsGreat sound that suits most sound sources and genresA solid build quality that will last many years of normal use
GTIN (UPC/EAN) : 8717624851049
Manufacturer Part Number : EQ73
