UPC/EAN #823821009003     MPN #A900
Grace Design M900

$748.00

Financing available
Free shipping in Canada. Conditions

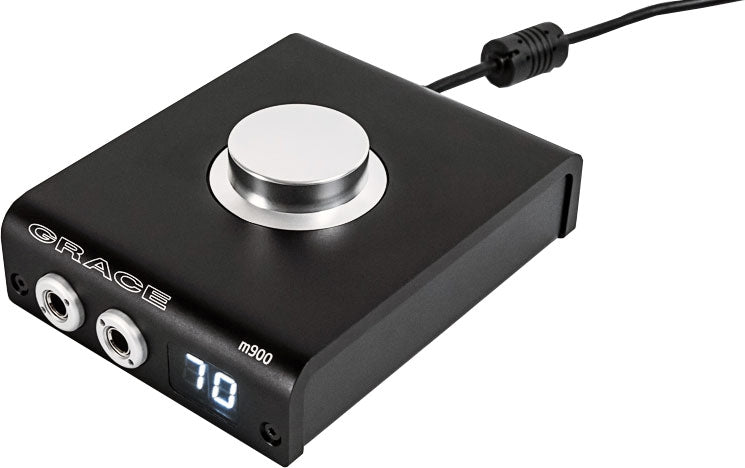

The m900 is a portable, desktop friendly headphone amplifier / DAC / preamp combo designed to give transparent audio playback from USB, S/PDIF or TOSLINK sources



For small DAW studio setups, portable laptop editing or mixing rigs, or just pure playback enjoyment, the m900 provides the same analog and DAC quality as our large monitor controllers, but in a rugged, portable and surprisingly affordable unit.

The m900 DAC uses the latest generation AKM 4490 chip, which features 32-bit processing and supports sample rates up to 384kHz PCM or 256x DSD. The USB interface operates in asynchronous mode allowing the m900 to be the clock master which makes the system immune to USB bus jitter. S/PDIF and Toslink inputs allow the m900 to enhance to any DAW interface with true reference quality D/A conversion, headphone monitoring and stereo speaker control.

An intelligent power supply design allows for two power operation modes - LOW and HIGH. LOW power mode is from USB connector #1, which provides bus power along with data, allowing the m900 to operate from a single connection to your computer. HIGH power power mode is available by connecting the included 2A USB DC power supply to the USB connector #2, which provides additional power for harder to drive headphones.

Transimpedance amplifier topology coupled to a zero ohm output impedance driver provides headphone performance that is incredibly spacious and transparent with a tight, enveloping low end. Our latest generation crossfeed circuit rounds out the design by simulating an acoustic listening environment in the headphones. Familiar tracks become new again with surprise details, while audio production tasks like tracking, mixing and editing happen faster and easier.

After many years of honing our DAC and headphone amplifier designs, the m900 distills the best of what we've learned in a compact, rugged and simple unit. Whether in the studio, on your desk or on the road, the m900 will bring you closer to the music you love.

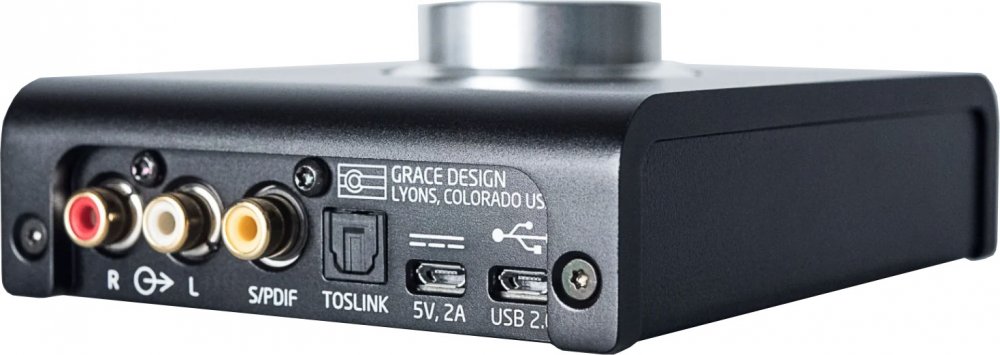

  • USB, S/PDIF and Toslink digital inputs, supports up to 192kHz (Toslink up to 96kHz)
  • Asynchronous USB interface for jitter free computer audio playback, supports up to 384kHz PCM and 256x DSD
  • Dual zero ohm output impedance headphone outputs
  • Unbalanced level controlled outputs via RCA for connecting to a stereo monitor system
  • Compact, portable chassis perfect for travel, desktop or studio
  • Low power mode via USB Bus power
  • High power mode via included USB 2A power supply
  • 4 different DAC filter settings to tailor playback performance to personal preference
  • Simple user setup menu for setup and calibration
  • 7 segment LED display displays level and setup menu information
  • Large rotary encoder for volume control and setup menu navigation
  • Made in Lyons, CO USA
  • THD+N 1kHz, 22Hz-22kHz BW
    @1.0V out, no load <0.002%
    @1.0V out, 32 Ohm load <0.010%

    Intermodulation Distortion SMTPE/DIN 4:1 50Hz, 7kHz
    @1.0V out, no load <0.008%
    @1.0V out, 32 Ohm load <0.009%

    Frequency Response +/-3dB
    Fs=96kHz 0.5-45.9kHz

    Dynamic Range
    20-22kHz bandwidth 112dB
    20-22kHz bandwidth and A weighting filter 115dB

    Output Noise
    20-22kHz, volume=0-90 -106dBV
    A weighting filter, volume = 0-90 -109dBV
    20-22kHz, volume=90.5-99.5 -96dBV
    A weighting filter, volume = 90.5-99.5 -98dBV

    Crosstalk
    100Hz <107dB
    1kHz <98dB
    20kHz <72dB

    Attenuation Range
    0 to -99dB, 0.5dB steps

    Channel Tracking Accuracy
    +/-0.05dB

    Maximum Output Level, No load
    Low Power Mode +14.1dBV (5.1V)
    High Power Mode +15.5dBV (6.0V)

    Impedances
    Headphone Output 0.08 Ohms
    Line Output 47.5 Ohms

    Input Lock Range Sample Rate Lock Range
    S/PDIF 44.1kHz 43870-45420Hz
    48kHz 46590-49220Hz
    88.2kHz 87760-90830Hz
    96kHz 93520-98430Hz
    176.4kHz 175700-181640Hz
    1 92kHz 187050-196380Hz

    TOSLINK
    44.1kHz 43900-45410Hz
    48kHz 46590-49190Hz
    88.2kHz 87840-90830Hz
    96kHz 93520-97530Hz

    USB supported sample rates
    44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz

    Power Consumption
    Max, High Power mode 8.0W
    Max, Low Power mode 2.5W

    Dimensions
    4" x 5.25" x 1.8"

    Headphone Output Power / Low Power Mode Output Power mW
    Load Resistance Ohms 1 Channel Driven 2 Channels driven
    4 80 22
    8 140 45
    16 310 90
    20 350 100
    32 600 175
    50 560 280
    300 83 83
    600 40 40

    Headphone Output Power / High Power Mode Output Power mW
    Load Resistance Ohms 1 Channel Driven 2 Channels driven
    4 925 240
    8 1800 490
    16 1900 940
    20 1575 1030
    32 1020 950
    50 680 650
    300 115 115
    600 57 57
