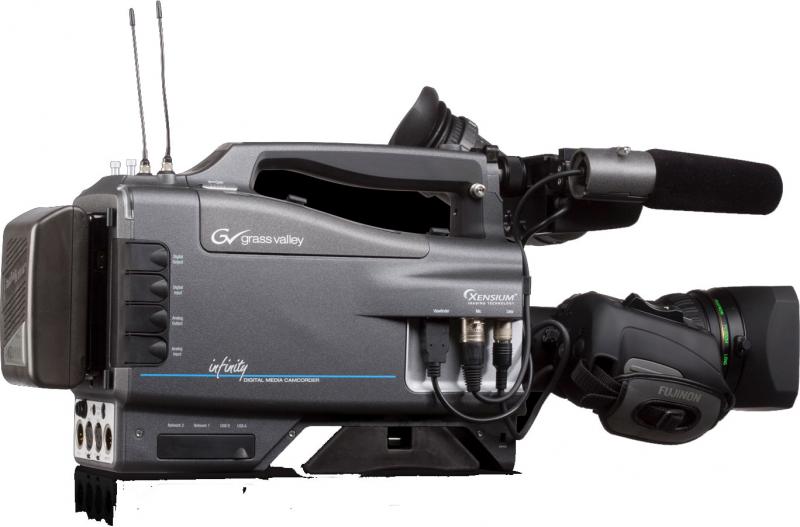

DMC 1000 Digital Media Camcorder

Our Grass Valley Infinity Series digital media camcorder is a revolutionary step in EFP and ENG acquisition-combining the best of our Emmy award-winning camera engineering with leading IT recording and connectivity technologies. The result is a multi-format solution designed from the ground up to deliver all the benefits of advanced acquisition and recording in an affordable, open, and truly flexible system. With a freedom of choice in compression, format support, and recording media, it's the perfect complement to your EFP and ENG workflows.

General
Power: DC 15V (11.0V to 17.0V), Consumption during record standby 45W, with active imaging, view finder, compression, buffer, and lens; Consumption while recording 49W, while recording to REV PRO
Temperature range: Operating: 0°C to 40°C ( 32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F)
Humidity range: 10 to 90% (relative humidity)
Weight: 5 kg (11 lbs.) without viewfinder, 5.7 kg (12.6 lbs.) with HD CRT viewfinder
Dimensions : 240 mm (H) x 150 mm (W) x 330 mm (L) without lens and battery
Camera Part
Lens mount: 2/3" bayonet type
Optical system: F1.4 prism
Optical filters : Motorized: clear, 1/4 ND, 1/16 ND, 1/64 ND
Color-correction filters: Electronic: 3200K, 4700K, 5600K, 7500K, 2 AWB presets and continuous auto-white, Variable color temperature: 2200°K to 20000°K in 10°K steps
Pickup device: 3 x 2/3" full HD Xensium CMOS imagers
Digital processing: 22-bit accurate processing
Exposure: Electronic exposure down to 1/2000 sec
Video mode: 576i/480i
Temporal frequencies: 50/59.94 Hz
Gain: -6 dB to +42 dB in 3 dB steps (user-definable presets) and variable master gain between -6 dB and +17.9 dB in 0.1 dB steps
Aspect ratio: 16:9, 4:3, and letterbox
Sensitivity: 2000 lux (186 footcandles) at F8 typical
S/N ratio in Y signal: 61 dB typical
Modulation depth: 70% at 5 MHz in luminance (Y) signal (16:9)
Audio: 20 Hz - 20 kHz unweighted, 24 bits PCM, 48 kHz, dynamic range 85 dB
Compression
DV25: Both PAL (4:2:0) and NTSC (4:1:1)
JPEG 2000: SD: 10-bit, 4:2:2, 30-, 40-, 50 Mb/s
MPEG-2 (requires the DMC 1120 MPEG-2 option board): SD: 8-bit, 4:2:2 (VBR) and D10, 4:2:2 (CBR), 30-,40-, 50 Mb/s, I-Frame
File Formats
High-quality content: MXF OP-1A (SMPTE 378M), including 4 channels of PCM audio and metadata
Metadata definition: Compatible with SMPTE Metadata Dictionary RP210
Built-In Storage
REV PRO: REV PRO 35 digital media drive (DMC 1000/10) or REV PRO XP/ER digital media drive (DMC 1000/20)
CompactFlash: 2 x Type I and II CompactFlash slots, speed depending on media
Camcorder Connectors
Front microphone input: XLR-3 female, balanced +48V, XLR-5 female, balanced +48V phantom (requires DMC 1180 option)
Rear audio inputs: 2 x XLR-3 female, mic-/line-level, balanced, +48V selectable
Additional audio inputs: AES/EBU or embedded (HD-)SDI audio via BNC and 2 channels via wireless receiver slot
Audio output: XLR-5 male, line-level, 2-channel mixed balanced 6.3 mm stereo jack earphone
Additional audio outputs: AES/EBU or embedded (HD-)SDI 2-channel audio via BNC
Lens connector: 12-pin female Hirose
Viewfinder connector: HDMI type A connector
(HD-)SDI input: BNC, SMPTE 292M (1.5 Gb/s) or SMPTE 259M (270 Mb/s), 0.8 Vp-p, 75
(HD-)SDI output: BNC, SMPTE 292M (1.5 Gb/s) or SMPTE 259M (270 Mb/s), 0.8 Vp-p, 75
Analog video input: BNC, CVBS, blackburst, linear time code or AES/EBU audio, 1.0 Vp-p, 75
Analog video output: BNC, CVBS, linear time code or AES/EBU audio, 1.0 Vp-p, 75
DC 15V in: XLR-4 male (11.0V to 17.0V)
DC 12V out: 4-pin Hirose, 12V (11.0V to 17.0V) 1A with tally signal
IT Connectivity
Ethernet: 1 x RJ-45, control and file-transfer connectivity (1 x RJ-45 streaming for future release)
USB: 2 x USB A host, 1 x USB B device
IEEE 1394: 6-pin IEEE 1394 connector
Supplied accessories: User's Guide, eye piece cover, and one piece of REV PRO media
Options Information
2" HD viewfinder: Model No. DMC 1100, HD B/W CRT, > 600 TV lines (center)
MPEG-2 compression board : Model DMC 1120/00, SD/HD compression including D10 and Long GOP
24p module: Model DMC1130/00, 1080p24/25/30 video modes
