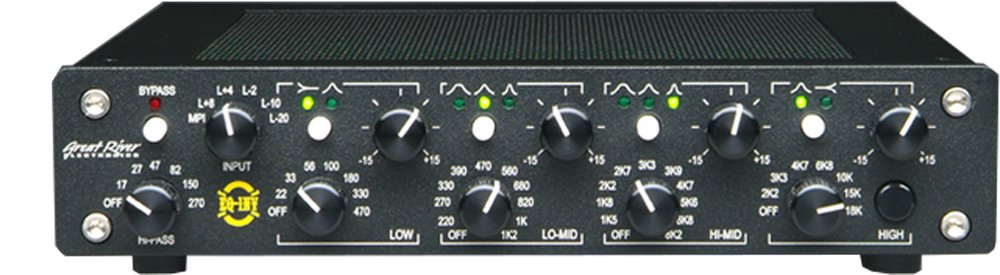

The Great River EQ-1NV is a single channel equalizer greatly modernizing the classic British "1081/1083"-type design.
This "desktop" (and rackable) digitally controlled analog parametric EQ offers similar topology to vintage 1081/1083 models, but with welcome improvements. Newly designed Class-A discrete single-ended amplifiers and true inductor/capacitor (L/C) circuitry add greater clarity and dynamic range to the musicality of the vintage-era models. The EQ-1NV also has a unique discrete high-current Class-A balanced output stage.
To make life in the studio (and on the road) easier, the Great River EQ-1NV has been specifically designed to integrate with the patch loop in Great River NV Series microphone preamplifiers (with a single TRS ¼" cable), for complete flexibility in tracking and mixing. The front panel input selector / sensitivity switch offers the option of using the signal from the EQ-1NV's transformer-coupled line input (ranging from 8dbm to -20dbm), or the patched signal from the NV preamp. When connected via the patch loop, the four EQ sections are inserted between the microphone (or DI) input's first gain stage (with level control and metering) and the preamplifier's output gain stage and "big iron" transformer (also with level control and metering). This routing flexibility provides a broad range of sonic/harmonic possibilities and maintains a full Class-A signal path.
One channel, discrete Class-A design

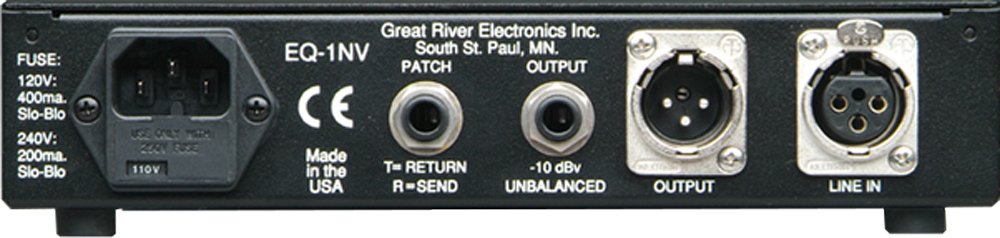

Multiple In/Out connections: XLR balanced line in and out; ¼" -10dbV output for 'no-latency' DAW monitoring; TRS ¼" insert patch point for NV Series mic preamp (inserts EQ between NV preamp gain stages)
Wide range of input sensitivity from 8dbm to -20dbm with selection between line in and insert patch point
4 bands independently enabled with /-15db boost/cut
Hi and low bands selectable between peaking and shelving
Hi-mid and low-mid bands each have 3 selectable Q positions
3rd order selectable frequency high pass filter
Hardwire bypass of equalizer section
Internal low-noise shielded power supply (externally selectable for 110 / 220 volt; 50 / 60 Hz)
