The Hafler PH50 is an ultra-linear phono stage for moving magnet (dynamic 47k-Ohm) cartridges that exhibits less than 0.5dB deviation from 10Hz to 100kHz and boasts a well defined RIAA curve to preserve and transmit the original program material with mini
Particular attention has been applied to reducing noise, a problem common to the 33 RPM recording chain, resulting in a low -82dB noise floor with greater than 91dB of dynamic range and less than 0.002% distortion.
The design begins with a 14 gauge steel casing to shield the low level signals from external magnetic fields and RF contamination. Gold-plated input and output RCA connector pairs are employed that will not tarnish over time, thus optimizing signal flow. Inside, the solid-state circuit and military grade PC board have been optimized by carefully positioning parts for minimal self-noise and cross-talk and then supplemented with a ground plane to reduce susceptibility to RF and external magnetic fields. An external supply further reduces noise by removing the power transformer from inside the casing.

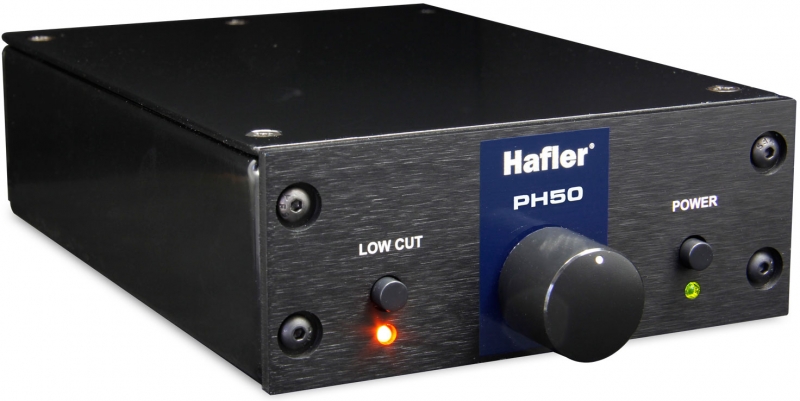

Front panel controls include a power on-off switch and a variable low-cut filter that may be inserted into the signal path when needed. The fully djustable low cut (high-pass) filter enables the user to reduce low frequencies that can cause resonance and feedback when playing music at higher levels. This helps eliminate both airborne and solidly coupled transmission of vibrations that can disrupt the stylus and cause feedback, rumble and distortion.
Compact yet 'plug and play' easy to use, the PH50 follows Hafler's 50 year tradition of building the very finest audio products.
Phono stages for moving magnet cartridgesUltra low noise transformerless designVariable high-pass filter to eliminate rumblePlug and play easy to set up and use
Controls: Low pass cut offSwitches: Low pass ON, powerLow-cut filter: 20Hz to 500HzFilter Slope: 12dB / OctaveAudio circuit type: Active operational amplifierFrequency response: RIAA curveTotal harmonic distortion (THD+N): 0.008%Dynamic range: 91dBInput impedance: 47KMaximum input: -21dBuGain: 35dBClip level - output: +12dBuOutput impedance: 400Equivalent input noise: -79dBuNoise floor: -79dBuIntermodulation distortion: 0.04%
Manufacturer Part Number : H100-0050
