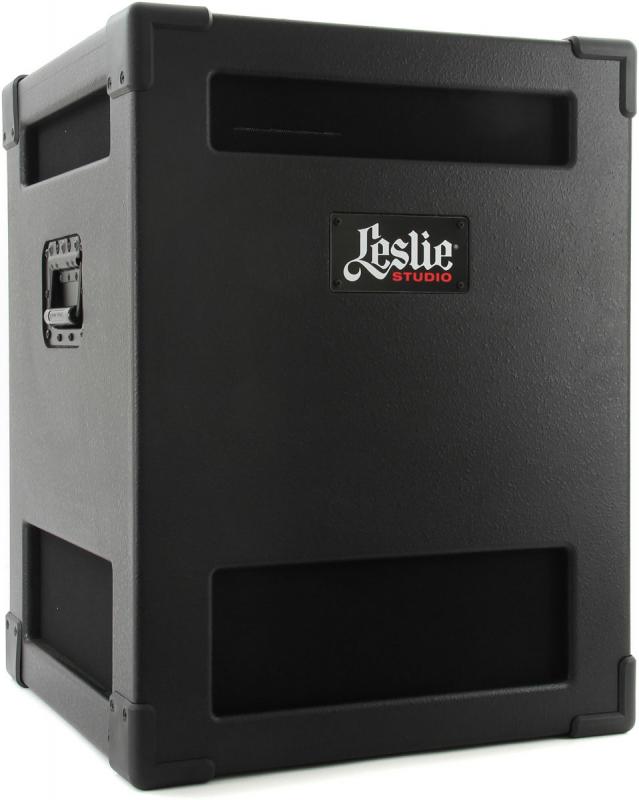

Hammond Leslie Studio 12 Speaker

Joining the line is the smallest-ever dual-rotor Leslie intended for general applications, The Leslie Studio 12.

It is the same size and weight as the popular G37 Guitar Leslie with which it shares a common cabinet. Keyboard players have asked for an ultra-portable Leslie that had a true Leslie Horn and Rotor, and Hammond has delivered their wish.

With a tube preamp driving a 100 watt solid state power amp, the Studio 12 is at home on the Rock and Roll stage and Jazz club alike. Its 1/4 input allows any instrument to connect, and a standard footswitch handles fast and slow speeds. Leslie's exclusive "Gas Pedal", which allows custom Leslie speeds and expressive swells may be tted to the Studio 12
Specifications
SINGLE-CHANNEL INPUT
Features 2 inputs one for low gain for keyboards and high gain for guitar.

TWO-SPEED HORN & BASS ROTOR
Slow/fast speeds can be individually adjusted. Horn and bass rotor will stop, when stop mode is selected. If you intend to "mic" the Studio 12, we recommend, mic-ing it from the front of the cabinet for optimum coverage. (The controls are on the "back" of the cabinet.)

AMPLIFIER
Vacuum tube preamp with a 100-Watt solid-state power amplifier.

SPEAKER
Bass speaker is 12 Eminence speaker matched to the bass chamber. Horn driver is the same driver designed and used in all Leslie speakers for keyboards.

CONTROL INPUTS
Channel Select foot switch, speed select foot switch (slow, fast, stop) or speed control adapter cables 11-pin or 8-pin. Variable speed control pedal input for optional (V-20RT).

CONTROLS
Clean Volume, Ch Select, Overdrive: Gain, Volume, Contour Equalizer: Treble, Mid, Bass Slow rotor speed;fast rotor speed, power switch.

CABINET
Rugged-built, black painted cabinet with protective corners and two folding handles.

POWER SUPPLY
120V AC, 60Hz

DIMENSIONS
20 1/2(W) x 20 1/2(D) x 26 3/4(H)

WEIGHT
85 lbs

INCLUDED ACCESSORIES
FS-10TL speed control

OPTIONAL ACCESSORIES
FS-1TL single foot switch used to remotely control channel select.
V-20RT Speed Control Pedal
Adapter cable 11-pin to 1/4 or 8-pin to 1/4
Reviews
Price *
$2599.00
$2280.00
Additional information
For more information about the Leslie Studio 12 Speaker, please visit the website of Hammond
