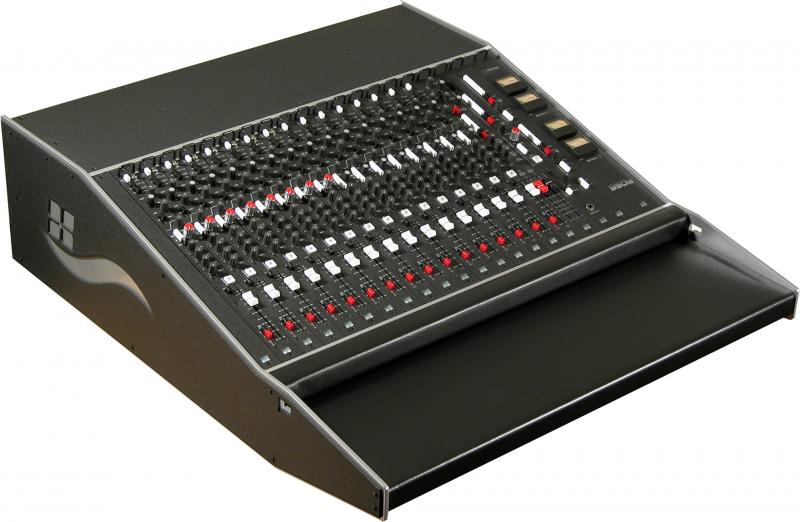

Modular analog recording console with 8 mono and 4 stereo channels
The Harrison 950m sports a history-rich analog design incorporating many of the same high-end modular design elements found across a wide range of Harrison console models from eras past such as the 32 Series, MR Series (2, 3, 4, 5 and 7), SeriesTen, SeriesTwelve, MPC and LPC. The 950m provides a superior analog mixing platform that will cost effectively complement todays high performance music studio where investments in powerful DAWs and high-end specialized outboard gear are the norm.
The 950m was designed by Harrison's most experienced analog designers, and they were challenged to make the best-sounding, highest-spec analog console available today.
Manual PCB layoutRobust ground plane designLinear power distributionGold Euro-card module connectorsGold plated switchesConductive plastic potentiometers100% through-hole designAll I/O is balancedSumming buses carried via PCBs (no ribbon cable summing buses).
These features combine to provide the highest possible performance in analog mixing console design.
The Harrison 950m frame design is rugged and unique. Designed with input from studio engineers, it is specifically designed to minimize some common ergonomic issues found in todays studio using DAW and outboard based setups: Where do I put a keyboard, mouse or trackball and where do I put the computer monitor(s) The 950m solves those issues by providing a 2-tiered front bolster which is wide and deep enough to comfortably locate a DAW keyboard and mouse or trackball (with sufficient cable access). A generous flat top is ideal for locating DAW monitor/s and/or small speakers. The 950m module area is supported at a 15 degree pitch providing comfortable viewing access and control immediately above your keyboard, mouse, and DAW control surface(s).
Switchable Insert points on every input48v (Mono Only)Direct Out (Mono Only)Switchable HP + LP Filters3 Band "Tone" ControlsPan / BalanceInput SelectionsInput Gain Controls4 Mono Aux SendsChannel ONSolo104mm FaderMix Bus RoutingLED Input Meter
Mix Bus 1 compressorMix Bus 2 CompressorOscillator / Talkback AssignmentsAux Send MastersMix Bus Master FadersStereo Mix Bus 1 & 2 VU Output Meters
OscillatorMonitor SourcesHeadphone LevelSpeaker LevelMonitor Solo ListenMonitor MonoMonitor MuteTalkback MicrophoneTalkback LevelTalkback EnableHeadphone Jack
Studio A Source Select ( Osc, Aux 1-4, Mix Bus 1/2 )Studio A Level/Mono/MuteStudio B SourcesStudio B Level/Mono/MuteStudio Talkback Assignments
Stereo Mix Bus 1 ("Black") Electronically-balanced OutputStereo Mix Bus 2 ("Red") Transformer-balanced OutputMono Aux 1-4 OutputStereo Studio A outputStereo Studio B outputStereo Solo bus outputStereo Control Rm OutputMono Oscillator Output
External Linear DC Power SupplyXLR Mic Inputs / Main Outputs"D" Sub Line Inputs / Outputs (Tascam pinout)Additional Connections:Mix Bus A & B Stereo Insert pointMaster Logic (Talkback, Mutes, and fader VCA connections)
15 Degree Module PitchFull Size Keyboard SpaceFlat Top Monitor Shelf
