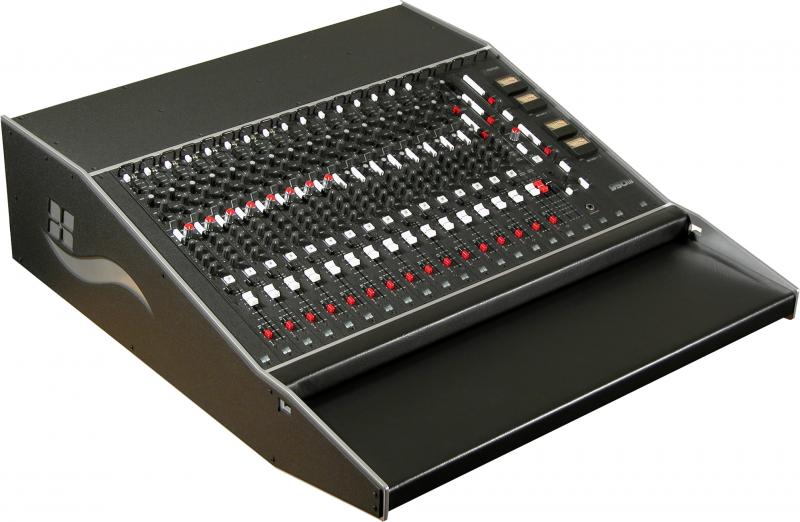

Modular analog recording console with 16 mono and 8 stereo channels
The Harrison 950m sports a history-rich analog design incorporating many of the same high-end modular design elements found across a wide range of Harrison console models from eras past such as the 32 Series, MR Series (2, 3, 4, 5 and 7), SeriesTen, SeriesTwelve, MPC and LPC. The 950m provides a superior analog mixing platform that will cost effectively complement todays high performance music studio where investments in powerful DAWs and high-end specialized outboard gear are the norm.
The 950m was designed by Harrison's most experienced analog designers, and they were challenged to make the best-sounding, highest-spec analog console available today.
Features
Manual PCB layout
Robust ground plane design
Linear power distribution
Gold Euro-card module connectors
Gold plated switches
Conductive plastic potentiometers
100% through-hole design
All I/O is balanced
Summing buses carried via PCBs (no ribbon cable summing buses).
These features combine to provide the highest possible performance in analog mixing console design.
The Harrison 950m frame design is rugged and unique. Designed with input from studio engineers, it is specifically designed to minimize some common ergonomic issues found in todays studio using DAW and outboard based setups: Where do I put a keyboard, mouse or trackball and where do I put the computer monitor(s) The 950m solves those issues by providing a 2-tiered front bolster which is wide and deep enough to comfortably locate a DAW keyboard and mouse or trackball (with sufficient cable access). A generous flat top is ideal for locating DAW monitor/s and/or small speakers. The 950m module area is supported at a 15 degree pitch providing comfortable viewing access and control immediately
Input Channels
Switchable Insert points on every input
48v (Mono Only)
Direct Out (Mono Only)
Switchable HP + LP Filters
3 Band "Tone" Controls
Pan / Balance
Input Selections
Input Gain Controls
4 Mono Aux Sends
Channel ON
Solo
104mm Fader
Mix Bus Routing
LED Input Meter
Master Section
Mix Bus 1 compressor
Mix Bus 2 Compressor
Oscillator / Talkback Assignments
Aux Send Masters
Mix Bus Master Faders
Stereo Mix Bus 1 & 2 VU Output Meters
Monitor
Oscillator
Monitor Sources
Headphone Level
Speaker Level
Monitor Solo Listen
Monitor Mono
Monitor Mute
Talkback Microphone
Talkback Level
Talkback Enable
Headphone Jack
Studio
Studio A Source Select ( Osc, Aux 1-4, Mix Bus 1/2 )
Studio A Level/Mono/Mute
Studio B Sources
Studio B Level/Mono/Mute
Studio Talkback Assignments
XLR Outputs
Stereo Mix Bus 1 ("Black") Electronically-balanced Output
Stereo Mix Bus 2 ("Red") Transformer-balanced Output
Mono Aux 1-4 Output
Stereo Studio A output
Stereo Studio B output
Stereo Solo bus output
Stereo Control Rm Output
Mono Oscillator Output
Back Panel
External Linear DC Power Supply
XLR Mic Inputs / Main Outputs
"D" Sub Line Inputs / Outputs (Tascam pinout)
Additional Connections:
Mix Bus A & B Stereo Insert point
Master Logic (Talkback, Mutes, and fader VCA connections)
