Hazelrigg Industries VNE COMP
MPN #VNE
Single channel all tube PWM compressor, 20Hz to 20kHz response, under 0.07 percent THD, HPF sidechain, transformer IO, transparent dynamics, DW Fearn design
The VNE is Hazelrigg Industries' flagship single-channel compressor, designed to deliver clean, musical dynamic control with the transparency and tonal integrity professionals demand. Born from the acclaimed circuitry of the D.W. Fearn VT-7, the VNE features an all Class-A vacuum tube audio path paired with a modern Pulse Width Modulation (PWM) control circuit-an innovative approach that ensures fast, accurate gain reduction without coloring the source material.
Handcrafted in the USA with premium components and tuned by ear through extensive listening tests, the VNE excels in both tracking and mixing. Front panel controls include Threshold, Attack, Release, Gain, and a three-position switch for bypass or side-chain High-Pass Filter (100 Hz) to avoid over-compression from bass-heavy content. With transformer-balanced I/O, ultra-low THD (<0.07%), and a wide frequency response, the VNE offers precise compression with exceptional sonic transparency-making it an indispensable tool for any high-end studio.
Features
All-tube signal path: Delivers warm, natural tone using a fully Class-A vacuum tube designPrecision PWM compression: Uses pulse width modulation for smooth, accurate gain control without adding colorationBased on the D W Fearn VT-7: Shares the same core compression circuit as the trusted VT-7 stereo tube compressorHandcrafted in the USA: Carefully built with hand-selected components for top-tier performance and reliabilitySubtle or aggressive control: Maintains sonic clarity across all settings, from light leveling to heavy compressionThreshold, attack, release, and gain knobs: Quickly dial in the right amount of compression for any sourceHigh-pass filter in sidechain: Reduces sensitivity to low frequencies using a gentle 100Hz roll-offBypass switch: Instantly compare processed and unprocessed signalOutput level LED: Visual feedback for output monitoringTransformer-balanced input and output on XLR: Preserves signal integrity and analog warmthFrequency response from 20Hz to 20kHz plus extended low and high rangeLow total harmonic distortion under 0.07 percentSignal to noise ratio better than 80dB
Specifications
General Overview
Product Name: VNESeries: Hazelrigg Industries Solutions SeriesFormat: Full-size rackmount unitType: Single-channel all-tube compressorApplication: Ideal for tracking and mixingDesign: Based on D.W. Fearn VT-7 with custom PWM control
Signal Path and Circuitry
Audio Path: All Class-A vacuum tubeCompression Control: Pulse Width Modulation (PWM)Gain Reduction: Smooth, musical dynamics controlTransformers: Transformer-coupled input and output
Performance Specifications
Frequency Response: 20 Hz - 20 kHz plus minus 0.5 dBExtended Response: -3 dB points at 5 Hz and 65 kHzTHD: Less than 0.07 percentSignal to Noise Ratio: Better than 80 dB
Front Panel Controls and Features

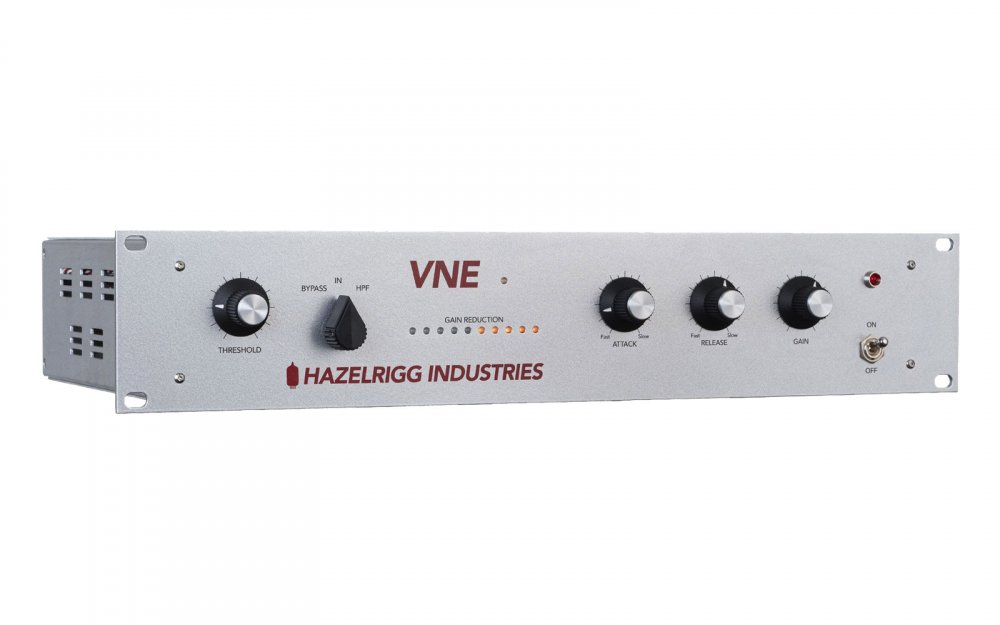

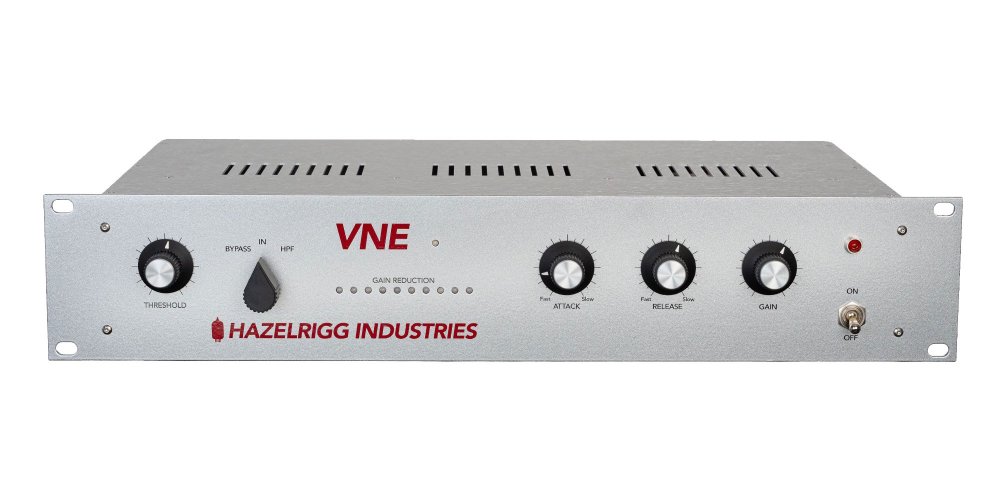

Threshold controlAttack time controlRelease time controlGain (make-up) controlCompression Bypass switchSide-chain High-Pass Filter (HPF) switch - nominal 100 Hz roll-offOutput level indicator

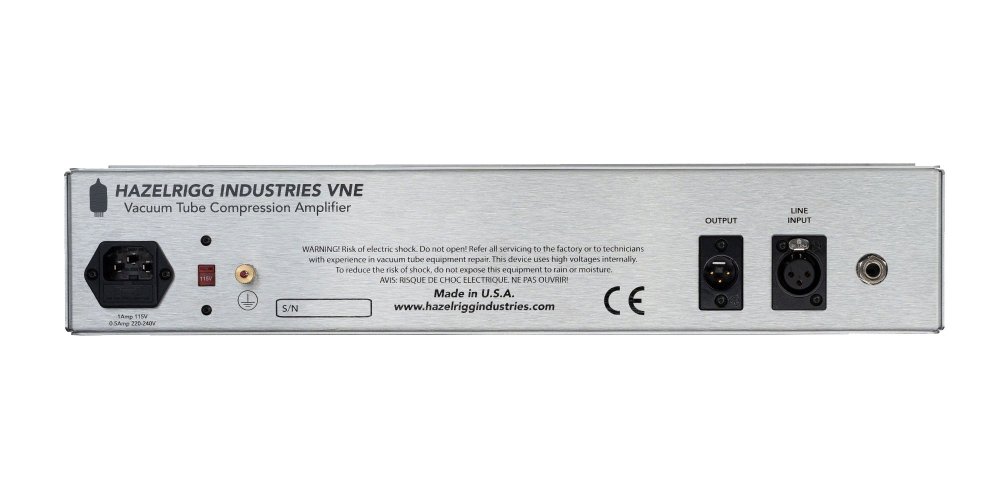

Rear Panel Connectivity
Balanced Line Input: XLRBalanced Line Output: XLR
Build and Construction
Construction: Handcrafted in the USAAudio Design: Amplifier designed by D.W. FearnComponent Selection: High-grade parts chosen by listening tests
