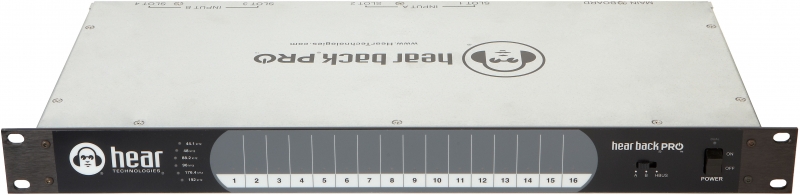

Hear Technologies Hear Back PRO Hub Mainframe

This is it - the simplest, most affordable digital solution to get everyone the mix they need to perform their best. Hub Mainframe only.

This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you'll ever need.

Introducing the latest addition to the Hear Technologies family - Hear Back PRO.
With this system, there is no learning curve. Whether or not you've ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.

The Hear Back PRO System: Hub & Mixers

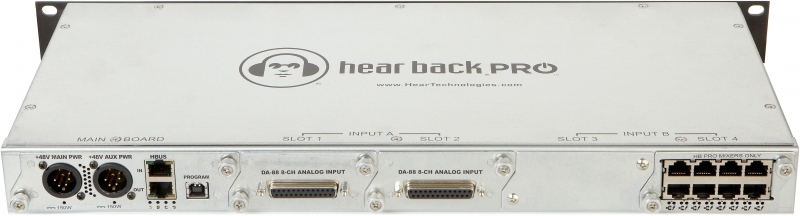

The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.

The standard Hub (included in the "4-pack") comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxiliary, matrix, monitor, and/or direct outputs.
Features
Three switch selectable 16-channel
input sources:
  • Input A (Slots 1 & 2)
  • Input B (Slots 3 & 4)
  • HBus
  • 24-bit Delta-Sigma A/D converters
    Six user-selectable sample rates, indicated
    by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
    176.4 kHz, and 192 kHz
    Less than .25 milliseconds total system delay (latency) from analog input to output
    16 RGB LEDs intuitively display signal / peak levels for channel metering
    Standard CAT5e/6 cabling delivers power and signals to Mixers
    Daisy-chain via HBus for very large systems
    1 RU chassis
    Modular I/O card-slot configurable mainframe
    Gigabit Ethernet network fabric
    48V Power Over Ethernet supply
    Reviews
    Price *
    $2654.00
    $2123.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Hear Back PRO Hub Mainframe, please visit the website of Hear Technologies
