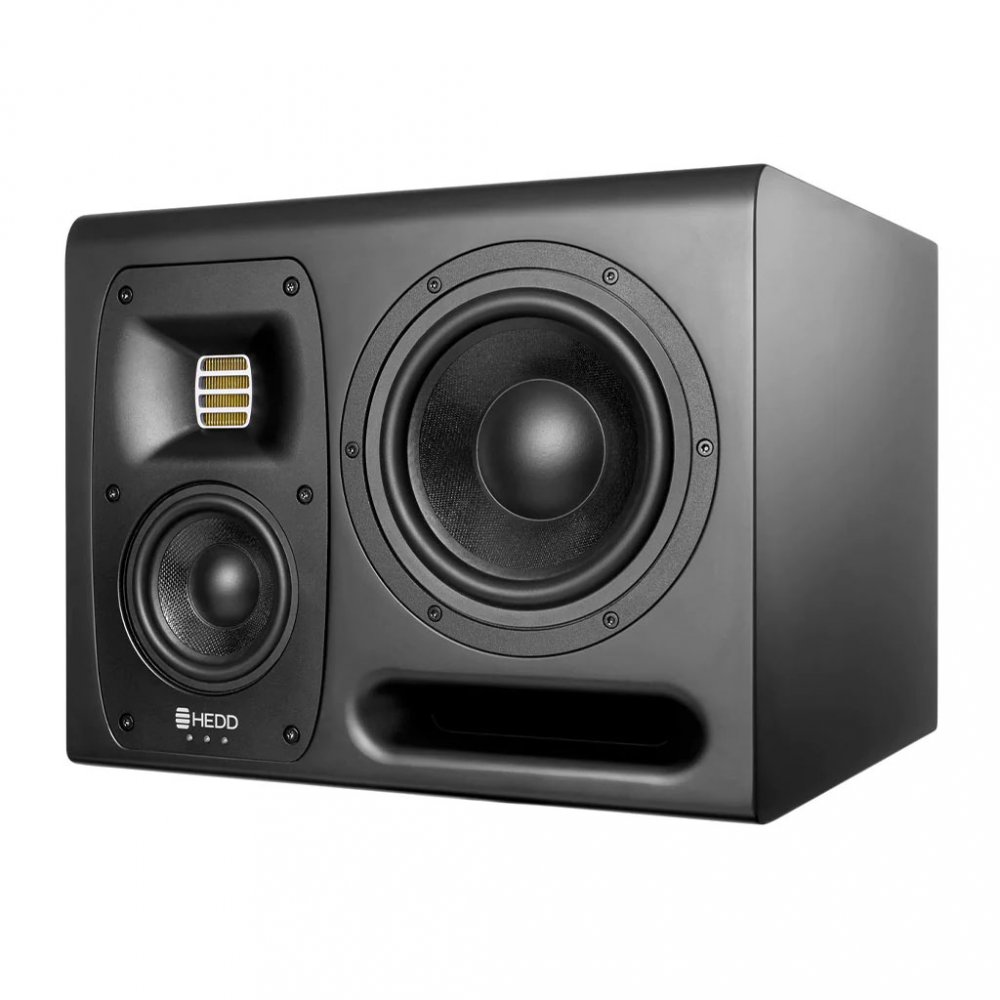

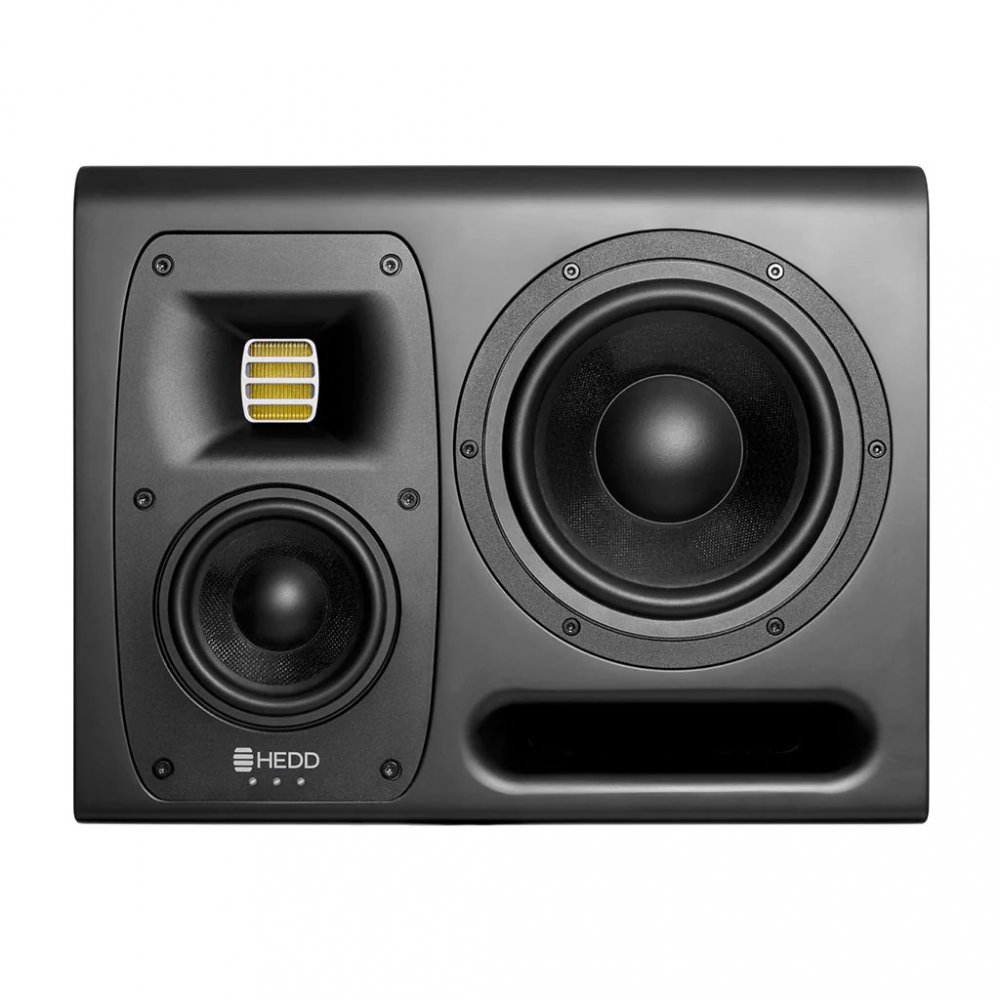

Hedd Audio Type 20 MK2-R Black
UPC/EAN #00745760375431
MPN #F-047
Three-way active studio monitor with 7 inch woofer, 4 inch midrange driver, 3x 300W power, and DSP, black
Boundless versatility. Sublime, compact powerhouse.
Combine openness, punch, a gloriously honest midrange clarity, and a jaw-dropping low end performance and you have the Type 20 monitor.
The perfect all-rounder. The perfect companion for every audio endeavor.
From producing bass-hungry beats to mastering the most sophisticated Jazz records: This 3-way monitor will unveil new layers in your music and transport your engineering skills to the next level.
Air Motion Transformer
Handmade in Berlin using high quality components, the HEDD Air Motion Transformer puts HEDD's expertise at your disposal to deliver impeccable transient response and ultra-high frequency extension. As a result, high frequencies remain transparent and linear and do not distort natural sound reproduction in any way.
Lineariser
HEDD Lineariser is an optional function that eliminates speaker-related time delays improving transient response and imaging precision. The phase correction can be synched with our BASS subwoofer range to compensate for group delay in a sat-sub system.
CoP: Closed or Ported
Emerging from extensive research into the HEDD Tower Mains System, the Closed or Ported functionality allows all HEDD MK2 monitors to switch between two designs with the flip of a switch and the use of a plug.
While Ported (open), the monitors can deliver the voluminous bass response with impressive sound extension you?d expect. Seal the bass ports with the plug and experience a new level of bass precision, texture details, and low-end harmonics.
Designed and made in Berlin
Heinz ElectroDynamic Designs (HEDD) is a German manufacturer of high-end studio loudspeakers and HEDDphones founded by Industry Legend Klaus Heinz and his son, Musicologist Dr. Frederik Knop.
Drawing on a rich history in audio creation and reproduction, the company designs and handcrafts its products in Berlin since 2016.
Features
7? wooferDedicated 4? midrange driverHigh definition HEDD Air Motion TransformerPowerful SHARC-DSP and onboard LineariserR flatten speaker phase and create fascinating stereo image and depthClosed or Ported functionality for two distinct sound experiences: accurate and detailed (closed) or energetic and bassy (ported)Complete linear phase Satellite-Subwoofer setup with BASS 12 subwoofersDesktop and shelving filtersBass-extension modeStepped aluminum pot controls
Specifications
Main Features
HEDD Lineariser, CoP, GDC, LFE, Desk and Shelf Filters
Dimensions
280 x 358 x 338 mm
Weight
15.4 kg per unit
DSP Integration
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
Drivers
3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter
Power
3x300 W ICEpower amplification (85-264 V)
Crossovers
250 Hz / 3.200 Hz
Frequency Range
32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
Maximum SPL
SPL 120 dB SPL (sound pressure level) per pair at 1m
Inputs
Analog (XLR / 22 k?) and Digital 2ch (AES / XLR)
Output
Digital AES pass-through via XLR
