UPC/EAN #750536937126     MPN #HA73X2


Save 19.8%, MSRP $2195.00
Financing available
Free shipping in Canada. Conditions

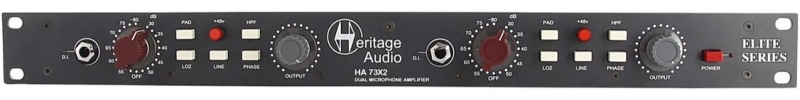

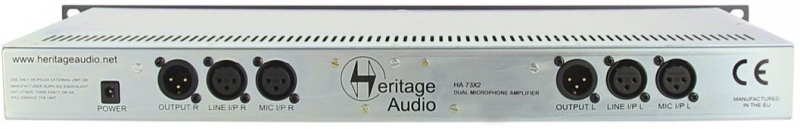

The HA73X2 ELITE series is a dual channel full rack mic pre, Neve 1073 clone with di, class A design, universal power supply

  • Essentially a dual channel HA-73 Elite
  • Made to the same specifications as the acclaimed ยด73JR and DMA73 models.
  • Industry standard Carnhill transformers hand wound in St Ives, England.
  • 80dB, 3 stage fully discrete class A mic preamp.
  • Line input on separate XLR for adding fat and warmth to prerecorded tracks.
  • 20dB PAD on the mic input to avoid overloading the input transformer when desired.
  • LOZ, switches the input impedance of the mic transformer from 200 to 50 ohm.
  • 80 Hz hi pass filter. Fully discrete class A.
  • Ultra high impedance, JFET based D.I.
  • 1 Rack unit format.
  • External universal power supply for worldwide use.
  • Microphone input impedance
  • HI: 1200 Ohm minimum
  • LO: 300 Ohm minimum

  • *Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating.

    Line input impedance: 10KOhms bridging, transformer balanced and floating
    Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms
    Maximum output: Greater than +26.5dBu into 600 Ohms (internally terminated)
    THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz
    Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB)
    Maximum Gain: Slightly greater than 80dB
    Equivalent Input Noise: Less than -125dBu
    Output stage noise: Less than -100dBu
    Power consumption: Less than 260 mA @48VDC
