8x12 USB-MIDI interface with 22 networked MIDI ports over Ethernet, 10x Class Compliant USB Ports and 10x 5-pin DIN connections



The MIDI interface redefined
mioXL is our flagship MIDI power-house, packed full with our very best technology and innovations. With mioXL it's never been easier to get huge amounts of MIDI gear connected and talking to each other. Harness the power of our advanced computer and network connectivity and experience why mioXL redefines what a flagship MIDI interface can and should do.

Connect all your MIDI devices (USB-MIDI, DIN-MIDI, RTP/Network-MIDI) and Mac, PC, and iOS computing devices to each other, and let this rugged, versatile interface put you in control of your MIDI devices and workflow.

On stage or in the studio, RTP/Network-MIDI capability means you are no longer constrained by cable length or limited USB ports. Stack multiple interfaces and computers on a network for ultimate scalability and flexibility.

With mioXL you're able to streamline and expand your MIDI setup, no matter how massive and demanding. Even though it's our most powerful MIDI interface, mioXL? is still accessible to all users, allowing you to do whatever you want with MIDI faster, better, and in creative and exciting new ways.

iConnectivity's next generation RTP/Network- MIDI capabilities, and what they'll do for you.
Ethernet connectivity means MIDI is on the network wherever you need it. Regular USB connectivity limits you to keeping your interface within 15ft of your computer. Ethernet connectivity gives you up to 330ft / 100m connection between you and your interface. Drop an interface in every room of your studio, or place an interface virtually anywhere in a venue.

RTP/Network-MIDI is not bound by some of the same restrictions as USB-MIDI.

Easy renaming of network ports - have them show up the way you want them to in your DAW.

Access to more than 22 ports per interface.

Our unique network technology is as easy to use as USB! Enjoy your new-found MIDI power without extra headaches.

Use your 22 network MIDI ports anyway you want. Connect each of the 22 RTP-MIDI sessions to any combination of physical or virtual I/O ports. Almost any combination is possible.

Configuring mioXL?:
Introducing a new version of our Auracle control software: taking the simplicity of workflow that the original Auracle introduced but now with the added deep configuration functionality that we've become known for. All the deep configuration options you asked for: MIDI merging, filtering, remapping, and deep routing are all there and super easy to use.

Presets onboard:
Need to configure your MIDI setup in multiple ways No problem!
New to mioXL : store and recall up to 32 presets directly on the interface, without even needing a computer!
Easily store and recall unique MIDI routing, filter and merging setups to preset scenes, and recall them all directly via the mioXL front panel.

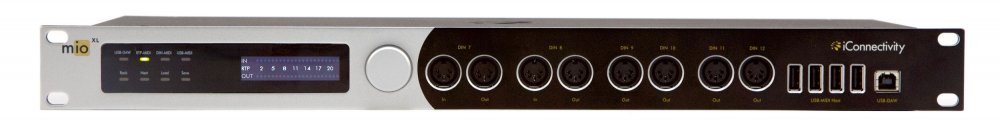

mioXL's OLED display and encoder wheel gives you a crisp clear way of monitoring MIDI traffic, viewing, and selecting presets.
  • 8 in x 12 out 5-pin DIN-MIDI ports
  • 10x USB-MIDI host ports support multiple USB-MIDI CLASS COMPLIANT MIDI peripherals
  • Ethernet RTP-MIDI Network port - 22 virtual network ports can easily be assigned to onboard DIN and USB ports as well as any other connected computing devices. These make all MIDI devices accessible to Mac, PC, iOS and other mobile computing devices via a single cable.
  • Connect multiple computers via assignable virtual network ports
  • USB Computer port supporting Mac, Windows, and iOS connectivity (iOS via CCK)
  • Plug and Play - no drivers required thanks to class compliant connectivity
  • OLED display with rotary encoder for navigating presets and real-time monitoring of MIDI traffic
  • iConnectivity's Auracle 2.0? configuration software (downloadable for Mac & Windows) makes it simple to create and save filtering/routing/merging presets
  • Connect iOS devices via CCK, WiFi (using 3rd party Wi-Fi ethernet hub), or wired ethernet connections
  • Type: MIDI Interface
  • Ports: 8 x 12

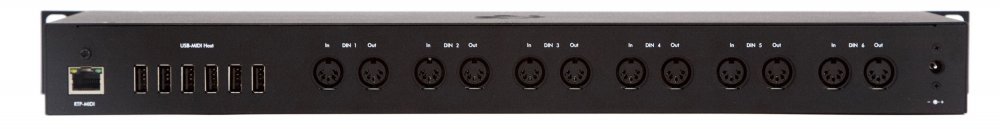

  • MIDI I/O: 8 x 5-pin DIN (In), 12 x 5-pin DIN (Out), 10 x USB Type A, 1 x Ethernet (RTP-MIDI)
  • USB: 10 x Type A, 1 x Type B
  • Computer Connectivity: USB, Ethernet
  • Software: iConnectivity Auracle 2.0 (Windows/Mac)
  • Compatibility - Mac: OS X 10.11 or later, iOS (camera connection kit / Ethernet adapter required)
  • Compatibility - Windows: Windows 7 SP1 or later
  • Power: 12V DC power supply (included)
  • Height: 1.75"
  • Width: 19"
  • Depth: 5.725"
  • Weight: 4.18 lbs.
  • Manufacturer Part Number: mioXL
