MPN #IFBR1C-B1

$566.00

Financing available
Free shipping in Canada. Conditions

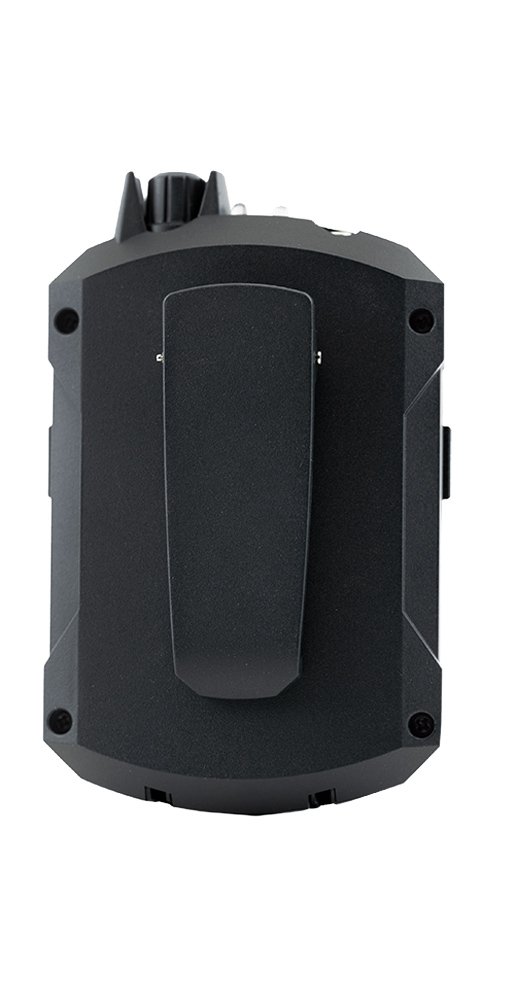

Affordable IFB systems perfect for film and broadcast production. Including compact IFB receiver, integrated belt clip, AA battery powered, dock chargeable

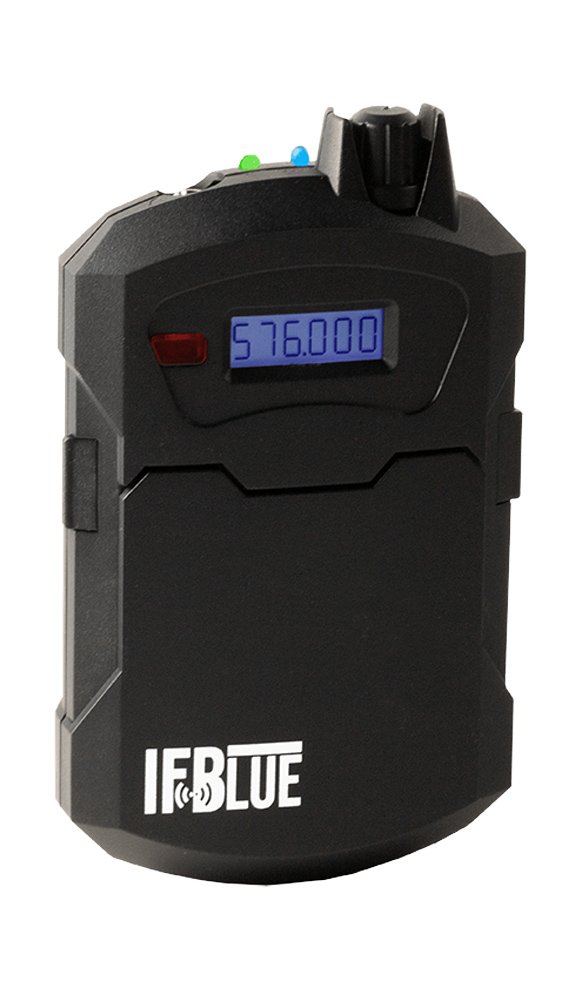

The IFBlue receiver provides simplicity and flexibility in a tough package that is intuitive for untrained users to operate. In spite of its small size, the receiver pack offers excellent performance and convenience. The dock charging feature and supplied rechargeable batteries make daily use a snap, while 10 programmable preset frequencies give you excellent flexibility on set or in the studio.

The IFBlue receiver pack is offered in five different frequency ranges to match existing T4 transmitters: VHF (174-216 MHz), A1 (470-537 MHz), B1 (537-614 MHz), C1 (614-692 MHz) and 941 (941-960 MHz).Transmitters available from Lectrosonics include the IFBT4, IFBT4-VHF, or any Digital Hybrid Wireless transmitter in IFB compatibility mode.
PRESETS
Stores up to 10 frequency presets in memory

INTERFACE
LCD interface for programming and operation

RANGE
High sensitivity for extended operating range indoors or outdoors

CONNECTIVITY
USB port for firmware updates

DURABLE
Compact, rugged injection molded ABS housing

POWER
2 AA batteries; alkaline, lithium, or NiMH rechargeables (supplied)
Operating Frequencies (MHz):
Band B1: 537.600 - 614.375

Frequency Selection Steps: 25 kHz
Sensitivity: 1 uv (20 dB SINAD)
Signal/Noise ratio: 95 dB A-weighted
Squelch quieting: 90 dB
AM rejection: 50 dB, 10 uV to 100 mV
Modulation acceptance: ±20 kHz
Spurious rejection: Greater than 70 dB
Operating temperature range: -20 to 50 degrees C.
Third order intercept: 0 dBm
Frequency response: 100 Hz to 10 kHz, (+/-1 dB)
Audio output: 1V RMS into 50 ohms minimum
Antenna: Headphone cable
Min. headphone impedance: 16.0 Ohms
Programmable memory: 10 frequencies can be stored as presets
Controls:
Top Panel: Single knob controls Audio Output Level and Power On
Side Panel: Membrane switches with LCD interface for Frequency
Selection and Preset function
Indicators: Multi-color LED indicator for power on and battery
status
Battery: Two AA batteries (+1.5 VDC each)
Battery Life: 10 hours (Alkaline) 12 hours (NiMh), 20 hours, 40 minutes (Lithium)
Current consumption: 120 mA
Weight: 4.6 oz (130 g) with batteries
Size: 4.25 x 2.75 x 1.125 in.
108 x 70.0 x 28.5 mm
