MPN #MULTICORE

$4071.00

Financing available
Free shipping in Canada. Conditions

Multiband dual compressor, transformer balanced inputs and outputs, three band, adjustable active crossover, Mute/ON/Bypass switch on each band



Three bands of classic analog VCA compression provide an infinite field of possibilities to shape the sound.

Concept
The Multicore is very versatile tool in your studio. Three bands of classic analog VCA compression provide an infinite field of possibilities to shape the sound. The device can be used as a mix bus compressor or for mastering purposes. Due to separate control of the audio bands it can be applied, for example on vocals to control sibilants without affecting on dynamics of the low band.

Features

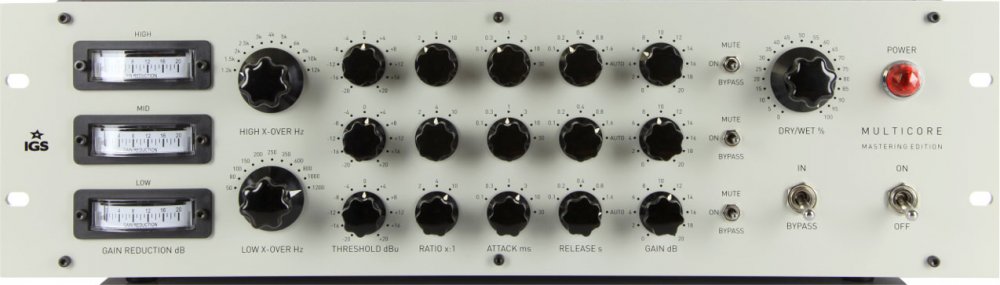

The core of device is based on a three band, adjustable active crossover. It splits audio signal into three bands (Low, Mid and High) with a gentle slope of 6dB/oct. That allows you to control the dynamics of each band in a very musical way without phase problems. Each of the bands has its own compressor module equipped with standard controls: Threshold, Ratio, Attack Release and Gain. A very useful feature is Mute/ON/Bypass switch on each band. The "Muted" option allows you to switch off the bands. If you mute two of them, you can hear only one band and monitor its audio content and bandwidth.

Components

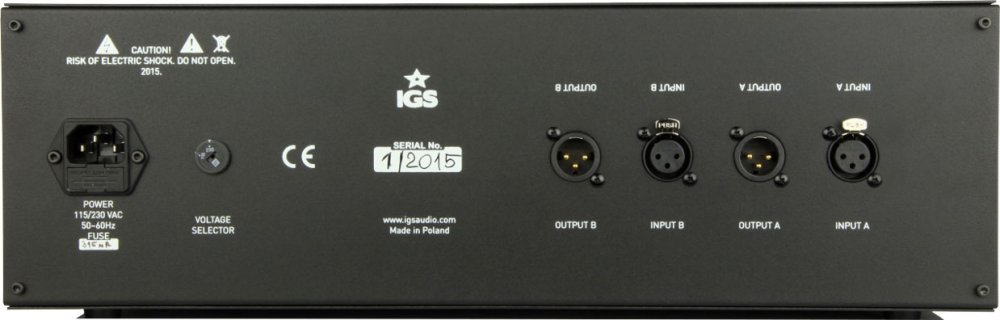

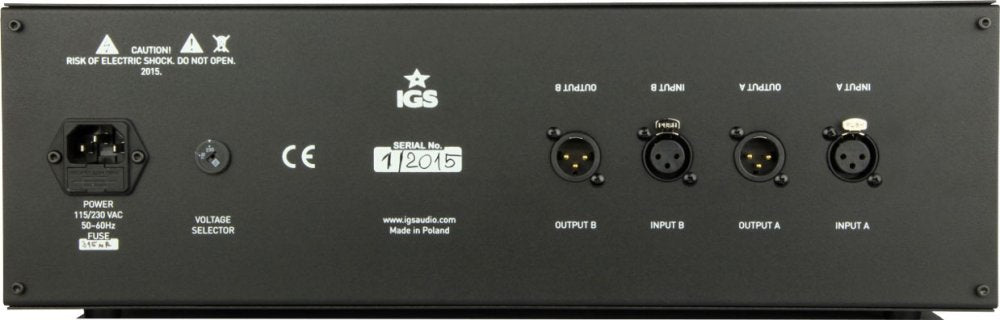

The Multicore has transformer balanced inputs and outputs (Carnhill UK). The signal path is made with THT (Through-Hole Technology) components only. Passive components are matched between channels to provide best L/R correlation. High quality selected components ensure stability of parameters and superior sound. Low noise, negligible crosstalk and high headroom makes the device can be used in the most demanding professional audio applications.
DEVICE TYPE
VCA Compressor : 3 band

INPUT & OUTPUT
Input Impedance (balanced) : 10k Ohm, Carnhill transformer
Output Impedance (balanced) : 600 Ohm, Carnhill transformer
Audio transformers : Carnhill VTB

LEVELS
Operating Level : +4dBu
Max input level : +28dBu
Max output level : +28dBu
Dynamic Range : 104 dB(A)
Max Gain Reduction : -20dB

TIME CONSTANTS
Ratio : 2:1, 4:1, 10:1
Attack : 0.1, 0.3, 1, 18, 30
Release : 0.1, 0.4, 0.6, 0.8, 1.6, Auto

BANDWIDTH
Frequency response : 10Hz to 30kHz (+0.3dB/-0.3dB)

DISTORTION (@ 20 HZ - 20 KHZ)
Signal to Noise Ratio : 90 dB(A)
THD+N : 0.08 %
IMD (SMPTE) : 0.03 %
Crosstalk : 88dB

POWER
Voltage : 115V/230V (selectable)
Power consumption : 22 W

PACKING BOX
Shipping weight : 10kg
