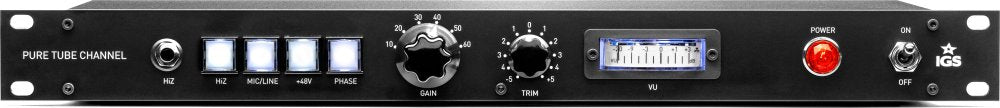

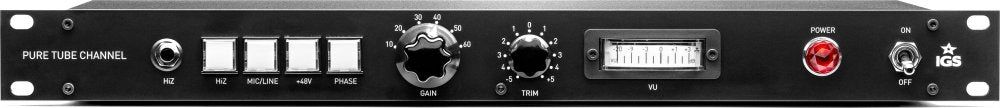

MPN #PURE TUBE CHANNEL

$1309.00

Financing available
Free shipping in Canada. Conditions

All tube micrphone preamp, Carnhill input transformer, Edcor output transformer, high Z input



Pure tube signal path
Classic pure tube signal path built with a minimalistic approach and minimum passive parts including an input Carnhill transformer, two military-grade tubes: 6N2P-EW and 6N1P-EW which work in class A and an Edcor output transformer. The signal path includes only two Mundorf capacitors to get the best classic tube sound and as low non-harmonic distortion as possible.

High impedance instrument input
A specially designed high impedance instrument input is added for direct recording of guitar, bass or sound modules. The signal is fed directly to the tube grid for classic sound performance. High Z input is also suitable for recording of clean guitars for later use with amp modeling software in your DAW. In this case, your recordings can benefit from a low noise, proper impedance matching and added nice tube coloration for the high-quality final result.

Balanced transformer isolated input and output

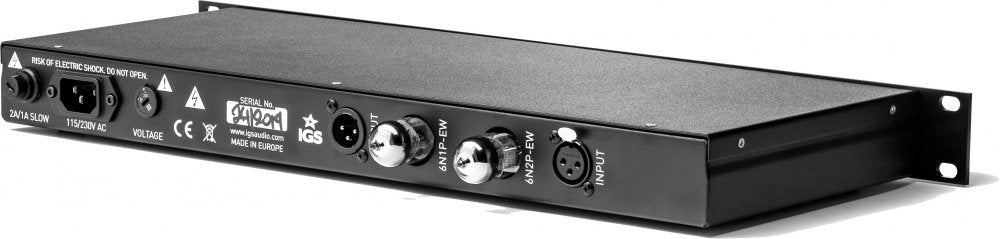

The best microphone preamp must have both input and output transformers. They isolate galvanically the preamp from other audio devices, and give the best isolated balanced signals with lowest CMMR and increase the sound quality adding pretty sweet musically harmonics to your recordings. On the backside, PTC is equipped with 2 XLRs and easy to access tube sockets.
BASIC FEATURES
All stepped manipulators : 6 steps Gain / 41 clicks Trim
Engineer's custom tube set : Yes, 6N2P, 6N1P, 6B23P, 6BC8, 6BZ8

INPUT & OUTPUT
Input Impedance (balanced) : 300/1200 Ohm, Carnhill transformer or 1M Ohm for Hi-Z instrument input
Phantom Power : +48V
Input Pad : -20dB
Output Impedance (balanced) : 600 Ohm

LEVELS
Operating Level : +4dBu
Max input level : +18dBu
Max output level : +22dBu
Noise Level : -110dB
Max. gain : +65dB

BANDWIDTH
Frequency response : 20Hz - 20kHz +/-0.2dB

DISTORTION (@ 20 HZ - 20 KHZ)
THD+N : <0.1%

FRONT PANEL
VU Meters : YES, Output Level

POWER
Voltage : 115V/230V, 50-60Hz
Power consumption : 24W
Power supply : Internal, linear

PACKING BOX
Shipping weight : 6kg
