IGS Audio Springtime
4-channel analog studio reverb - add depth without losing detail - sounds amazing on drums, guitars, piano, vocals and more

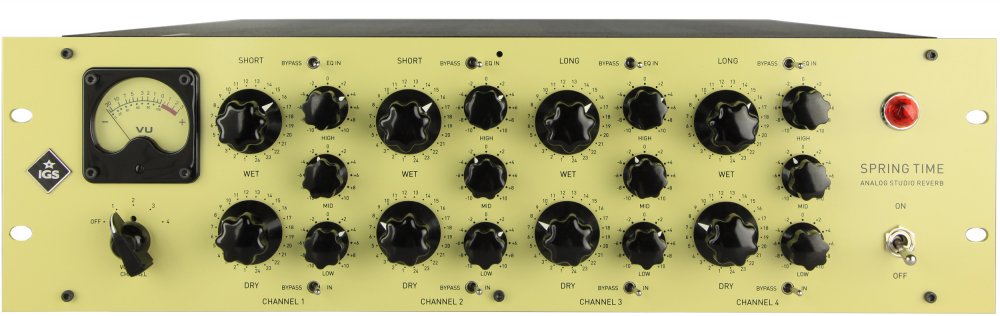

The IGS Springtime is a 4-channel analog studio reverb built using pairs of springs. One short and one long pair. Every channel has separate wet and dry volume knobs. Also, each channel has a 3 band EQ for the wet signal.
What it does
The Springtime fills your room with sound. It glues your mix and enriches the individual tracks. It adds lovely warm color to the midrange. Without EQ, it sounds perfect. With EQ, you can add more definition if you need it.
Try stereo buss send for music tracks to channel 3 and 4 (long springs), mono vocal to channel 1 (short) plus any solo, mono instrument to channel 2 (short). Sometimes even individual instruments can be sent to both kinds of springs in parallel. If you plug it into the insert use 100% Dry and 10% Wet. On sends use 100% Wet, 0% Dry.
WET/DRY Mixer: 24-pole Elma Switches
Boost/Cut Range: +/- 15dB
Hard wire bypass: Yes

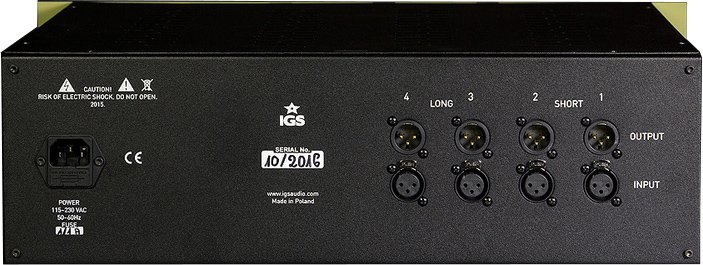

INPUT & OUTPUT
Input Impedance (balanced): 10k Ohm
Output Impedance (balanced): 50 Ohm
Operating Level: +22dBU
Dynamic Range: 120dB
Headroom (@ +4dBu): 18dB
Frequency response: 20Hz-20kHz, +/-0.1dB
DISTORTION (@ 20 HZ - 20 KHZ)
THD+N: 0.001 @ 1kHz, +4dBU
VU Meters: Output Reverb Level
Voltage: 90-240V AC, 10W
Shipping weight: 10kg / 20lb
