Ik Multimedia iLoud Precision 5 MKII
MPN #iLoud Precison 5 MKII

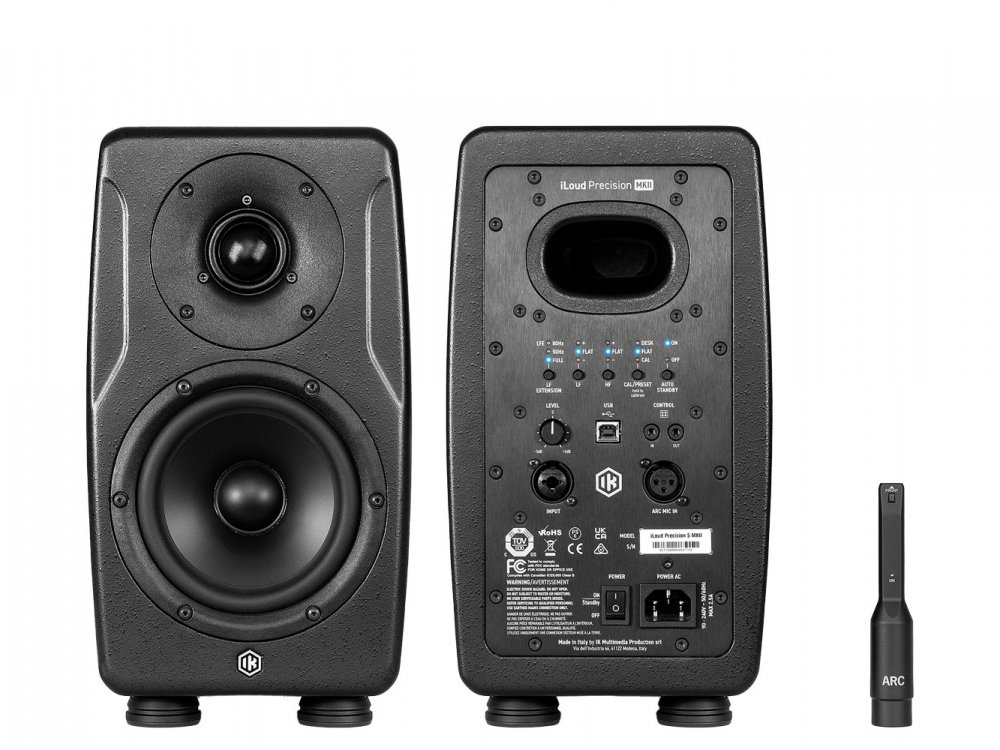

iLoud Precision 5 MKII is a 5-inch studio monitor with +/-1 dB ultra-linear response, ARC X room correction, and graphene tweeter for accurate, fatigue-free mixing.
iLoud Precision 5 MKII is a hand-crafted, 5? nearfield that pairs reference-grade transparency with intelligent room integration. Its 96 kHz DSP engine, linear-phase crossovers, and time-coherent design deliver razor-sharp transients and stable imaging, while a 1.5? graphene-reinforced textile dome tweeter and ultra-light 5? coated-paper mid-woofer provide effortless detail and speed. Out of the box, built-in ARC X room correction (with included MEMS mic) analyzes your space and automatically tunes each monitor for a flat, reliable response. Expect an ultra-linear 46 Hz"22.5 kHz (±1 dB) with deep, controlled bass to 39 Hz (-4 dB)-no sub required-plus onboard LF/HF contouring, high-pass options (off/35/50/65/80 Hz), and desk compensation for precise placement. The rigid, damped HDF cabinet minimizes resonance; included iLoud Isolation Pods further decouple for cleaner low end. With 135 W RMS custom Class-D amplification, high SPL capability (101.6 dB continuous / 113.3 dB peak @1 m), and mounting points for immersive installs, Precision 5 MKII is a fast, fatigue-free, translation-ready reference you can trust on any session.
Features
Built in ARC X room correction with included MEMS microphone that auto tunes response to your room and supports multiple calibration profiles and speaker emulationsUltra linear response plus or minus 1 dB from 46 Hz to 22.5 kHz with extended low end to 39 Hz at minus 4 dB and down to about 30 Hz with ARCTime coherent linear phase monitoring via 96 kHz DSP and sixth order linear phase crossover at 1.5 kHzGraphene reinforced 1.5 inch tweeter and 5 inch ultralight coated paper mid woofer for high frequency detail and fast low distortion transients135 W total RMS custom Class D amplification with 110 W LF short term and 25 W HF short term with 0.005 percent amplifier THDHigh output with low fatigue 101.6 dB continuous and 113.3 dB peak SPL free field at 1 meter with coherent phase 0 to plus 20 degrees from 150 Hz upAdjustable voicing and management with high pass filter options off 35 50 65 80 Hz LF desk mid and HF contour trims and plus or minus 5 dB input gain trimUnit to unit consistency of plus or minus 0.5 dB for accurate matching and additional 0 to 10 ms delay for distance and time alignmentControlled dispersion plus or minus 50 degrees vertical and damped HDF enclosure for reduced resonance and precise imagingiLoud Isolation Pods included to decouple from surfaces with bottom and rear mounting points available for immersive setupsLow latency 2.46 ms time of flight monitoring designed hand assembled and individually calibrated to tight tolerances in ItalyIn the box Precision 5 MKII monitor power cord ARC microphone with clamp USB B to USB A 2.5 meter cable and 4 Isolation Pods
Specifications
Speaker Configuration
Woofer: 5 inch ultralight coated paper mid-wooferTweeter: 1.5 inch graphene-reinforced textile dome tweeterCrossover frequency: 1.5 kHzCrossover type: 6th order linear phase
Amplification and DSP
Amplifier type: Custom-designed Class-DTotal RMS power: 135 watts(LF amp: 110 watts (short term), HF amp: 25 watts (short term))DSP sampling rate: 96 kHzLatency: 2.46 millisecondsAdditional delay: Adjustable 0 to 10 millisecondsAmplifier distortion: 0.005 percent at nominal power
Performance and Frequency Response
Frequency response: 46 Hz to 22.5 kHz (plus or minus 1 dB)Low frequency extension: 39 Hz at minus 4 dBPhase response: Coherent, maximum 20 degrees from 150 Hz upPhase rotation at 100 Hz (HPF off): Maximum 50 degreesDirectivity vertical: Plus or minus 50 degrees
Sound Pressure Levels
Max SPL (continuous, free field, 1 meter): 101.6 dBMax SPL (peak, free field, 1 meter): 113.3 dBMax SPL (peak, half space, 1 meter): 115.3 dB
Tuning and Controls
High-pass filter: Off, 35 Hz, 50 Hz, 65 Hz, 80 HzLF contour: minus 10 dB to plus 6 dBDesk contour: minus 10 dB to 0 dBMid contour: minus 4 dB to plus 4 dBHF contour: minus 6 dB to plus 6 dBInput sensitivity: minus 14 dBu equals 86 dB SPLInput gain trim: plus or minus 5 dB
Calibration and ARC X Integration
Built-in ARC X room correctionRemote control compatible for ARC profile switching and calibration controlCompatible with ARC X software for macOS and Windows
Dimensions and Weight
Dimensions (height x width x depth): 30.5 x 17.7 x 24.8 centimetersWeight: 6.4 kilograms
Environmental
Operating temperature: 0 to 35 degrees Celsius (non-condensing)
Build and Construction
Enclosure: HDF with enhanced internal bracingCabinet design: VentedIncludes isolation pods for decoupling from surfacesMounting points: Bottom and rear (for immersive audio setups)
Additional Highlights
Time-coherent and linear-phase responseUnit-to-unit consistency within plus or minus 0.5 dBGraphene tweeter for enhanced transient responseDesigned, assembled, and acoustically calibrated in Modena, Italy
Included in the Box

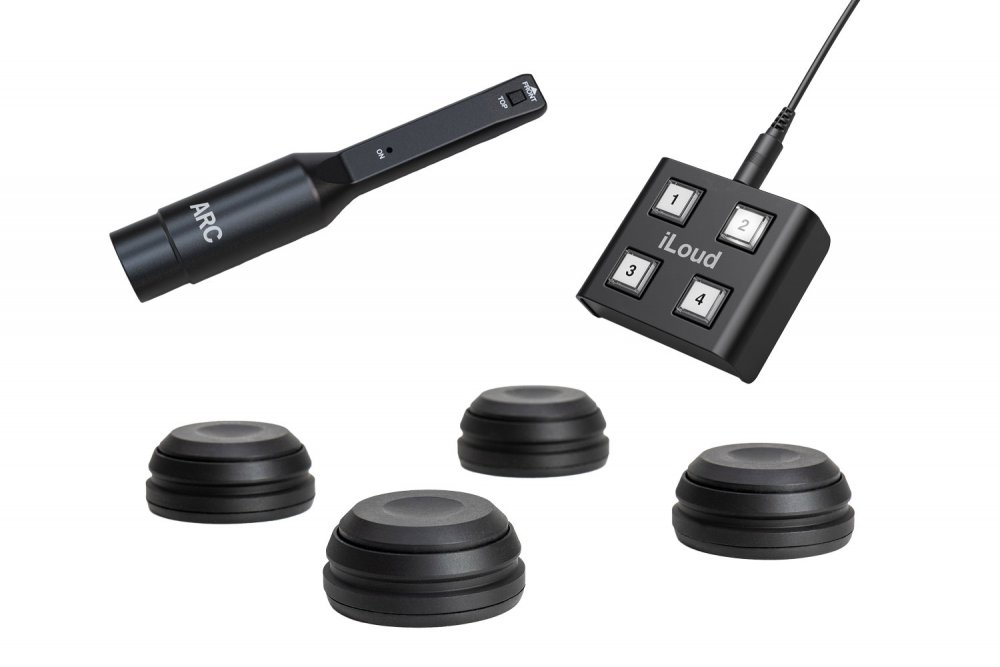

1 x iLoud Precision 5 MKII monitor (black)Power cordARC MEMS measurement microphoneARC microphone clampUSB-B to USB-A cable (2.5 meters)Kit of 4 iLoud Isolation Pods
