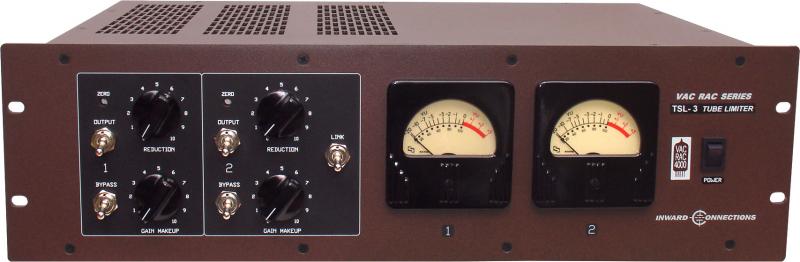

Add warmth and euphonic tube character to your tracks with the venerable Inward Connections Vac Rac TSL-3. Famous amongst professionals for making a vocal sit in a mix without the need for vocal rides, it imparts a wonderful character without sounding "tubby." The elegant way in which it controls transients makes it a must have in the studio for vocals, bass, and buss duties.

---

Features per channel

Gain make-up level

Gain reduction control

Bypass switch

Output/Gain reduction switch mode

Zero adjust trim

Master Link Switch

Large 3"x3" VU meter

Illuminated VU meters

Tubes used in both input channels: Input stage - 6072A, Output stage - 12BH7A

Power Supply: Pure Class A high voltage tube design using 6BM8

Unit dimensions: 3 rack space. 5.25" Height, 19" Width, 11.5" Depth

Rugged steel chassis design

Classic vintage look

---

Specifications

Gain Reduction
up to 40db

Input Impedance
>100k ohms

Frequency Response
+/- 0.5 dB @ 20Hz to 20KHz

Output Signal to Noise Ratio
-85dB

THD + Noise
.015% @ 20Hz (0dB ref.)
.085% @ 20KHz (0dB ref.)
.15% @ 20Hz to 20KHz (+30dB ref.)

Maximum Input Level
+20dB

Maximum Output Level
- +20dBm @ 600 ohms
- +34dBv @ 10K

Output Impedance
600 ohms transformerless unbalanced output
