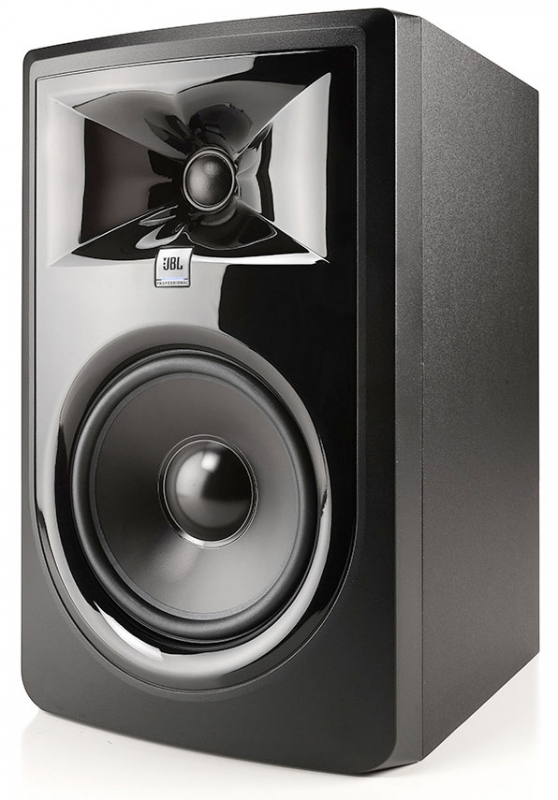

JBL 306P MKII
JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace.
Patented Image Control Waveguide
Reveal impressive detail, ambience and depth in your mixes thanks to the groundbreaking JBL Image Control Waveguide. Originally developed for JBL's flagship M2 Master Reference Monitor, this patented innovation ensures an acoustically seamless transition between the low- and high-frequency transducers and provides an immersive soundstage with precise imaging. Offering a broad sweet spot and neutral frequency response, JBL 305P MkII delivers a crystal-clear representation of your mix-revealing subtle details, even when listening off-axis.
Your Mix is Only as Good as Your Monitors
To help you make the best mix decisions, JBL equipped the 305P MkII with acclaimed 3 Series transducers that now perform even better. Hear deep, accurate and tightly controlled bass thanks to a long-throw 5" woofer and the patented JBL Slip Stream low-frequency port. Enjoy soaring, immaculately detailed highs via the woven-composite 1" Neodymium tweeter. JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low frequency linearity and lower harmonic distortion courtesy of an enhanced woofer design. The result is a studio monitor you can trust-with unmatched peak handling, stunning dynamics and neutral frequency response that's unbeatable in its class.
Big Sound Out of the Box
JBL 305P MkII is ready for the most demanding production styles right out of the box. Dual integrated Class D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project. From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume-even at peak SPLs. Simply plug in, power on, and start creating.
Tailored Sound to Fit Your Studio
The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that's why JBL 305P MkII lets you adjust the response to fit your studio. The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 305P MkII to tailor it to room acoustics or personal tastes.
Offering both balanced XLR and 1/4" TRS inputs, and adjustable +4dBu/-10dBV input sensitivity, the 305P MkII offers flexible, professional connectivity options to provide easy setup while maintaining your signal integrity.
70 Years of Expertise
The design of the 305P MkII leverages over 70 years of JBL acoustic expertise to create a refined studio monitor at an outstanding value. While other manufacturers use off-the-shelf components and make subjective decisions about the sound, JBL builds speakers that squeeze every ounce of performance from each component to deliver efficient, accurate sound reproduction. 305P MkII is designed to JBL's Linear Spatial Reference criteria-a series of 72 individual measurements taken 360 degrees around the speaker to ensure a faithful reproduction of your mix, whatever your listening environment.
JBL Professional Reliability
JBL Professional studio monitors are designed for reliable performance, even when projects push your gear to the limit. Before being approved for production, 3 Series monitors must first pass JBL's strenuous Power Test. Each model is required to perform flawlessly at maximum volume for an unheard-of 100 hours-without failure. As a result, you can depend on 305P MkII monitors to deliver consistently excellent sound reproduction for years to come.
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spotNext-generation JBL transducers for optimized transient response and improved linearityPatented Slip Stream low-frequency port for superior bass performance at all playback levelsDual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic rangeNew Boundary EQ settings compensate for low frequency variants introduced by the environmentHF Trim switch adjusts high-frequency output to room acoustics or personal preferencesFlexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume controlEngineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working spaceStrenuous JBL 100-hour full-power test ensures years of reliabilitySleek, modern design provides a visual upgrade to any studio
LF DRIVER SIZE: 165mm (6.5")HF DRIVER SIZE: 25mm (1")HF DRIVER TYPE: Soft domeCROSSOVER: 1425Hz 4th order acoustic Linkwitz-RileyOK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT: YesINPUT SENSITIVITY (-10dBV INPUT): 92dB / 1mPOWER CONFIGURATION: Bi-amplifiedHF DRIVER POWER AMP: 56W, Class-DLF DRIVER POWER AMP: 56W, Class-DFREQUENCY RESPONSE (±3dB): 47Hz - 20kHzFREQUENCY RANGE (-10dB): 39Hz - 24kHzLOW FREQUENCY EXTENSION (-10dB): 39HzMAXIMUM CONTINUOUS SPL: 92dBMAXIMUM PEAK SPL: 110dBMAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu): +6dBV / +20.3dBuSYSTEM DISTORTION CRITERIA: <10% THD at maximum output with full compressor / limiter engagementELECTRICAL DISTORTION CRITERIA: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated outputSIGNAL TO NOISE RATIO: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS outputCOVERAGE HORIZONTAL: x VERTICAL 120° x 90°ANALOG INPUT TYPES: 1 x XLR female, 1 x TRS female, balancedHF TRIM CONTROL: -2dB, 0dB, +2dBBOUNDARY EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dBAC INPUT VOLTAGE: 100 - 240VAC (±10%), 50 / 60HzENCLOSURE TYPE: PortedENCLOSURE CONSTRUCTION: 15mm MDFENCLOSURE FINISH: Matte black PVCBAFFLE CONSTRUCTION: Injection-molded structural ABSCABINET DIMENSIONS (H x W x D): 361 x 224 x 282mm (14.2" x 8.8" x 11.1")DISPLAY CARTON (H x W x D): 408 x 285 x 328mm (16.1" x 11.2" x 12.9")SHIPPING CARTON (H x W x D): 418 x 292 x 338mm (16.5" x 11.5" x 13.3")NET WEIGHT: 6.1 kg (13.42 lbs)SHIPPING GROSS WEIGHT: 7.25 kg (15.95 lbs)
