UPC/EAN #691991006326     MPN #705P

$1729.99

Financing available

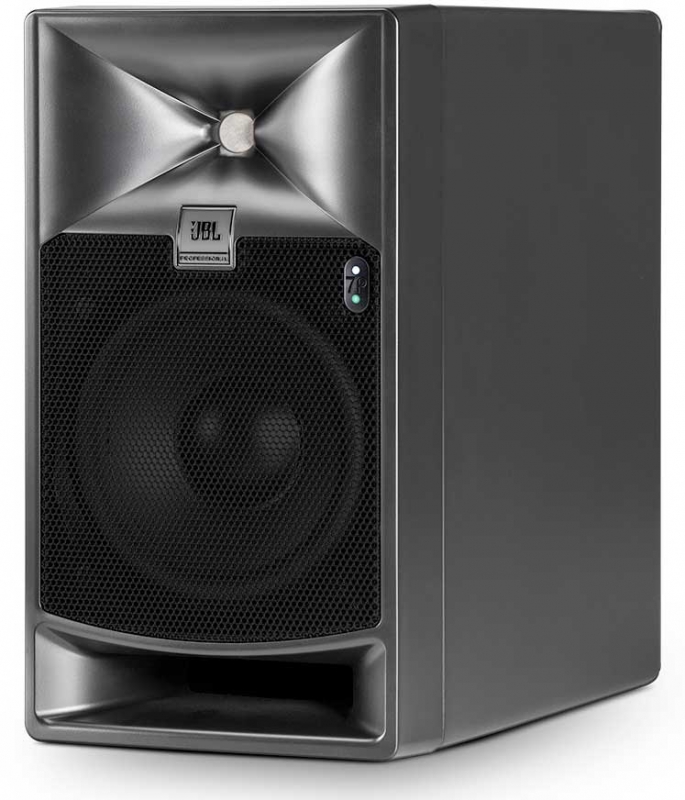

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications.



The JBL 705P leverages the same patent-pending driver technologies and JBL's renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.
  • Next-generation JBL driver technology
  • Patent-pending JBL Image Control Waveguide
  • Integrated dual amplification system with internal floating-point DSP
  • Comprehensive room EQ and delay controls
  • Compact enclosures for easy placement and installation
  • JBL 725G low-frequency transducer delivers low-distortion and high SPL
  • JBL 2409H high-frequency transducer with low-mass annular diaphragm
  • JBL-designed patent-pending Image Control Waveguide
  • 2-channel Class-D amplifier HF 250W / LF 250W
  • 192 kHz, 32-bit floating point processing
  • 12 bands of Room EQ, 8 bands of User EQ
  • 6 factory presets, 6 user-defined presets
  • 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
  • 1 x XLR-1/4" balanced combination analog audio input
  • 1 x XLR AES3 format digital input with 1 x XLR pass-through output
  • Digital input accepts sample rates of up to 192 kHz
  • User-enabled sample rate converters
  • RJ-45 network connection for Harman HiQnet connectivity

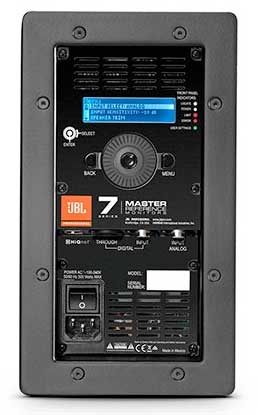

  • Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
  • Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
  • Protective steel grilles
  • Frequency Response (+/-3 dB): 45Hz-25kHz
    Frequency Range: 39Hz - 36 kHz
    Max Continuous SPL: (80 Hz - 20 kHz) >101 dB SPL / 1m
    Maximum Peak SPL: (80 Hz - 20 kHz) >107 dB SPL / 1m
    HF Driver: 2409H
    LF Driver: 725G
    Dividing Network Transition Frequency: 1.9 kHz

    Input Types
  • 1 x XLR-1/4" balanced combination analog audio input
  • 1 x XLR AES3 format digital input with 1 x XLR pass-through output
  • Digital input will accept sample rates up to 192 kHz

  • Dimensions (HxWxD): 268 x 151 x 274 (10.56 x 5.94 x 10.80)
    Weight: 5.68 kg (12.5 lbs.)
    Enclosure: Birch plywood reinforced for mounting
    Mounting: Top, bottom and rear mounting points. 2-hole mounting pattern
