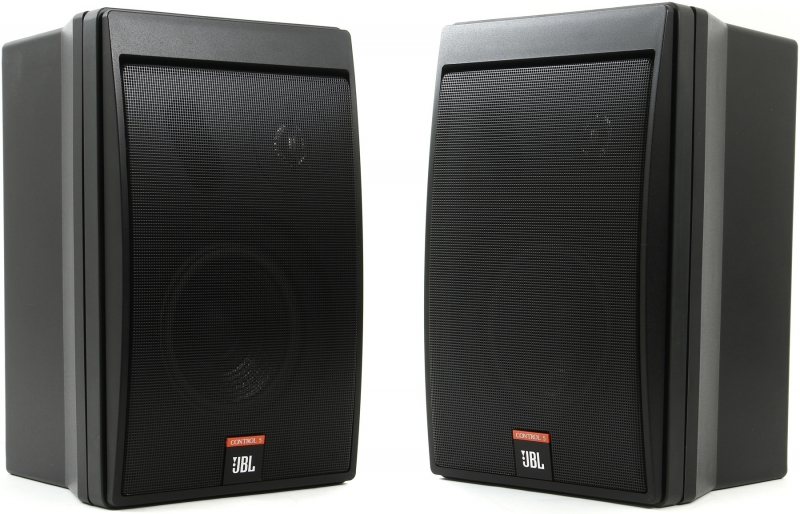

The Control 5TM is a high performance, wide range control monitor suitable for use as the primary sound source in a variety of applications.

Smooth, extended frequency response combines with wide dynamic capabilities to provide acoustic performance that makes the Control 5 ideal for recording studios, audio-video control rooms, remote trucks and broadcast studios. Clean, functional visual design makes the Control 5 also ideal for foreground music systems, moderate level sound reinforcement, discotheques and music playback systems.

A 165 mm (6½ in) low frequency driver provides solid, powerful bass response to 50 Hz. High frequency response to 20 kHz is handled by a pure titanium 25 mm (1 in) dome. Both transducers are magnetically shielded, allowing for use in close proximity to video monitors. The dividing network incorporates protection circuitry to prevent system damage and utilizes high quality components including bypass capacitors for outstanding transient accuracy.

Molded of dense polypropylene foam, with a finish of black, gray or white, the Control 5 enclosure offers a pleasing shape that fits easily into any environment. Wall, ceiling, rack and tripod mounting systems allow positioning of the system in exactly the right spot for optimum performance.

Key Features

Sensitivity : 89 dB SPL, 1 W, 1 m (3.3 ft)

High power handling (175 W pink noise) with integral protection circuit network

Molded enclosure with shielded magnet structure

Components : 165 mm (6½ in) low frequency loudspeaker, 25 mm (1 in) pure titanium dome tweeter

Optional mounting hardware

Available in two colors: black and white

Specifications

SYSTEM :

Frequency Response (± 3 dB): 75 Hz to 20 kHz

Power Capacity * : 175 W

Sensitivity ** : 89 dB SPL, 1 W, 1 m (3.3 ft)

Directivity Factor (Q) : 2.8

Directivity Index (DI) : 4.5

Nominal Impedance : 4 ohms

Crossover Frequency : 3 kHz

Polarity : Positive Voltage to + terminal causes outward low frequency cone motion

GENERAL :

Enclosure Material : Polypropylene structural foam

Finish : Black or white

Dimensions : 387 mm H x 251 mm W x 229 mm D, 15¼ in H x 9 7/8 in W x 9 in D

Net Weight (each) : 4.5 kg (10 lbs)

Shipping Weight (pair): 11 kg (24 lbs)

ACCESSORIES:

MTC-51 Wall Mount Bracket :

Allows the Control 5 to be mounted to any rigid vertical surface with a unique polymer ball and clamp design, In addition to omnidirectional movement about the ball, the speaker's connecting wires may be run internal to the clamp. Optional colors.

MTC-52 Ceiling Mount Bracket :

The same as the MTC-51 except that it is designed to be mounted to a rigid ceiling surface. Optional colors.

MTC-53 Rack Mount Bracket :

Allows the Control to be mounted in a standard 19 inch EIA equipment rack, with accommodation for vertical adjustment.

MTC-54 Tripod Mounting Adapter :

Allows the Control 5 to be mounted to the JBL MT4612 aluminum tripod in either a vertical or horizontal position.

MTC-56 Wall Mount Bracket :

Low cost, fixed angle wall mount bracket with safety chain, Note: Accessory attachment points on rear of the enclosure are ¼ x 20 threaded brass bushings

* Rating based on test signal of IEC filtered random noise with a peak-to-average ratio of 6 dB, two hours duration.
** Sensitivity is based on a swept 500 Hz to 2 5 kHz signal for an input of 2.0 V @ 4 ohms.
