18" bass-reflex subwoofer, super compact with top pole mount for satellite speaker mounting.

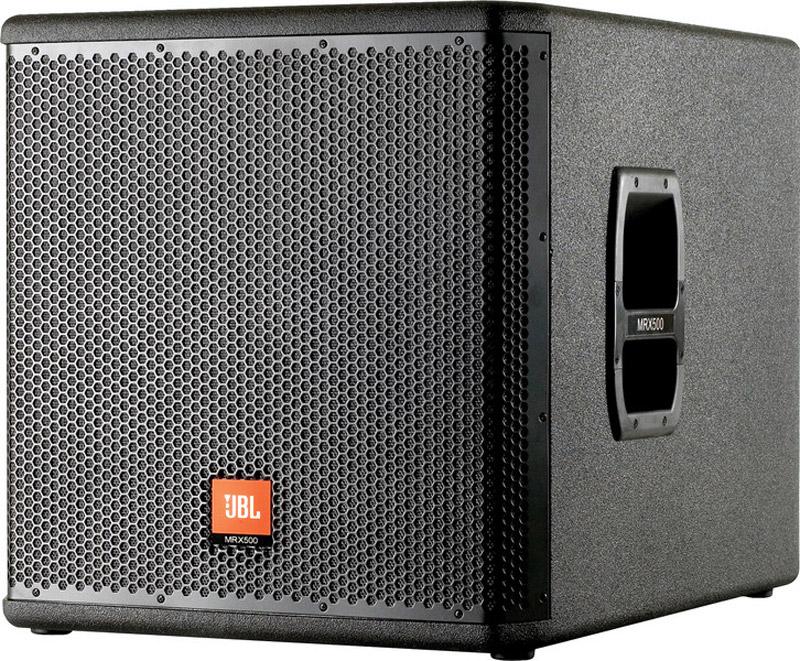

The MRX518S is a compact, high power subwoofer system containing a 2044G 457 mm (18") woofer in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. The system offers complete input connection flexibility for compatibility with a variety of cabling schemes.
The input panel incorporates a pair of Neutrik Speakon NL-4 connectors wired in parallel. The MRX518S is supplied with pins +1/-1 connected to the woofer. This may be easily reconfigured to work with cabling systems intended to drive subwoofers on pins +2/-2. For "Subwoofer/Satellite" configurations, the MRX518S is equipped with a top-mounted, 36 mm pole mount socket that can receive the optional SS3-BK pole. This can be used to mount speakers equipped with standard 35 mm pole sockets and weighing up to 50 kg (100 lbs). The enclosure is constructed of top quality plywood, coated in JBL's rugged DuraFlexT finish and is braced to maximize low-frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
Features
18 inch, 2044G driver for extended low-frequency outputLarge vent area for reduced distortionLow profile and compactTough DuraFlexT finish enclosure
Applications
Live performance venuesMobile and fixed DJ systems
Specifications
Frequency Range
40 Hz - 200 Hz
Frequency Response
45 Hz - 200 Hz
Sensitivity
94 dB SPL; 100 dB SPL
Nominal Impedance
4 ohms
Power Capacity (Continuous / Program / Peak)
500 W / 1000 W / 2000 W
400 W / 800 W / 1600 W
Rated Maximum SPL
127 dB SPL
(133 dB SPL)*
Dimensions (H x W x D)
560 mm x 535 mm x 700 mm
(22 in x 21 in x 27.5 in)
Weight
32.5 kg (72 lb)
Low Frequency Driver
1 x JBL 2044G 457 mm
(18 in) woofers
* Calculated on half space condition
