John Hardy M-1 w/ 3channels

The M-1 Mic Preamp is among the finest mic preamps in the world. It provides the accuracy and transparency that is missing in other mic preamps.

No matter what your application, the M-1 will provide superior sound quality. The world's best input transformer (Jensen JT-16-B), best op-amp (990 discrete op-amp) and the elimination of all capacitors from the signal path combine to provide the highest performance.

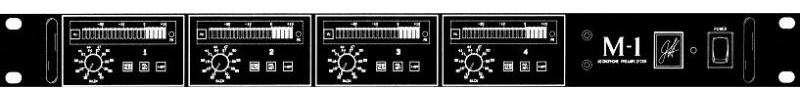

The M-1 has a 19" wide mainframe rack-mount chassis (1.75"H x 19"W x 8"D) and can be ordered with 1 to 4 channels. There are two meter options and the best Jensen output transformer (JT-11-BMQ) is also available as an option. Additional channels and options can be easily added later up to the total capacity of the mainframe.

The M-1 was introduced in 1987 and while sonically identical to the M-2 there are a few control differences. The M-1 has a two-section gain-pot providing continuously variable adjustment in two overlapping ranges that are selected by the "HIGH GAIN" switch. (The M-2 has a 16 position gain-switch with 1% metal-film resistors providing accurate and repeatable gain settings. Since the "HIGH GAIN" switch isn't necessary, the M-2 is available with either a "20 OHM MIC" switch OR a "20dB PAD" switch).
Features
  • JT-16-B Input Transformer. Jensen's best mic input model.
  • 990 Discrete Op-Amp. Faster, quieter, more powerful and better sounding than typical monolithic op-amps.
  • Elimination Of All Coupling Capacitors From The Signal Path. Results in less degradation of the audio signal.
  • Specifications
  • Dual Range Gain Control And 'High Gain' Switch. Provides great feel and resolution for easy and accurate adjustments.
  • Polarity Reverse Switch.
  • Phantom Power Switch.
  • All Front Panel Switches Are LED Illuminated.
  • Gold Plated XLR Connectors for maximum reliability.
  • Ground Lift Switch On Each Channel. Helpful for eliminating ground loops.
  • Toroidal Power Transformer With Additional Shielding. Eliminates hum problems so no external power supply is needed.
  • Universal Power Supply. Internal switch provides six primary voltage choices to accommodate use anywhere in the world.
  • Chassis Ground Isolation Switch. Helpful for eliminating ground loops.
  • Built To Order, the way YOU want It. Various options can be easily field installed at a later date.

  • Options:
  • VU-1 meter. Very accurate and informative 20 segment LED meter card with separate peak LED for monitoring preamp output.
  • PK-1 Peak LED metering only (not required if VU-1 is installed).
  • JT-11-BMQ Output Transformer. Jensen's best line output transformer.
  • Pin 2 Or Pin 3 High. Can be ordered either way and internal jumpers make changes in the field easy.
  • Reviews
    Price *

    $3069.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the M-1 w/ 3channels, please visit the website of John Hardy
