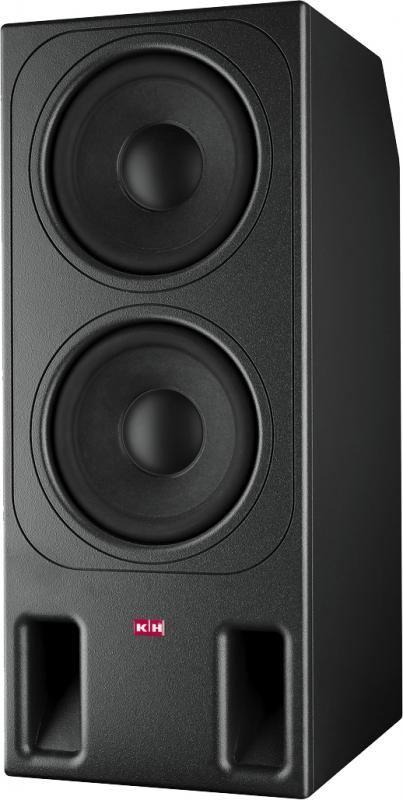

The high-performance O 900 studio subwoofer is the ideal complement for the O 500 C studio monitor. Precise bass reproduction is achieved down to 17 Hz (- 1.5 dB). The 120 liter cabinet gives a high maximum sound pressure output with a flat frequency response. This is due to the ingenious enclosure design, as well as the use of uncompromisingly constructed drivers.
The O 900 can use the analog subwoofer output of the O 500 C and an external amplifier
(KPA 2220 recommended).

Extremely powerful studio subwoofer with two extra long excursion 12" drivers

Bass reproduction down to 17 Hz

Expressive, precise, accurate bass

High maximum output level

Bass extension for the O 500 C studio monitor

Used with the subwoofer output of an O 500 C

Technical Data O 900 + O 500 C

Acoustical

-3 dB free field frequency response: 15 Hz - 220 Hz, ± 3 dB

Pass band free field frequency response: 17 Hz - 200 Hz, ± 1,5 dB

Self generated noise level at 10 cm: < 20 dB(A)

THD < 0,5% at 1 m distance from: 01 dB SPL (> 30 Hz)

Max. SPL in half space at 3% THD in 1m: 116.4 db SPL

Max. SPL averaged between: 40 Hz and 90 Hz

Electrical

Recommending signal processing: O 500 C Subwoofer output

Recommend amplifier: KPA 2220

Mechanical

Cabinet surface: Painted

Color standard: Anthracite (RAL 7021), white (RAL 9010), silver (RAL 9006)

Baffle cover: Optional removable metal grille

Drivers: Magnetically shielded

Woofer: 2 x 300 mm (12")

Mounting points: Supporting stand socket

Height x width x depth 950 x 400 x 512 mm (37.4" x 15.8" x 20.2")

Net volume internal 120 liters

Weight 52 kg (114.5 lbs) w/o electronics

Accessories LH 33, LH 37, FO 900

Delivery Includes

1x O 900

1x Operation manual
