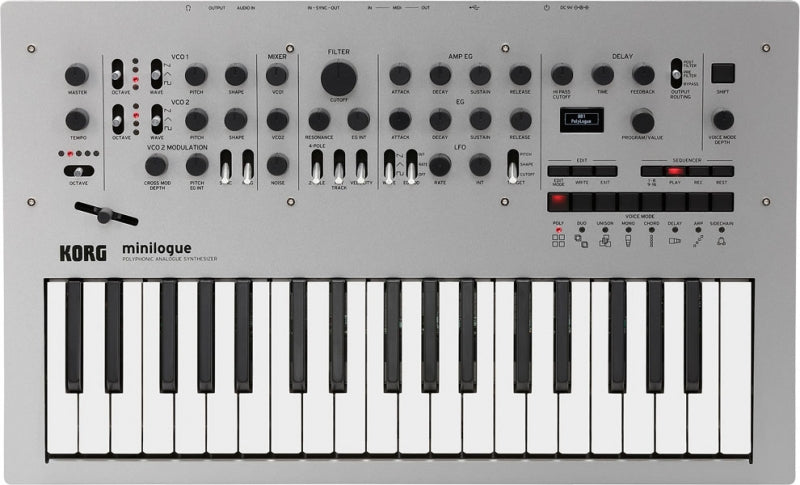

Meet minilogue; the stylish, innovative, 37 slim-key fully programmable analog polyphonic synthesizer. A next-generation polyphonic analog synthesizer - and so much more
minilogue's newly developed analog synthesizer circuit delivers polyphony and full programmability at a great price --- exactly what today's musician needs. With the minilogue, you can get your hands on the powerful sound that's only possible with real analog, and find inspiration with features including a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display. All of these seamlessly integrated features make minilogue as fun and easy to use as it is powerful. It's the next-generation analog synthesizer for musicians of all types.
True analog sound.
The synth circuits for minilogue are all new ground up designs, delivering a synthesizer experience like no other. Unprecedented in this class, it's a four-voice polyphonic true-analog synth with an interface that's designed for accessibility. Whether you're performing live or producing in the studio, the minilogue is the fastest way for the user to explore and implement real analog synthesis in any situation.
The structure consists of 2VCO, 1VCF, 2EG, 1VCA, and 1LFO. The minilogue's unique wave shape capability lets you fine tune the oscillators' harmonics, creating the most divine sounds and compositions. The minilogue is also equipped with a variety of powerful types of modulation including cross modulation, oscillator sync, and ring modulator, as well as a delay with a high-pass filter. Powerful sound creation and rich variety are the true hallmarks of an analog synthesizer.
Polyphony and Presets - Perfect.
minilogue goes beyond analog synths in its price range by adding 200 preset locations. Select a program for instant access to great sounds - - ranging from thick basses to deep pads to brilliant polyphonic leads and atmospheric sounds. No need to have deep synthesis knowledge; just choose a sound and tweak - a workflow that is very familiar with musicians today. For those who want to dive deeper into the heart and soul of minilogue's engine, the minilogue hold 200 programs; with 100 editable factory programs included, and 100 locations serving as blank canvases on which to create your next analog masterpiece. Each preset can also hold a step sequence and delay settings along with the sounds you create.
In addition, the Sound Librarian lets you manage your program data.
Selectable voice modes let you freely configure the four voices for performance. The voices can be set to four note polyphony for chords or layered for thick basses and leads. Other modes cover a range of sounds from octave shifted bass explosions to delicately staggered layered triggering.
Eight voice modes
POLY - operates as a four-voice polyphonic synthesizer
DUO - operates as a unison two-voice polyphonic synthesizer
UNISON - operates as an all-unison mono synthesizer
MONO - operates as a mono synth with sub-oscillator
CHORD - produces chords
DELAY - voices 2--4 sound consecutively at a delay following voice 1
ARP - an arpeggiator operates with up to four voices
SIDE CHAIN - when a note sounds, the volume of the preceding voice is lowered
Get creative with the intuitive 16-step sequencer with motion sequence recording capabilities, and make your sound truly come to life. The minilogue provides real-time recording with overdubbing, and step recording that lets you record simply by consecutively specifying notes, giving you a great way to create phrases and performances.
Oscilloscope visualizes the sound.
The OLED display will show the waveform as you sculpt your sound. Visual feedback is both educational and entertaining, and represents a first on a hardware synthesizer.

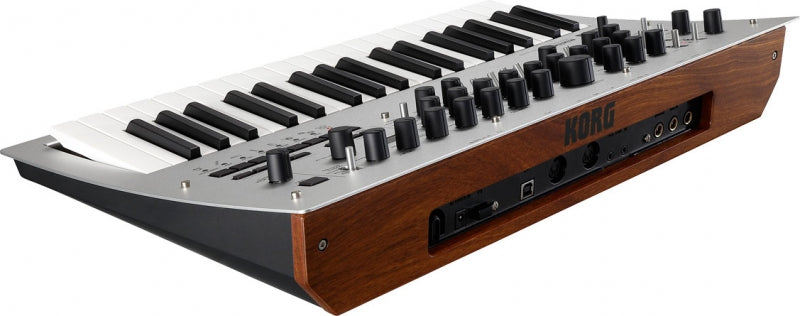

The uniquely curved, sand-blasted 2mm aluminum front panel, metal shaft potentiometers, solid, chassis-mounted metal shaft potentiometers and rubber-coated knobs give the roadworthy minilogue a standout look and feel to complement its powerful and dynamic sound creation capabilities.
Sync with groove machine.
In addition to the standard MIDI connectors, the minilogue provides a sync connector that can be easily connected to Korg's groove machines. Connect this to a volca series unit, an electribe, or the SQ-1, and experience a session with synchronized sequencer playback.
A dedicated soft case
With a dedicated soft case SC-MINILOGUE, you can transport easily the minilogue.
Flexible, powerful four-voice analog synthesizerFully programmable, with 200 program memories (100 sounds included)Voice Mode lets you flexibly configure the four voicesAutomatable 16-step polyphonic note and motion sequencerOscilloscope function shows the waveform visuallyRugged and stylish with aluminum top panel, chassis-mounted pots, rubber-coated knobs, and real wood back panelMIDI, USB MIDI, and Audio Sync for all types of in-studio and live connectivity, including direct sync with SQ1, volca, electribe, and more
Keyboard: 37-keys (Slim-key, velocity sensitive)Sound Generation: Analog synthesisMaximum Polyphony: 4 voices
200 programs (100 Presets / 100 Users)Each program includes voice mode and sequence data settingsUp to eight favorite programs can be registered
8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain), VOICE MODE DEPTH can vary different parameters in each mode
Main Synthesis Parameter
VCO1 Octave, Wave (Saw, Triangle, Square), Pitch, ShapeVCO2 Octave, Wave (Saw, Triangle, Square), Pitch, ShapeVCO2 MODULATION Cross Mod Depth, Pitch EG Int, Sync, Ring MIXER VCO1, VCO2, NoiseFILTER Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, VelocityAMP EG Attack, Decay, Sustain, ReleaseEG Attack, Decay, Sustain, Release LFO Wave (Saw, Triangle, Square),EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)DELAY Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
16-step polyphonic sequencerMotion sequence can be used on up to four parameters
41 dedicated panel controls deliver immediate parameter accessA slider can control different parameters for each program Display Real-time OLED oscilloscope provides visual feedback of parameter changes
Headphones (6.3mm stereo phone jack)Output (6.3mm monaural phone jack)Audio In (6.3mm monaural phone jack)Sync In (3.5mm monaural mini jack)Sync Out (3.5mm monaural mini jack)MIDI InMIDI OutUSB Type BPower Supply AC adapter (DC9V)Power Consumption 8 W
Dimensions (W x D x H)
500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"Weight 2.8 kg / 6.17 lbs.
Included Items AC adapter
