Half Rack Receiver with analog and digitalDante network audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audioquality and ultra-low latency



The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz.
The DSQD Receiver is a four-channel design with a host mainframe that contains the DSP, microprocessor,
antenna multicoupler and control interface.

Antenna ports on the rear panel accept input from remote antennas, with a "loop-thru" output to another
mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors)
on the front panel.

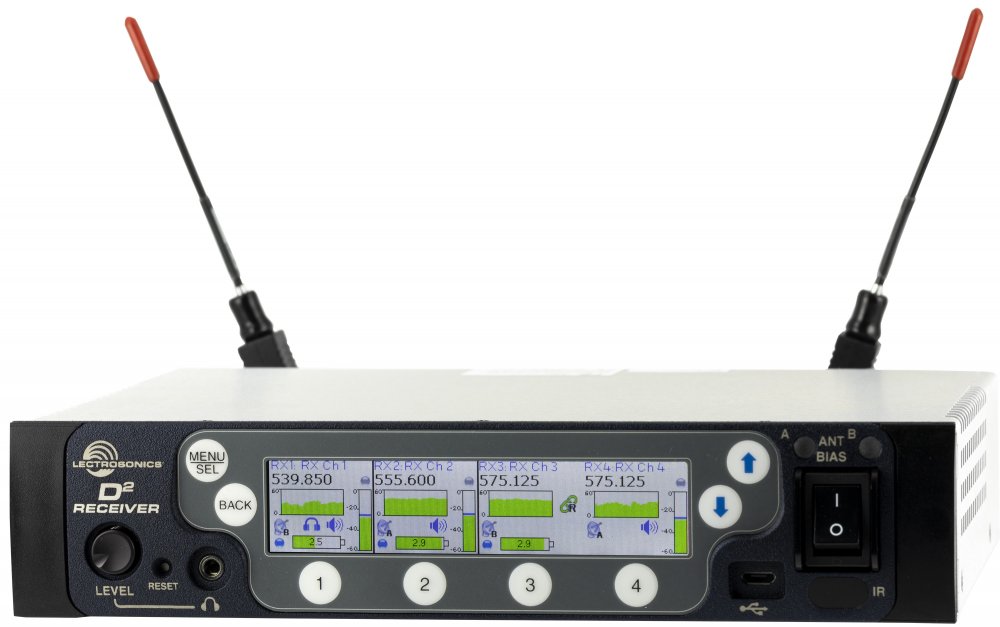

DSQD Front Panel

Headphone Monitor
Monitor any individual audio channel, or a stereo mix between pairs. Volume knob recesses into front panel.

LCD Control Panel
Easy navigation of all setup parameters is provided by a full color, backlit, LCD screen and membrane push
buttons. The high resolution display provides fantastic monitoring of all receiver parameters.

2-Way IR
A bidirectional IrDA interface allows quick syncing of settings and encryption keys to transmitters with the
push of a button.

USB Port
Easily interface to Wireless Designer or third-party software via the standard USB port, greatly accelerating
setup time and expanding system monitoring capabilities.

LED Indicators
Two LEDs provide positive indication of antenna bias power state.

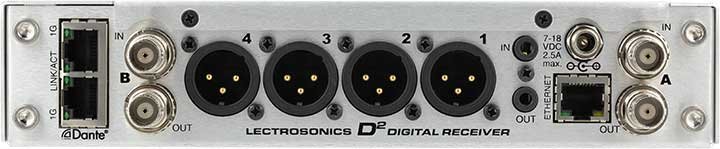

DSQD Rear Panel

Antenna Ports
Antenna inputs and outputs to an additional DSQD allow "stacking" of up to three mainframes with a single
pair of antennas.

Audio Outputs
Four full-size XLR jacks provide analog outputs.

Dante Ethernet Ports
Dual Dante Ethernet ports provide the ability to daisy chain multiple DSQDs onto a Dante Audio Network.

Ethernet Port
Easily interface to Wireless Designer or third-party software via the control Ethernet port, greatly accelerating
setup time and expanding system monitoring capabilities.

Power Supply Input
The DSQD is powered by 7 to 18 VDC from an external source capable of 2.5 amps.
  • Four-channel, half-rack design
  • Continuously tunable tracking filters covering 470.100 - 614.375 MHz
  • Compatible with DSW, Duet and Digital Hybrid Wireless transmitters
  • Built-in wideband antenna multicoupler with loop-thru for additional receivers
  • Antenna bias power enabled from the front panel (fused and over-temperature protected)
  • IR bi-directional port for transmitter setup
  • Analog and Dante audio outputs with TalkBack (in applicable RX modes)
  • Ethernet and USB interface
  • Offline full-system frequency coordination
  • Operating Spectrum: 470.100 - 614.375 MHz
    Frequency Adjustment Range: 25 kHz steps
    Sampling Size and Rate: 24-bit, 48 kHz
    Digital Modulation: 8PSK with Forward Error Correction
    Data Encoding: Proprietary ADPCM
    Encryption: AES 256-CTR (per FIPS 197 and FIPS 140-2)
    Latency:
    Digital Source: 1.0 ms plus Dante network
    Analog Source: <1.4 ms
    Audio Performance:
    Frequency Response: 20 Hz - 20 KHz, +\-1 dB
    THD+N: 0.05% (1 KHz @ -10 dBFS)
    Dynamic Range: 108 dB A-wtd, NR=NORMAL
    Adjacent Channel Isolation: >85 dB
    Diversity Technique: Noiseless antenna switching
    Sensitivity: -98 dBm for 10-5 BER
    Antenna Inputs/Outputs: Dual BNC female, 50 ohm impedance
    Audio Outputs:
    XLR: Balanced, -35 to +8 dBu
    Headphone: 1/4 inch phone jack
    Dante: RJ45
    External DC Power: 7 to 18 VDC; 2.5A (max)
    Weight: 1.95 lbs.; 880 grams
    Dimensions: 8.375 x 1.75 x 7.375 in. (213 x 44.5 x 187 mm.)
