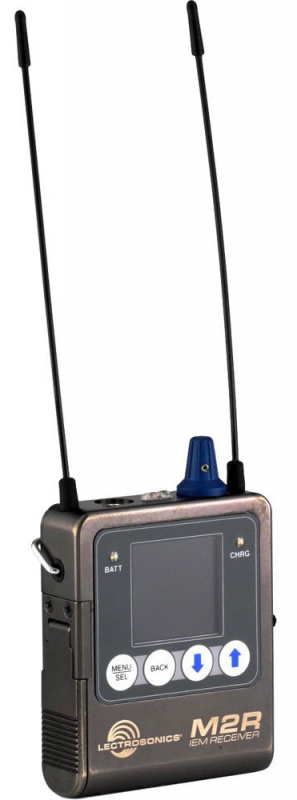

The M2R bodypack receiver employs advanced antenna diversity switching during digital packet headers for seamless audio
The 24 bit digital audio stream guarantees high resolution sound quality with wide dynamic range, low noise floor, and rock-solid stereo image. The receiver can select from stereo, mono from left channel only, or mono from right channel only, giving the unit flexibility in terms of the application. The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive headphones or earphones to sufficient levels for stage performance or other environments with significant background noise. A high-resolution, color LCD allows for a wide range of menu options, including precise limiter settings, using detailed graphics. The M2R runs on two AA batteries for an operating time of over 4 hours with alkaline cells.
IEM (Wireless Monitor) receiver with digital RF24-bit digital audioIR (infrared) port for fast setupHigh resolution, color LCDStereo or mono operationLow latency of 1.4 ms with analog inputs
Operating Spectrum: 470.100 - 614.375 MHz
Modulation Type: 8PSK with Forward Error CorrectionOccupied
Latency (overall system)
Digital Source: 1.0 ms plus Dante networkAnalog Source:
