Lynx Studio Technology E22

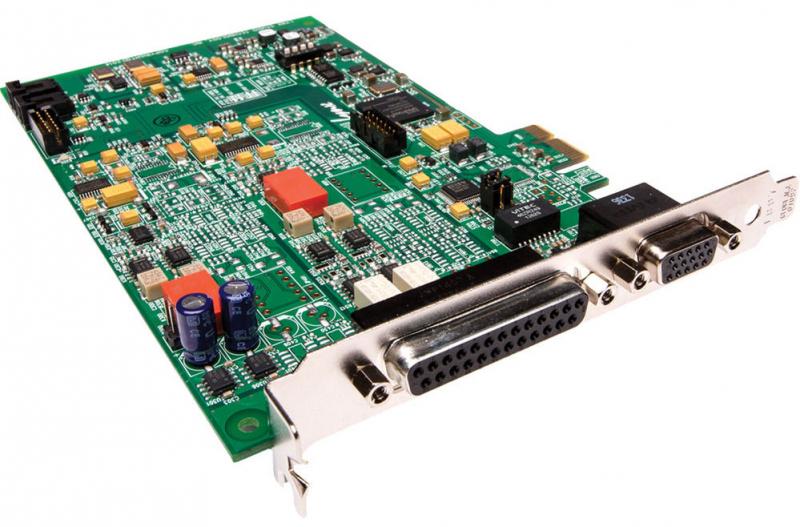

Built upon the legacy of the LynxL22 card, the E22 takes a leap forward to offer the highest performance A/D and D/A conversion system ever incorporated into a PCI Express card.
The E22 PCI Express cards are designed to satisfy the most demanding professional recording and broadcast studio requirements. In fact the E22 performance even eclipses that of the Lynx Aurora converters. Since 1998, Lynx has provided high-reliability add-in cards engineered for 24/7 operation. The E series improves upon this tradition with upgraded enhancements for I/O protection and shielding of computer noise and their associated power supplies.
The E22 cards utilize sophisticated design methodologies to achieve high performance levels. Components are meticulously chosen to support low noise and distortion. Circuit topologies are compact and cancel external noise pickup. Capacitors with solid dielectrics provide high reliability and long life. Considerable effort is applied to PCB layout which focuses on component placement and routing of traces, as well as copious use of copper planes for shielding and power distribution.
The power available from the PCI Express bus offers a particular challenge due to the lack of a negative supply rail which is required to power analog amplifier stages. The E series utilizes a unique scheme to generate supply rails that are extremely low noise while being very tolerant of poorly designed computer power supplies.
The use of field-programmable-gate-arrays (FPGA) is another core technology pioneered for use in audio devices by Lynx. The E series uses the latest devices with a wealth of resources for parallel processing in our 16 X 8 mixer and V2 DMA engine which maximizes throughput on the PCIe bus while minimizing CPU workload. As always, FPGA's allow for field-upgradeability to add features in the future.
Two channels A/D and D/A conversionTwo channels of AES3 or S/PDIF I/OSample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHzExtremely low-jitter SynchroLock sample clock generatorFixed or adjustable trim level on all analog I/O's, relay controlledAutomatic output muting on power on/off (de-thump)FPGA-based on-board hardware mixingV2 DMA Engine promotes extremely low-latency operationDrivers for Macintosh OS X, Windows 7 & 8. Thunderbolt compatible.Lynx Mixer applicationRoHS compliantDesigned and built in the USACables Sold Separately. CBL-L22Audio for analog I/O and CBL-L22Sync for digital and word clock I/O
