Advanced USB MIDI Control Surface

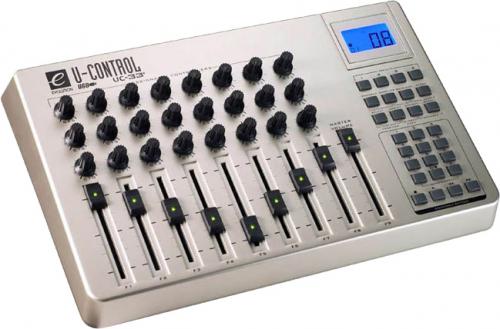

The UC-33 is the affordable, easy-to-use remote USB controller for any computer music system or MIDI setup. It allows instant and simultaneous control of up to 47 different parameters-and with 33 memory locations, changing setups is fast and easy. The powerful Snapshot feature instantly makes all controllers live for real-time, on-the-fly editing, and the unique Control Mute function mutes the output of all controllers, allowing users to position them before tweaking, thereby preventing parameters such as filter cut-off or amplitude levels from jumping abruptly during performance. The unit also features a drawbar mode for the sliders, which greatly enhances the experience of playing virtual instruments such as Native Instruments' B4 virtual Hammond organ. Use the UC-33 with a conventional MIDI setup, for live performances, or as a remote control for your existing studio rack. 30 pre-configured presets allow immediate control of the most popular virtual instruments and host applications like Reason, Live, Logic, Cubase SX, Native Instrument's B4 and more.
The unit also ships with 5 color overlays for the front panel customized for popular software programs such as Ableton Live, Pro-53, B4 and a general Mixer Channel Strip plus a blank which users can tailor to their personal setup needs.
Features
24 fully-assignable rotary knobs
9 full-size assignable ALPS faders with light indicators
Independent channel assign for all 47 controllers
33 memory locations for storing your settings, including 4 one-touch access buttons
5 color overlays for popular music software like Pro-53, B4 and Live
14 assignable buttons provide fingertip control over sequencer functions and act as numeric keypad for data entry
Controller mute function allows positioning before tweaking
Snapshot mode sends all controller values simultaneously
Multi-purpose LCD display shows controller assignments
Drawbar mode for sliders allows realistic control of classic organ sounds
Sys-ex memory dump
Global channel assign allows controllers to command up to 16 different channels at the touch of a button
Operates with music software or standalone with MIDI gear
Sys-ex librarian software loads, saves any combination of setups for your studio (Mac and PC)
Specifications
General
power: USB or 9V DC, 250-300mA center-positive power adaptor (not included)
size/weight: 13" x 8-3/8" x 3"
Compatibility
Windows XP and OS X class-compliant
VST
OMS
DXi
Minimum System Requirements (PC)
Windows 98/ME/2000/XP*
Pentium II 300MHz; 128MB RAM
USB port
approved MME or ASIO compliant soundcard
* Home and Professional Edition only. Windows Media Center Edition is not currently supported.
Minimum System Requirements (MAC)
iMac, G3 or better with USB
OS 9 or OS X
