Manley Labs Reference Mono Gold

When fidelity is the goal, the Manley Reference Gold Mic is the solution. Its nimble CK12-style American-made capsule, open grille, and continually adjustable pickup pattern design

The MANLEY GOLD REFERENCE MULTI-PATTERN MICROPHONES are a statement, quite simply, of the finest microphones that money can buy in the pursuit of truly accurate musical recordings. The Gold Reference Series employ our own design of large capsules (1.25 inch overall, 1 inch diaphragm diameter) which are executed to precise tolerances made possible by modern micro-milling machinery available today in California. The capsule rings and back-plates are milled from solid brass. The gold diaphragm film comes from Germany and is tensioned using proprietary techniques by David Josephson ensuring capsule-to-capsule constancy, combined with the speed, "air", and superb ultra-high frequency response you have only dreamt about.

The all-tube electronics in the MANLEY REFERENCE SERIES MICROPHONES are built around two triodes in cascade forming an entire gain-block. We have recently switched to a dual-triode 12AT7 tube, easily obtainable and replaceable, mounted in a ceramic socket. (We originally used 6072A until it became impossible to find quiet ones out of the NOS dreck left on the market, then we used 12AX7 for awhile.) The output is coupled through a MANLEY output transformer of unparalleled quality and substantial physical size employing nickel laminations with "hum bucking" bi-filar windings, encased in mu-metal. The polar pattern control is continuously variable between the OMNI, CARDIOID, and FIGURE 8 positions vastly increasing this mic's versatility. The Gold Mics make it possible to exactly tailor the proximity effect to achieve the desired character.

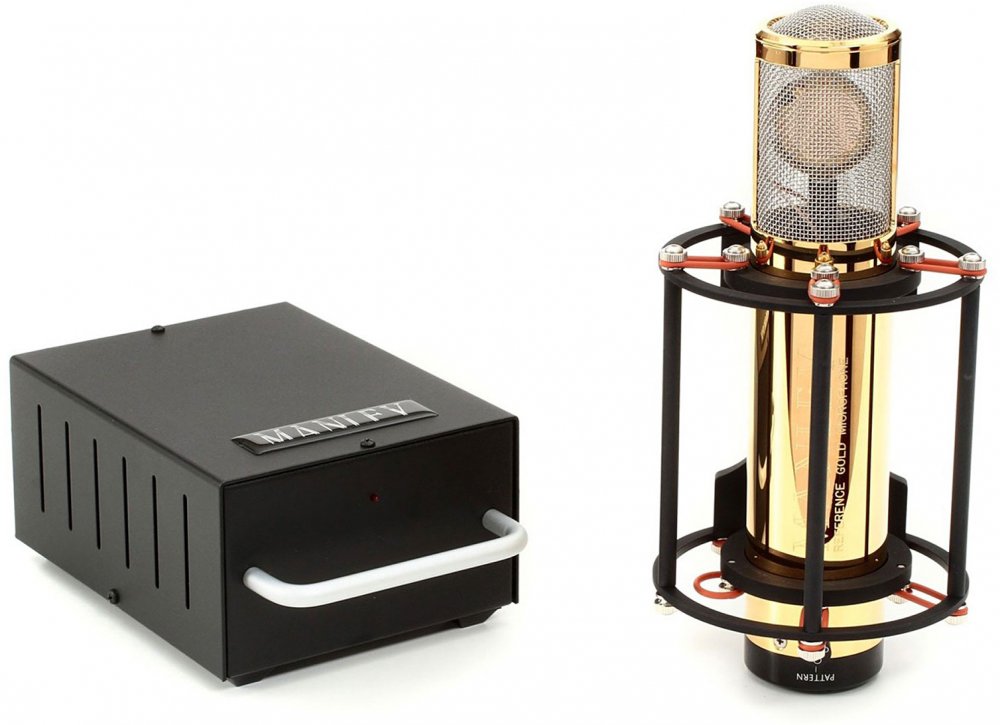

We have chosen a very open weave stainless-steel grille for the capsule window which allows all the highs to reach the capsule unimpaired letting the engineer choose if, when, and how much pop screen is appropriate. As a result, the Reference Gold reaches to the furthest extremes of highs and lows with gorgeous natural acoustic smoothness. Some engineers tell us it sometimes "hears" more than they do! A locking 6-pin XLR connector for the 30 foot power supply cable carries the stringently filtered B+ and regulated heater voltages from the separate dedicated power supply. The audio signal exits the PSU via a traditional 3-pin XLR jack. The microphone body is machined from brass providing excellent shielding properties, polished to a high lustre, then plated with 24 karat gold for an impressive finish, inspiring confidence in artists and producers.

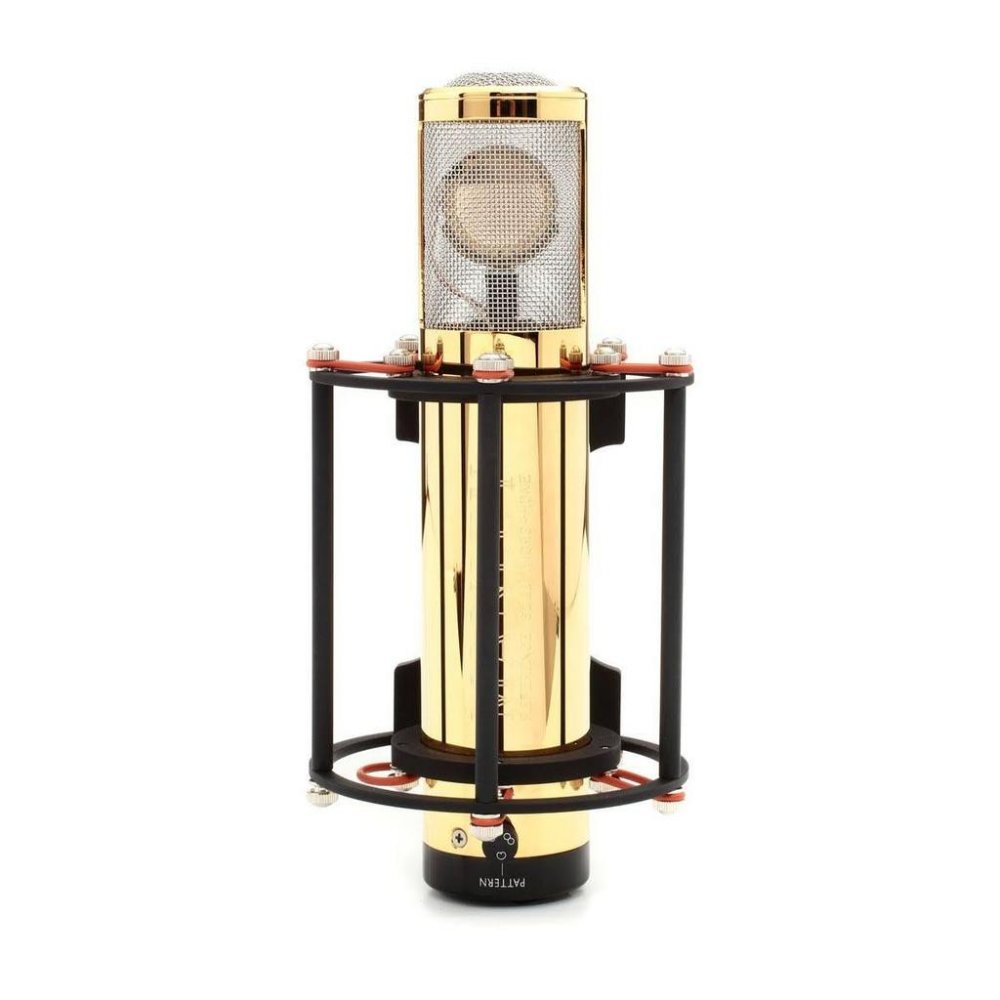

Our proprietary precision suspension system is provided with each REFERENCE MICROPHONE (the capsule itself is mounted onto a neoprene-rubber shock-mount.) Because the entire working "guts" of the microphone may be removed for service in one piece from the housing, it is envisioned that the microphone need not be removed from the suspension. We also provide a very useful swivel of our own design with every REFERENCE MICROPHONE; its T-bar handle and locking clutch action require no tools to adjust. And no MANLEY microphone would be complete without a genuine leather capsule protector which slips (and ties) onto the end of the microphone to protect the capsule when not in use.
  • All-Tube triode design 12AT7 (2011 build. Previous versions used 12AX7 and 6072.)
  • -10 dB switchable pad
  • Frequency response: 10Hz-30KHz
  • Sensitivity: 17mV/Pa
  • Noise typically -120dB EIN
  • Max SPL: 150dB
  • Actual output impedance 200 Ohms
  • Weight: 2.25 lbs (mic), 2.5 lbs (PSU)
  • Size: 4.5" x 9.7" x 4.5" (mic), 5" x 8.2" x 3.4" (PSU)
  • Outboard Power Supply is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer re-wiring via internal jumpers and fuse value change.
  • Mains Voltage Frequency: 50~ 60Hz
  • Mains Fuse: 250mA @ 100~120V; 125mA @ 220~240V operation
  • Power Consumption: 70mA @ 120V = 8.4 Watts
