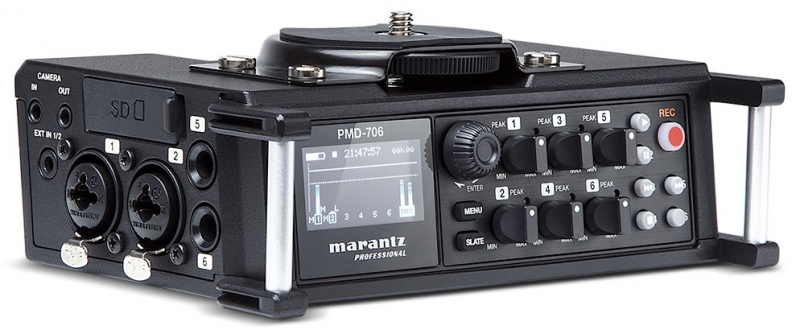

Designed for the advanced DSLR professional, this 6-channel recorder excels attached to a camera, camera rig, or while used in a bag as a field recorder.
Featuring (4) XLR combo jacks for MIC & LINE level sources, and (2) ¼" TRS jacks for supporting LINE/MIC level, six high-quality audio tracks can be recorded at once. There is also a 3.5mm TRS input for extra versatility. Utilizing the Dual-Record function that creates a duplicate track at a reduced level, up to (3) 'safety tracks' can be created for critical applications. ¼" TRS to XLRF breakout cables included for connecting balanced mic cables to inputs 5 and 6.
The PMD-706 comes standard with file encryption ability to keep recordings safe from unauthorized access - offering the maximum security for sensitive information. This works by encrypting WAV files to WAS files. These encrypted files utilize a 4-digit password protection feature so that only those with the 4-digit key can open and play the files. To play encrypted files on a computer, use the DMP Mark Editor v2.0.0 software - available in the Downloads section.
6-channel recording up to 96kHz/24-bitSD/SDHC/SDXC recording media(4) XLR/TRS combo jacks for MIC and LINE level inputsHigh Definition Discreet microphone preamps(2) 1/4" TRS jacks for LINE level inputs48V phantom power for professional condenser microphones5-position lo-cut filter, limiting function and M/S microphone decodingDual-recording mode creates a duplicate track at a reduced level (safety track). Total of (3) safety tracks possible.3.5mm stereo jack with plug-in power for consumer microphonesDSLR camera mounting bracketTripod mounting socket on bottom of recorder
Connectors
(4) XLR+1/4" (6.35mm) inputs(2) 1/4" TRS (6.35mm) inputs(2) 1/8" (3.5mm) inputs(3) 1/8" (3.5mm) outputs(1) Micro-USB port, Type B
Power
Via (4) AA batteries (Alkaline or NI-MH), USB bus power, or a USB adapterConsumption: 2 W (with phantom power off), 4 W (with 6 channels and phantom power on)Operating Temperature: 41 - 140°F / 5 - 60°COperating Humidity: 25 - 85%, non-condensing
Battery Life: up to 5.5 hours (with phantom power off)
Supported SD Media
SD card (64 MB - 2 GB)SDHC card (4 - 32 GB)SDXC card (48 - 128 GB)
Recording Channels: 6-channels (stereo x 3, mono x 6), 4-channels in Dual Stereo mode, 4-channels max with 96 kHz sampling rate
Recording Formats
WAV (44.1, 48, or 96 kHz; 16- or 24-bit)BWF (44.1, 48, or 96 kHz; 16- or 24-bit)
Recording Modes: Mono, Stereo, Dual Mono, Dual Stereo, Mid/Side Recording, Mix
Audio Performance
Signal to Noise
93 dB (Line In -> Line Out)88 - 90 dB (Mic In -> Line Out)93 dB (Ext In -> Line Out)93 dB (Camera In -> Line Out)92 dB (Line In -> Headphone Out)92 dB (Line In -> Camera Out)
Frequency Response: 20 Hz - 20 kHz (±1.0 dB)
Input Impedance: 2 k
Phantom Power: 48V (±4V, 10 mA/channel), 24V (±4V, 10 mA/channel)
Audio Channels
Inputs 1, 2, 3, 4 (set to MIC or MIC + phantom power)Input Impedance: 4.7 kMaximum Input Level: -8 dBuMic Input Gain: +28 dB (Low), +47 dB (Mid), +59 dB (High), +64 dB (Hi Plus)
Inputs 1, 2, 3, 4, 5, 6 (set to LINE)
Input Impedance: 4.7 k
Standard Input Level: 0 dBu
Maximum Input Gain: +12 dBu
Line Input Gain: +0 dB (Low), +10 dB (mid), +20 dB (High), +30 dB (Hi Plus)
External Inputs 1 & 2
Input Impedance: 10 kMaximum Input Level: -1 dBVLow +9 dB, Mid +20 dB, High +35 dB, Hi Plus +45 dB
Camera Input
Input Impedance: 1 kStandard Input Level: -10 dBVMaximum Input Level: +3 dBV
1/8" (3.5mm) Line Output
Output Impedance: 1 kMaximum Output Level: +3 dBV
1/8" (3.5mm) Camera Output
Output Impedance: 100Maximum Output Level: -4 dBV
Dimensions (width x depth x height): 4.3" x 6.5" x 2.0" (10.9 x 16.5 x 5.1 cm)
Weight: 1.20 lbs (0.54 kg)
