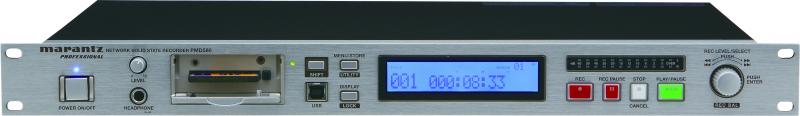

The Marantz PMD580 is a single rack-space digital recorder that adds advanced network control and automatic archiving to the capabilities of the popular PMD line.

Like its line mates, the PMD580 uses proven, stable Compact Flash (CF) as its recording medium, with the inherent reliability of no moving parts. But the PMD580 takes convenience and functionality to another level, incorporating Ethernet connectivity and an internal, browser-style interface that allows centralized control of all operations including scheduling of recordings, machine setup, and file transfer.

---

Highlights

Choice of 24-bit or 16-bit Recording onto Compact Flash (CF) Card

Ethernet Connectivity and Internal Web Browser

Automatic Archiving of Recorded Files

Easy Recording

MP3 and WAV File Formats

Menu-selectable Quality Settings

Balanced XLR Inputs and Outputs

AES/EBU and S/PDIF Digital Inputs and Outputs

RS232 Control Port

No Moving Parts

FAT32 File Structure

Contact Closures with Menu-driven Control

Professional Quality Digital Recording
With a choice of 16- or 24-bit recoding in a variety of file formats and quality settings, the PMD580 can handle everything from orchestral music to meetings and lectures with equal aplomb. Its FAT32 file structure is future-proof, handling any size CF card (up to 2 terabytes) behind its front-mounted security door.

Flexible File Formats
The PMD580 can record uncompressed WAV or compressed MP3 files across a variety of quality settings, with sample rates up to 48 kHz. Assignable options are accessible from the menu, making it simple even for inexperienced operators to select the best option.

Ease of Operation
With its intuitive front panel controls and menu-driven setup, the PMD580 is easy to use. A front-panel screen guides the user through selection of file format and quality settings, while a 12-stage stereo VU meter and headphone output with volume control enable quick and sure confirmation of recording status.

System Compatibility
With full professional inputs and outputs, both analog and digital, the PMD580 integrates easily into any system. Analog I/O includes both balanced XLR and unbalanced phono plugs, while digital capabilities include both AES/EBU and S/PDIF inputs and outputs. Beyond that, an RS232C port enables remote control in Crestron and AMX systems, while an Ethernet connection makes the PMD580 a full-fledged network device for both acquisition and playback.

Network Operation and Control
With its Ethernet connectivity and internal Web GUI, the PMD580 appears as a network device, allowing full remote setup and control. This browser-style interface is integral to the design, requiring no extra software and compatible with both PC and Mac network environments. Recording sessions can be scheduled in advance, and recorded files can be downloaded directly to a computer.

Automatic Archiving
For ultimate convenience, an automatic archiving feature allows the downloading of recorder files, eliminating the need to physically walk the CF card back to the storage server. With the ability to lock out front panel controls and track real time, the user can confidently schedule the day's recording to be archived to a designated computer or server at the end of the day, so the PMD580 is always ready to handle the next day's activities.

Convenience Features
The PMD580 includes numerous functional recording and editing features. Files can be marked and divided either manually while recording, as well as automatically in predefined increments, making it easier to sort through hours of recorded materials. Whether used manually, via RS232 control or via its IP network interface, the PMD580 offers both comprehensive recording capability and ease of operation, making it the ultimate solid state recorder for the installation market.

Digital Audio System



System
Solid State Recorder


Usable Media
CF Memory Cards, Microdrive Cards


Recording and Media Methods
MP3
WAV

MPEG1 Layer III Compression
16/24 Bit Linear PCM


Recording MP3 Bit-rate (Selectable)
Mono
Stereo

160, 128, 96, 64, 32 kbps
320, 256, 192, 128, 64 kbps


Sampling Frequency
44.1/48 kHz


Number of Channels
2 (Stereo), 1 (Mono)


Audio Frequency Response
10 to 20,000 Hz ± 1.0 dB


Signal-to-noise Ratio, IEC-A Weighted
91 dB


Total Harmonic Distortion at 0 VU
0.01%


Dynamic Range
94 dB


Inputs



Balanced Input
Type
Input Sensitivity

XLR (1:GND, 2:HOT, 3:COLD)
+4 dBu/-20dBu/24 kohms


Unbalanced Input
Type
Input Sensitivity

RCA Jack
500 mVrms/22 kohms


Balanced Digital Input
Type
Sampling Frequency
Format

XLR (1:GND, 2:HOT, 3:COLD)
44.1/48 kHz
AES/EBU or SPDIF (IEC 958 Type II)


Unbalanced Digital Input
Type
Input Impedance
Standard Input Level
Sampling Frequency
Format

RCA Jack
75 kohms
0.5 Vp-p
44.1/48 kHz
AES/EBU or SPDIF (IEC 958 Type II)


Outputs



Balanced Output
Type
Level

XLR (1:GND, 2:HOT, 3:COLD)
+18 dBu (+4 dBu Reference)/600 kohms


Unbalanced Output
Type
Standard Level

RCA Jack
2 Vrms (+4 dBu Reference)/10 kohms


Balanced Digital Output
Type
Output Impedance
Standard Output Level
Format

XLR (1:GND, 2:HOT, 3:COLD)
110 ohms
3.5 Vp-p
AES/EBU or SPDIF (IEC 958 Type II)


Unbalanced Digital Output
Type
Output Impedance
Standard Output Level
Sampling Frequency
Format

RCA Jack
75 ohms
0.5 Vp-p
44.1/48 kHz
AES/EBU or SPDIF (IEC 958 Type II)


LAN Interface
Format
Transmission Rate
Connector

10Base-T/100Base-TX
10/100 Mbps
8pin RJ-45


General



Power Requirements
U.S. Model
European Model

AC 120 V 60 Hz
AC100 -240 V 50/60 Hz


Power Consumption
26 W


Environmental Conditions
Operational Temperature
Operational Humidity
Storage Temperature

5-35 °C (41-95 °F)
25 - 85% (No Condensation)
-20 - 60 °C (-4 - 140 °F)


Headphone Output Power
18 mW+ 18 mW/32 ohms


Dimensions
Width
Height
Depth
Weight

483 mm (19.0")
44 mm (1.7")
344 mm (13.5")
3.7 kg (8.2 lbs)


Included Accessories



Power Cord (for U.S.)
1


Power Cord (for Europe)
2


USB Cable
1


Audio Cable
2


CF Door Screw
2


Retainer
1


User Guide
1


CDROM
1
