$3179.00

Save 20.1%, MSRP $3979.00
Free shipping in Canada. Conditions

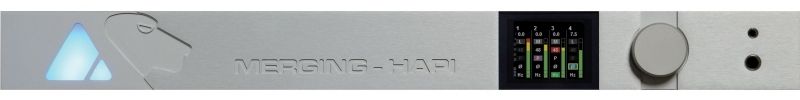

The Hapi base unit includes 8x AES/EBU I/O (4 pairs on 1 DB25), Ravenna/ AES67 I/O, 8 ADAT, or 2 SPDIF I/O and 2x analogue slots



Build a Horus or Hapi unit to fit your exact needs by adding from range of analog and digital option cards. Put small amount of Inputs and outputs in various locations, or stack over 200 I/O (what a fully loaded Horus is capable of) in a single rack. Flexibility and power in any form you need.

2 Option Slots that fit any combination (up to 16 analog ins and outs) of:
- 8 Channel AD Mic/Line Input Cards (AD8D/DP and/or AKD8D/DP)
- 8 Channel DA Line Output Cards (DA8/P)
- 8 Channel Mic/Line Input & 8 Channel Line Out Cards (ADA8)
- The left slot may be fitted with 64 I/O MADI coaxial/optical MADM/MADS (MADM/MADS)

Features

Digital I/O
8 AES/EBU I/O (DUB)
8 ADAT / 2 SPDIF (Switching)
RAVENNA / AES67 (RJ45)
Word Clock I/O

Synchronization I/O
LTC
MIDI
Video Reference

Sample Rate support
44.1 - 384 kHz PCM
DXD and DSD64/128/256

User Interface
Remote control over LAN (CAT5E/CAT6)
Direct access on unit with rotary control

Specifications

Case Material: Powder Coated Steel
Front Panel Material: Brushed Aluminum
Weight (excluding redundant PS): 4.5 kg / 10 lbs
Dimensions (1U rack mounting): 483 x 320 x 44 mm
Voltage (AC): 90V-260V, 47-63 Hz
Voltage (DC): 10-14V
Power Consumption (Max): < 30 Watts
Front Panel TFT size/resolution: OLED (160x128 px)

Headphone Monitor Jacks
Max output Level (Unbalanced) Load = 300 Ohms: +14.5 dBu
Output Impedance: 75
Dynamic Range (A-weighted, typ): 112 dB
THD+N (1 kHz) @ -2 dBFS: < -100 dB (0.001 %)
Gain Range (software controlled): - dB to +12 dB
Gain Step/Precision : 1dB / ±0.05 dB

Connectors
"Sync" Cable (LTC/Video Ref/MIDI): D-Sub 15Pin
LTC In & Out (via "Sync" Cable): Balanced XLR
Video Reference In (via "Sync" Cable): BNC
MTC (I/O via "Sync" Cable): 5-Pin DIN
Word Clock Input (Switchable 75 Termination): BNC, 0.5Vp-p min
Word Clock Output (Zout = 35 ): BNC, 5Vp-p
AES-EBU type / pinout: DB-25 female, AES59/Tascam Digital
ADAT / SPDIF: Optical Toslink
Heaphone Jack 1&2: 6.3 mm(1/4")/3.5mm
RAVENNA Primary / Secondary (GbE): RJ45

Reviews

$3179.00

Save 20.1%, MSRP $3979.00
Free shipping in Canada. Conditions
