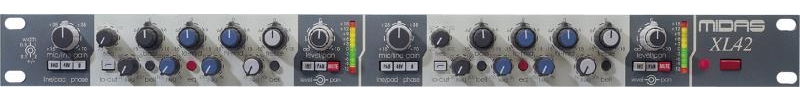

The Midas XL42 is a 1U rack mounted, dual channel creative equaliser incorporating the XL4 four-band parametric equalisation with XL4 mic/line pre-amplifiers and 48V phantom supply. Each channel has input, output and pan rotary controls, 10 segment LED metering plus a switchable insert send and return point, plus DIP switches to enable automute scene control from the automute masters of XL consoles.
The purpose of this ingenious device is threefold: firstly to improve the audio quality of an inferior console by adding Midas EQ to the selected programme; secondly to create custom mixing consoles through the ability to daisy-chain multiple units. When linked together, the combined outputs will sum, producing discrete L&R channels. Finally, if a production requires, for example, 10 channels more than the input capacity of the master console, five XL42's can be fitted in a standard rack together with any required dynamic processing, which can be inserted via the XL42's insert points, thus creating a custom 10 into 2 mixer via the output daisy chain feature. The resulting L&R outputs may then be routed to the master console via any convenient point i.e. a pair of aux returns, group inputs, matrix inputs etc.
As a stand-alone unit, the XL42 is ideally suited to applications requiring a high quality front end, such as stereo recording etc.
Specifications
Input Impedance
Mic 2kOhm Balanced
Mic + Pad 3kOhm Balanced
Link & Insert 20kOhm Balanced
Input Gain (all faders at 0dB)
Mic Continuously variable from +15dB to +70dB
Mic + Pad Continuously variable from -10dB to +45dB
Link & Insert 0dB
Maximum Input Level
Mic +6dBu
Mic + Pad +26dBu
Link & Insert +21dBu
CMR at 1kHz
Mic (gain + 60dB) >70dB
Mic + Pad (gain +35dB) >50dB
Link & Insert >60dB
Frequency Response (20 to 20kHz)
Any input +0dB to -1dB
Noise (20 to 20kHz)
Mic EIN ref. 150 Ohm (gain + 60dB) -129dBu
Transformer Mic Input EIN ref. 150 Ohm (gain + 60dB) -127dBu
System Noise at 0dB (one channel only) -88dBu
System Noise (20 to 20kHz)
Summing Noise (12 channels routed with faders down) -83dB
Line to Mix Noise (12 channels routed at 0dB, pan centre) -81dB
Summing Noise (48 channels routed with faders down) -81dB
Line to Mix Noise (48 channels routed at 0dB, pan centre) -75dB
Distortion at 1kHz
Mic (+ 60dB gain, 0dBu output)
