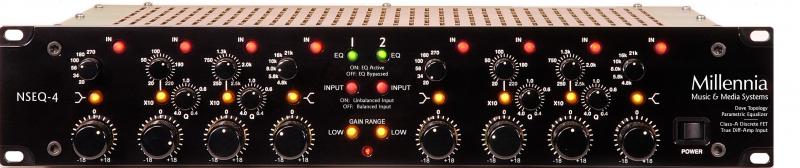

Millennia NSEQ-4

The Millenia NSEQ-4 is a Two Channel Class A Discrete Solid State Parametric Equalizer.

A great sounding EQ! I had the NSEQ-2 which I Liked a lot. I used the solid state mode on most of the tracks I mastered, so once I had heard that the NSEQ-4 came out I was very interested in checking it out. When I hooked it up and worked with it ,I fell in love with it. Its clear, its full and it can really sparkle..
Maor Appelbaum Mastering Engineer

Wonderful wonderful low end..
Sweet, transparent, clean - loved the original NSEQ-2, but this was quite an improvement!
Rafa Sardina, Grammy award winning engineer/producer

The NSEQ-4 has brought new meaning to "elegance" in audio control and sound quality. Where the NSEQ-2 was head and shoulders above many other equalizers in musicality, control, and audio quality, the NSEQ-4 has taken all those attributes to a new level. I ran a 2 vs. 4 test with a solo piano recording: One channel only split to both the 2 and the 4 and returned back to the monitor. I set the same frequency on each EQ and pushed both units to the max at that frequency since I wanted to learn what the worst case scenario might be. With piano, this would usually yield a hopeless result - even the slightest shortcoming will show in most any EQ unit when pushed this way. The NSEQ-4 actually held up quite well to this sort of abuse! Additionally, I found the residual noise level of the NSEQ-4 to be subjectively quite a bit lower than the NSEQ-2. I liked the "character" of the residual noise of the 4 much better. The noise is so low that it is no concern whatsoever in listening or use.
Michael Bishop, Grammy award winning engineer/producer
  • World's first (and only) all-discrete, true differential Class-A input buffer/amplifier.
  • Selectable balanced or unbalanced input.
  • Greatly improved 3rd generation FSA-03 all-discrete EQ amplifier
  • Improved output stage, no muting required (as with Twin Topology)
  • True hard-wire bypass when EQ not selected
  • Upgraded power supply leading to improved sonic performance
  • Fully parametric stereo EQ with unprecedented sonic purity & integrity
  • All discrete J-FET solid state signal path
  • Minimalist design: only one active stage in the audio path
  • Four EQ bands: 20 Hz to 20 kHz center frequency, 0.4 to 4.0 Q
  • Extremely low noise: -106 dBu
  • Constructed for demanding professional applications
  • Ultra-Premium components throughout
  • Gold relays, connectors, switches,
  • Silver Teflon power wiring
  • Mogami Neglex OFC audio wiring
  • Specifications
    "Q" Range:
    Q = 0.4 to 4.0 Adjustable on middle ranges
    Q = 1.0 Fixed on low & high ranges

    Maximum Output Level:
    > + 28 dBu

    Maximum Input Level (EQ Flat):
    + 28 dBu

    Maximum Input Level (EQ Full Boost):
    + 17 dBu

    Frequency Response (+0 / -3 dB):
    Sub 2 Hz to beyond 300 kHz

    Frequency Response, Stereo Deviation:
    < .15 dB

    Noise (All EQ Stages In, Controls Flat):
    -106 dBu

    Maximum Boost (21 Step Detented):
    +20 dB (+10 dB with range switch in)

    Maximum Cut (21 Step Detented):
    -20 dB (-10 dB with range switch in)

    EQ Frequencies:
    Low Range Switch (Centers - Peak/Shelf Selectable): 20, 34, 56, 100, 180, 270
    Low Mid Sweep: 20 Hz - 220 Hz or 200 Hz - 2.2 kHz. 10X Range switch selectable.
    Hi Mid Sweep: 250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz. 10X Range switch selectable.

    High Range Switch (Centers - Peak/Shelf Selectable):
    4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k

    THD + Noise (20 Hz - 30 kHz, All EQ Bands Switched In):
    < .009%, typ < .003 %

    Common Mode Rejection Ratio (10 Hz - 20 KHz, 100 mV C.M.):
    > 60 dB, Typ > 80 dB

    Slew Rate, +27 dBu Out:
    > 50 volts per microsecond

    Main Hard-wire Bypass Switch For Each Channel

    Peak/Shelf Selection On High & Low Range

    Hard-wire Bypass Switching On Individual EQ Bands

    Input Impedance:
    25 kilohms

    Minimum Output Load Impedance:
    50 ohms

    Recommended Load:
    > 500 ohms

    Output Impedance:
    5 ohms

    EQ Amplifiers:
    Pure Class-A Discrete J-FETs

    Power Consumption:
    40 watts maximum

    Power Requirements:
    Selectable: 100-120, 200-240 V ac, 50/60 Hz

    Dimensions/Shipping Weight:
    19" W x 3.5" H x 12.5", 26 lbs.
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the NSEQ-4, please visit the website of Millennia
