Mogami W2997 - 2c. 25awg w/4c. Sig RS422 Digital I/F

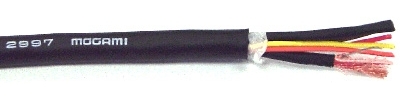

The Mogami Bulk W2997 is RS-422 Balanced Voltage Digital Interface Cable. Available by the spool only. Price per foot.

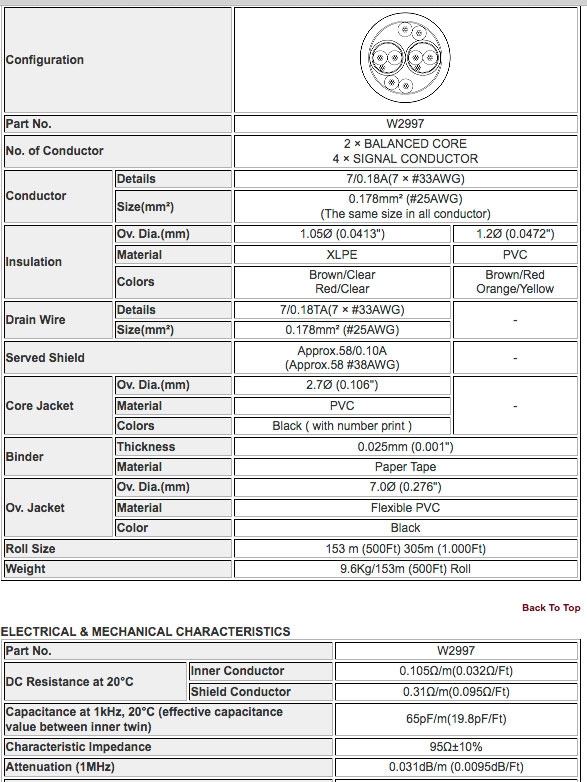

MOGAMI #W2997 is designed to meet EIA Standard RS-422 general applications, with 2 balanced cores and 4 signal conductors. Overall diameter of 7mm (0.276") enables it to fit into most of the D-sub 9-pin connectors available. All the conductors are designed same the size (#25AWG) including the drain wire which can be crimped by the same size contact. Numbering print system on the balanced cores is the same as Mogami snake cables and serves as an efficient identification system together with colour coded remaining four signal conductors.

Available Spool Size:
D - 500 Ft./152 Meters

Available Color:
08 - Gray
This product is not available online. Learn more
Additional information
For more information about the W2997 - 2c. 25awg w/4c. Sig RS422 Digital I/F, please visit the website of Mogami
