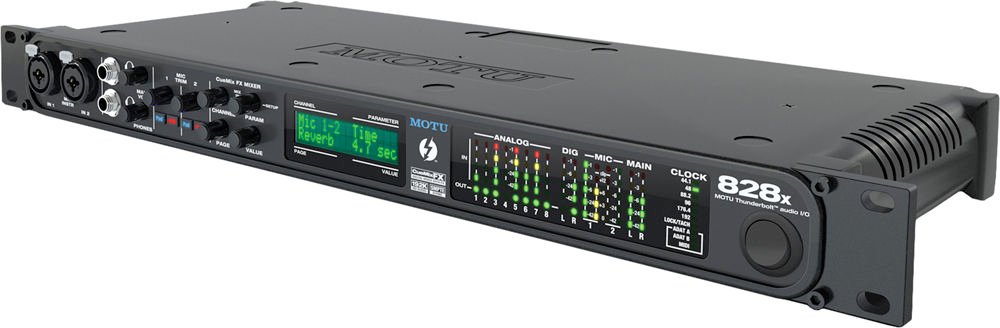

The 828x connects to a Mac or PC with Thunderbolt or USB 2.0 and delivers 28 audio inputs and 30 outputs with DSP effects and mixing.

You can apply 32-bit floating point effects processing to all inputs and outputs, even when operating stand-alone (without a computer). Effects include Classic Reverb, 7-band parametric EQ modeled after British analog consoles, and vintage compression modeled after the legendary LA-2A optical leveling amplifier. Two front-panel mic/guitar combo inputs provide transparent preamps, digitally controlled trim, individual 48V phantom power, 20 dB pad, and V-Limit™, a hardware limiter that helps prevent digital clipping from overloaded input signals as high as +12 dB above zero. All analog inputs have digitally controlled analog trim controls that allow precise adjustments in 1 dB increments.
  • Thunderbolt connectivity - Compatible with Thunderbolt 1 and 2.
  • Hi-speed USB 2.0 connectivity - Compatible with USB 3.0.
  • 58 simultaneous channels - 28 inputs and 30 outputs, including two mic preamps with sends, 8 TRS analog in/out, separate main outs on XLR jacks, two banks of optical, S/PDIF, MIDI in/out, time code in/out, word clock I/O, and two front-panel headphone jacks.
  • CueMix FX - High-powered DSP with mixing and effects on individual ins/outs. Includes classic reverb, modeled analog EQ, and vintage LA-2A compressor.
  • Flexible mic/guitar inputs with preamps - Two front panel combo jacks provide hi-Z 1/4" guitar input or XLR mic input with individual phantom power and pad.
  • Precision Digital Trim - Digitally controlled analog trim on all analog inputs (mic/guitar inputs + quarter-inch TRS inputs) provides accurate adjustments in 1 dB increments.
  • V-Limit overload protection - Hardware-based input limiter on the mic/guitar inputs prevents digital clipping and distortion from overloaded signal levels up to +12 dB over zero.
  • Front-panel control for stand-alone operation - Access any setting in your entire 828x mix directly from the front panel.
  • Foot switch input - Connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software.
  • Direct Digital Synthesis (DDS) - DSP-driven phase lock engine and internal clock source produces imperceptibly low jitter characteristics (below the noise floor), even when the 828x is resolved to an external clock source via SMPTE time code.
  • Time code support - Directly resolves to (or generates) time code via any quarter-inch input or output, without the need for an extra synchronizer.
  • DC-coupled TRS outputs - Use the 828x with Volta (sold separately) to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.
  • Instrument tuner and audio analysis tools - Includes an oscilloscope, real-time FFT, X-Y Plot, and graphic phase analysis.
  • Converters:

    Sample rates:
    44.1, 48, 88.2, 96, 176.4, 192 kHz

    Analog inputs:
    2 x XLR/TRS combo-style mic/guitar inputs
    8 x 1/4" TRS line inputs (balanced/unbalanced)

    Analog outputs:
    2 x XLR balanced main out
    8 x 1/4" balanced TRS line out
    2 x 1/4" TRS stereo headphone

    Digital I/O:
    16 channels of ADAT optical at 1x sample rates
    8 channels of SMUX optical at 2x sample rates
    2-channel TOSlink (optical S/PDIF) up to 96 kHz
    2-channel RCA S/PDIF up to 96 kHz

    Total I/O:
    28 inputs and 30 outputs at 1x sample rates
    20 inputs and 22 outputs at 2x sample rates
    10 inputs and 10 outputs at 4x sample rates

    Computer I/O:
    1 x Thunderbolt (compatible with 1 and 2)
    1 x USB 2.0 (compatible with 3.0)

    Sync I/O:
    1 x SMPTE time code in (LTC)
    1 x SMPTE time code out (LTC)
    1 x word clock in
    1 x word clock out

    Headphone output:
    1 x 1/4" TRS stereo phone (assignable)
    1 x 1/4" TRS stereo phone (mirrors main outs)

    Phantom power:
    2 x individual +48V

    Front panel:
    2 x XLR/TRS combo mic/guitar in
    2 x 1/4" TRS phone
    2 x digital rotary encoders for phone/main volume
    2 x digital rotary encoders for mic trim
    4 x switches for Pad and 48V Phantom
    4 x digital rotary encoders for LCD control
    2 x 16 character LCD
    8 x 4-segment ladder LEDs for 1/4-inch analog in
    8 x activity LED for 1/4-inch analog out
    2 x 4-segment ladder LEDs for RCA S/PDIF in
    2 x activity LED for RCA S/PDIF out
    2 x 10-segment LEDs for mic in with V-Limit
    2 x 5-segment ladder LEDs for main outs
    6 x LED for sample rate indicator
    1 x LED for LOCK/TACH indicator
    2 x activity LEDs for optical bank A/B
    1 x activity LED for MIDI in/out
    1 x AC power switch

    International 100-240V autoswitching supply
    50-60 Hz, 20 Watts
