myMix myMix
UPC/EAN #0837654804483
MPN #MyMix II
Personal monitor mixer with up to 500 channels, stereo effects, EQ, panning, 2 local inputs, SD recording, scalable for live, studio, or worship setups.

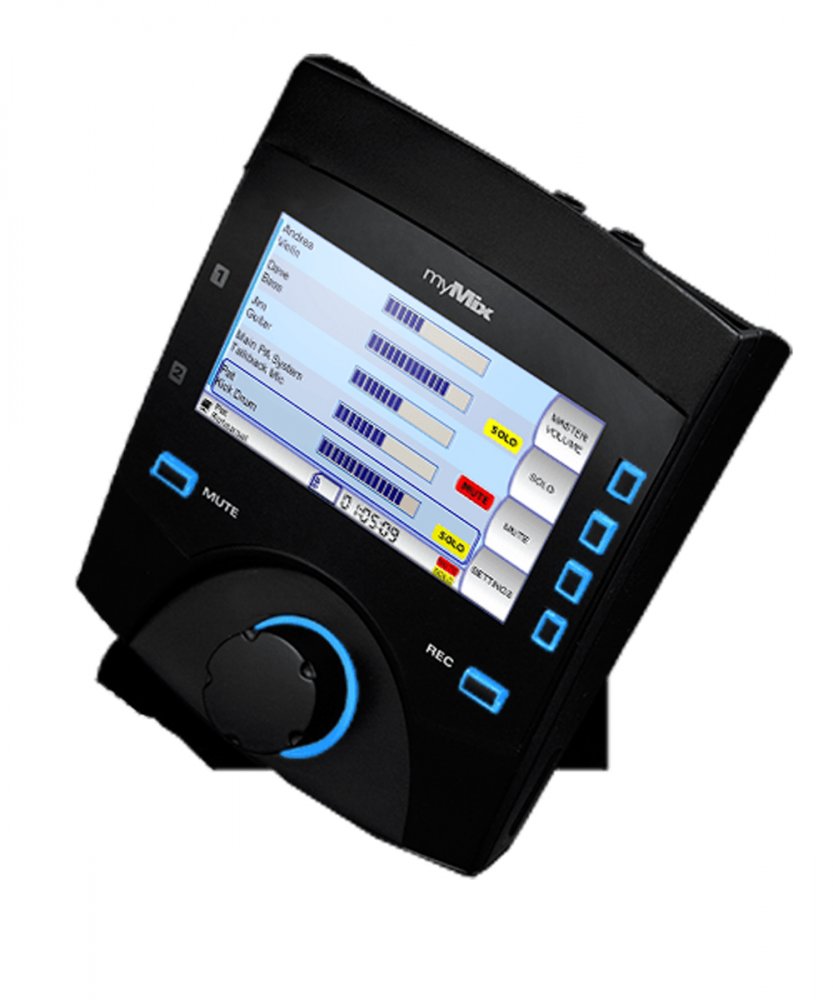

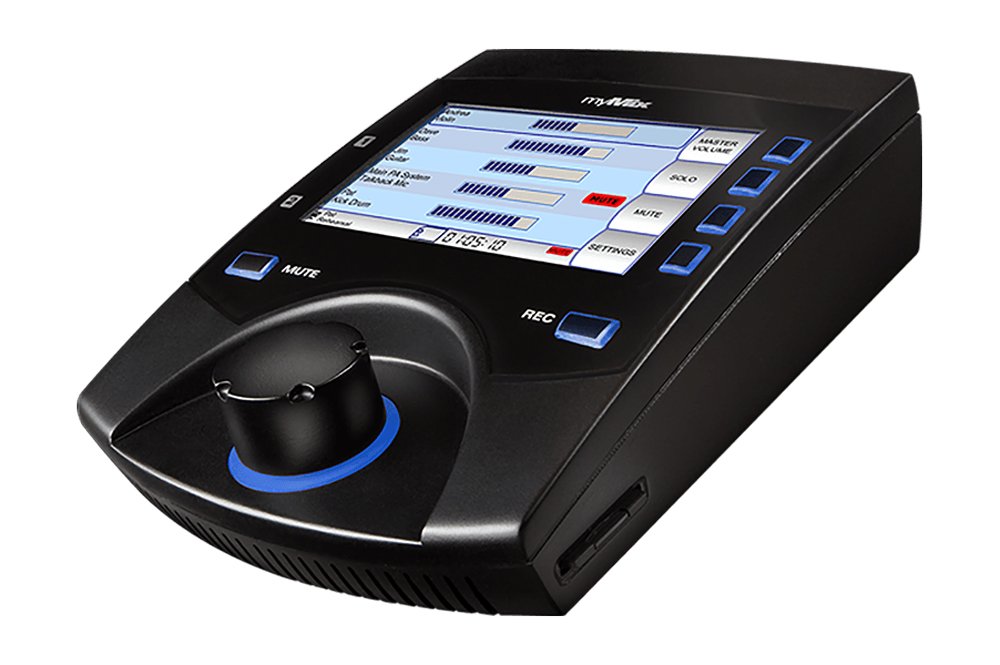

The myMix Personal Monitor Mixer is a versatile audio mixing solution designed to provide musicians and audio professionals with individualized control over their monitor mixes. Operating on a network-based, low-latency platform, myMix supports up to 500 audio channels, allowing each user to create a personalized stereo mix for headphones, in-ear monitors, or powered speakers.
Each myMix unit features an intuitive user interface with a large LCD display, enabling users to select and control up to 16 channels from the available network channels. Adjustments can be made to volume, tone, pan, and effects per channel, with integrated stereo effects enhancing the 3D sound image. The system also offers multi-track recording capabilities, allowing users to record up to 16 tracks directly to an SD card in 24-bit, 48 kHz broadcast WAV format.
For connectivity, myMix provides two local inputs for microphone (XLR) or line-level (1/4" TRS) sources, with available phantom power. The system is scalable, supporting configurations from standalone units to complex setups with up to 250 devices connected via Ethernet. This flexibility makes myMix suitable for various applications, including live sound, studio recording, houses of worship, and theater productions.
By empowering users to control their individual monitor mixes, myMix enhances performance quality and streamlines sound checks, providing a tailored monitoring experience that adapts to diverse audio environments.
Features
Personalized Audio Mixing: Allows users to create custom monitor mixes with up to 16 channels of audio from a networked system.Easy-to-Use Interface: Features a color touchscreen for intuitive navigation and mix adjustments.Flexible Input and Output: Includes two combo mic/line inputs with phantom power and stereo line outputs for headphones or speakers.Network Integration: Connects via Ethernet to other myMix devices for seamless audio sharing and control.Built-In Recording: Records up to 16 isolated audio channels directly to an SD card for easy playback or post-production use.Customizable Settings: Offers volume, pan, and EQ controls for each channel to tailor the mix to individual preferences.Compact and Portable Design: Lightweight and durable for use in studios, live events, or rehearsals.
Specifications
Personalized mixing: Mix up to 16 audio channels from a network of up to 500 channels, with volume, tone, pan, solo, and mute adjustments per channelIntegrated effects: Seven built-in stereo effects, including reverb and delayLocal inputs: Two combination XLR/TRS inputs with adjustable gain for microphone (with phantom power) and line-level sourcesRecording capability: Multi-track recording of up to 16 individual channels plus the stereo mix directly to an SD or SDHC card in 24-bit, 48 kHz WAV formatNetwork integration: Connects via Fast Ethernet (100 Mbps) using Cat 5 cabling, supports systems with up to 250 devicesUser profiles: Stores up to 20 profiles for quick recall of personalized mix settingsOutput options: Balanced 1/4" TRS line outputs and a 3.5mm stereo headphone jackSpecifications:Frequency response: 20 Hz to 20 kHz (+0 dB, -1 dB)THD + N: < 0.022%Signal-to-noise ratio: > 104 dBMaximum input level: Microphone +14 dBu, Line +34 dBuInput impedance: Microphone 2 k?, Line 20 k?Output impedance: Line 75 ? balanced, Headphone suitable for >16 ?Power supply: External 24V DC, 12W adapter or Power over Ethernet (PoE), requiring 15W per unitDimensions: 134mm (W) x 171mm (H) x 60mm (D)Weight: 0.5 kg (1.1 lbs)
