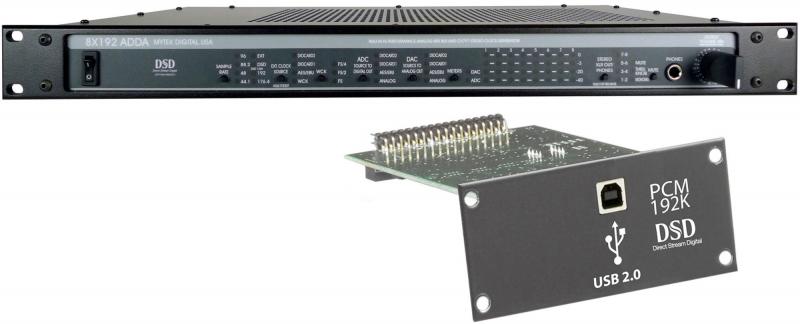

Mytek Digital 8X192 ADDA + USB2.0 DIO Card Bundle

The Mytek 8X192 AD/DA offers PCM A/D and D/A conversion for all sampling rates from 44.1k to 192k. Bundled with USB 2.0 DIO Card.

Mytek 8X192 ADDA is an 8 channel Analog to Digital and an 8 channel Digital to Analog converter maticoulsly designed to provide the highest quality signal path . No compromises have been made to sound quality, and we feel that this is the best sounding Mytek converter to date. In trial tests in comparison with other hi-end brands this unit provided the same o r better sonic performance, which makes it suitable for the most demanding mastering and rec ording applications.

Users choose Mytek converters primarily for their outstanding s onic quality. The sound of Mytek converters can best be described as "transparent". We design our converters to be as faithful to the original signal as possible, rather than adhering the philosophy of some other manufacturers who offer "analog" or "tube" sounding converters. Mytek conv erters are designed to be as close to a straight wire as possible,which is especially evident when used a t full 24/192 or DSD resolution.

On the Mytek website you can find and download various sou nd samples to evaluate the 8X192's sound quality and compare it to the sound of other high en d converter units. Please log onto: http://www.mytekdigital.com to download samples. Thanks to the wide choice of daughter interface cards (DIO Cards), the 8X192 becomes an 8 channe l "digital swiss army knife",which allows the user to adapt converter performance to most studio setups and situations."

In addition to typical converter functions, the Mytek 8X19 2 features a unique analog mix bus designed with transparency in mind, a monitor section with a ma stering grade stepped attenuator, and a hi-end headphone amp.

The built in CX 797 clock generator with multiple wordclock output s is the best source for stable studio house clock, and the 8x192 will perform best using th is internal clock.
Features
  • Digital format conversion between AES and any of two optional DIO Cards installed
  • True precision mastering grade 1dB per step stepped attenuator
  • Analog mix buss assignable to 4 pairs of stereo channels or 8 mono channels
  • Additional to 8 analog outputs, 2 XLR outputs which can be assigned to any pair of channels or Mix Buss output
  • Hi-current (500mA), hi-speed, low distortion transparent headphone amplifier
  • Specifications
    Conversion
    Linear 24 bit PCM
    128x oversampling at 44.1/48k
    64x oversampling at 88.2/96/176.4/192k
    optional
    64xDSD, 128xDSD

    External sync
    Wordclock in and out. Wordlock Out can be used as house clock: 15 LS TTL loads max.

    Wordclock outputs
    6 separate Wordlock Outs
    to be used as house clock: 15 LS TTL loads max.
    Can be terminated.

    Dynamic range
    ADC: 120dB (A weighted)
    DAC: 123dB (A weighted)

    Analog inputs
    +4dBm balanced or unbalanced, 10kOhm, D25

    Analog outputs
    +4dBm balanced or unbalanced, D25 plus 2 XLR

    Digital inputs
    8 Hi-speed (25-200kHz) AES/EBU
    SPDIF D25

    Digital outputs
    8 Hi-speed (25-200kHz) AES/EBUS
    PDIF D25

    The pinouts of D25 I/O
    connectors are compatible with Protools HD (tm) Digisnakes (tm)

    THD + Noise ADC
    ADC: -106dB (<0.0004%) DAC: -110dB (<0.0003%)

    Mains
    100/115V-220/240V 50/60Hz switchable

    Dimensions
    1 rack space wide x 1U high x 9" deep
    14 pounds

    Headphone output
    Hi-current (500mA), hi-speed, stereo

    Stepped attenuator
    24 steps assignable to phones and XLR outs

    Mix buss
    2x4 pairs or 8 mono, true analog mix buss
    Reviews
    Price *
    $4654.00
    $3988.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the 8X192 ADDA + USB2.0 DIO Card Bundle, please visit the website of Mytek Digital
