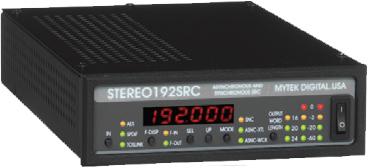

Stereo192 SRC is a two channel hi-end Sample Rate Converter recording and mastering applications.
The main feature of this converter is its outstanding sound quality which makes it suitable for the most demanding projects when preserving the original signal quality is a required. The sonic transparency of this unit far exceeds most of the software SRC algorithms.
The unit can operate in two modes;
Synchronous SRC- where the output clock is synchronized to input clock. This mode is recommended for Digital to Digital transfers.
Asynchronous SRC- where the output clock is generated by internal clock generator. This mode is recommended for Digital to Analog transfers where the SRC proceeds a D/A converter in order to upsample the signal and provide 100% jitter immunity and removal.
Hi-speed (32-200kHz) AES/EBU, SPDIF,Optical
Hi-speed (32-200kHz) AES/EBU and SPDIF
Output sample rates
Any frequency btwn 32-200kHz, can be user set with 1Hz accuracy or standard frequencies can be selected.
24 bit or 16,20 bit
100/115V-220/240V 50/60Hz switchable
Synchronous or Asynchronous
Input sample rates
Any frequency btwn 32-200kHz
1/3 rack space wide x 1U high x 8" deep (5.5"x 1.6"x 8")
Wordclock in and out
Wordlock Out can be used a ultra stable 10ps house clock source with digital FS display
Can be terminated w/ 75 Ohm
